Name: HIKROBOT ID3000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID3013PM-06M-WBN
Availability: InStock

Product introduction

Functional characteristics

Built-in deep learning code reading algorithm, can adapt to a variety of complex working conditions, is highly robust
Excellent Sensor selection, high-speed acquisition of high-quality images
Liquid devices combined with ToF can achieve timely and fast image setting and real-time zoom
Super ease-of-use, automatic tuning with one click
Top and side state Indicator and projection light design, code reading state can be seen on multiple sides,
Rotatable tail line outlet design, flexibly adapt to narrow spaces
Polarization, diffusion, and unobstructed view Fully transparent three-channel multiple Optical lighting, super environmental adaptability
rich IOInterface, can access multiple input and output signals
IP67 protection, not afraid of harsh industrial application environments

Ordering Model

MV-ID3016XM-12M-RBN

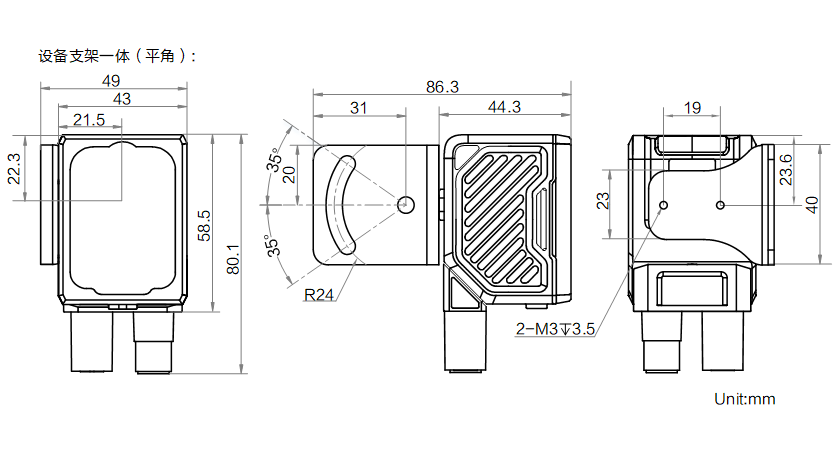

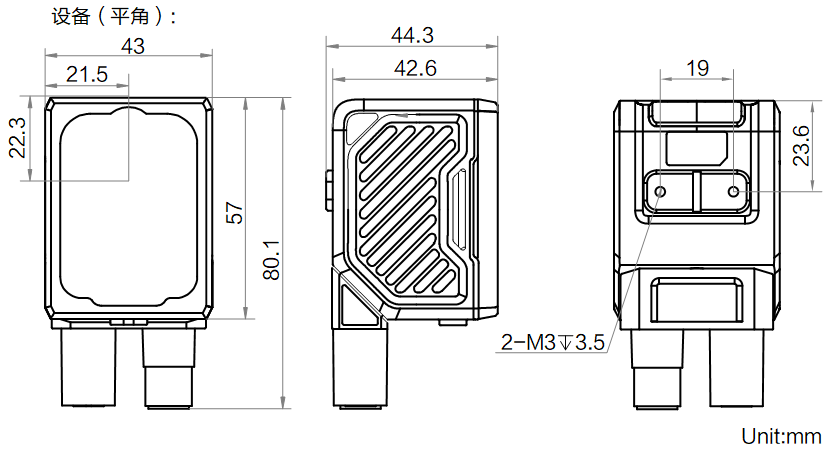

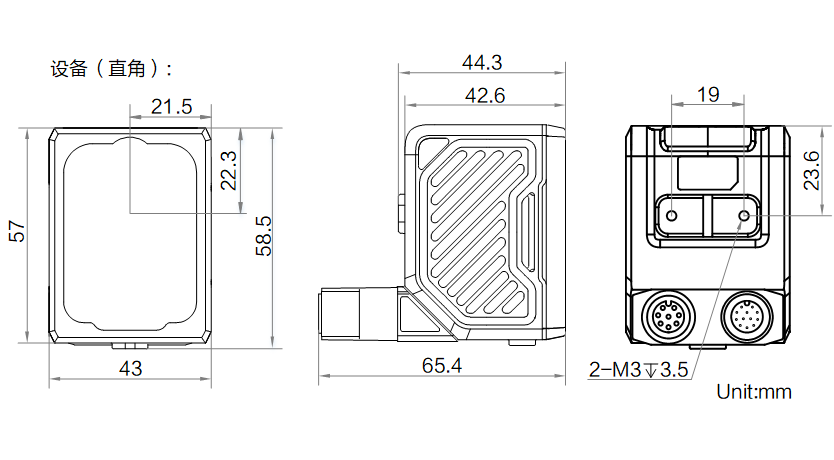

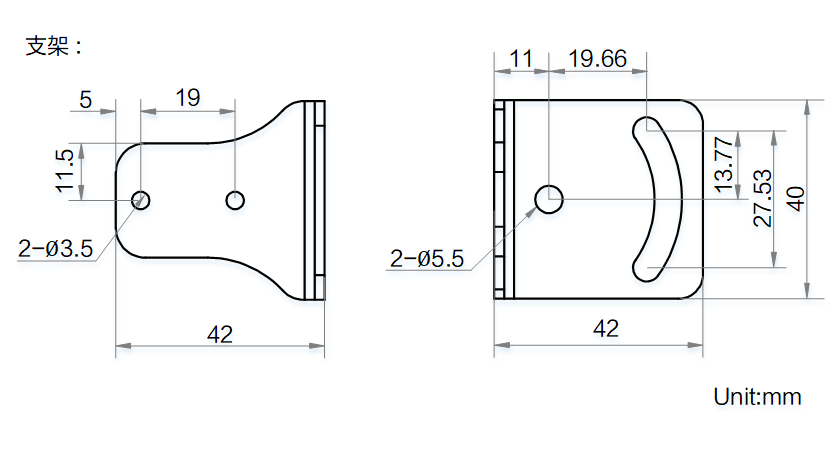

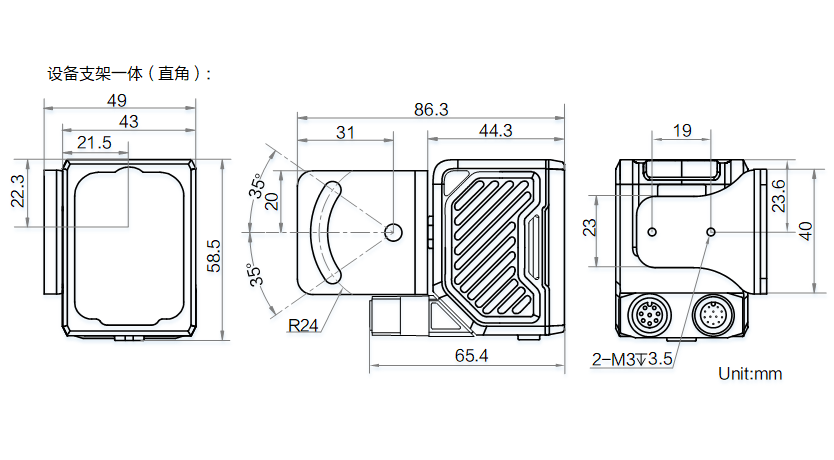

Dimensions

* Product data may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

MV-ID3016XM-12M-RBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-ID3016XM-12M-RBN

Model

Model	MV-ID3016XM-12M-RBN
Name	ID3000mini, 140WResolution, 12 mm Focal Length, red light, mechanical focusing

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,CodaBar,EAN8,EAN13,ITF25,ITF14,MATRIX25,UPCA,UPCE,MSI,CODE11,INDUSTRIAL25,CHINAPOST,PHARMACODE QR Code:QR Code,Data Matrix,Micro QR Stack code:PDF417
Max. Processing Frame Rate	60 fps
Max. Reading Speed	110 yards/second
Sensor	CMOS, global shutter, black and white, 1/2.9 ", 3.45 μm × 3.45 μm
Resolution	1408 × 1024
Exposure Time	25 μs ~ 30000 μs
Gain	0 ~ 24 dB

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EthernetIp, Modbus, FINS, UDP
Digital I/O	12-Pin M12Interface provides Power Supply source and I/O: Contains 3 optocoupler isolated inputs (pins 0/1/2 inputs), 3 optocoupler isolated outputs (pins 3/4/5 outputs), 1 RS-232 Interface Support triggering of the device via the top button
Power Supply	24 VDC
Power Consumption	Average Power Consumption:6.2W@24VDC(enable built-in fill light) Max. Power Consumption:16.8W@24VDC(enable built-in fill light)

Mechanical

Focal Length	12 mm
Field of View	22°(H) x 19°(V)
Lens Mount	M12-Mount, mechanical focusing
Lens Cover	Total transparency + polarization + diffusion Lens Cover
Light Source	Red dot Light Source and white diffuse Light Source, dot Light Source can be selected as white/blue/infrared
Aimer	Orange LED
Indicator	Body Indicator, light board reading results Indicator
Housing Material	metal
Dimensions	Flat angle:80.1 mm × 43 mm × 44.3 mm Right angle:58.5 mm × 43 mm × 65.4 mm
Weight	Approximately 195 g
IP Rating	IP67(with proper Lenses waterproof cover installed)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~95%RH non-condensing
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019)
