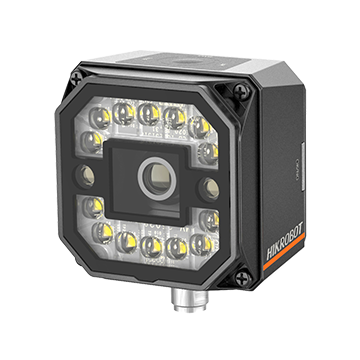

Name: HIKROBOT ID3000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID3013PM-06M-WBN
Availability: InStock

Product introduction

Functional characteristics

Built-in deep learning code reading algorithm, which can adapt to a variety of complex working conditions and is highly robust
Select a high Performance 5 megapixel Sensor, with large field of view coverage and excellent image quality
Single Cables provides Rich IOInterface, can connect multiple input and output signals
14 LED Composite Light Source, can quickly switch polarization and non-polarization modes
Top ring Indicator and bilateral side waist line result Indicator, quickly observe working status
External dual LEDAimer, Convenient installation and alignment

Ordering Model

MV-ID3050PM-16M-WBN

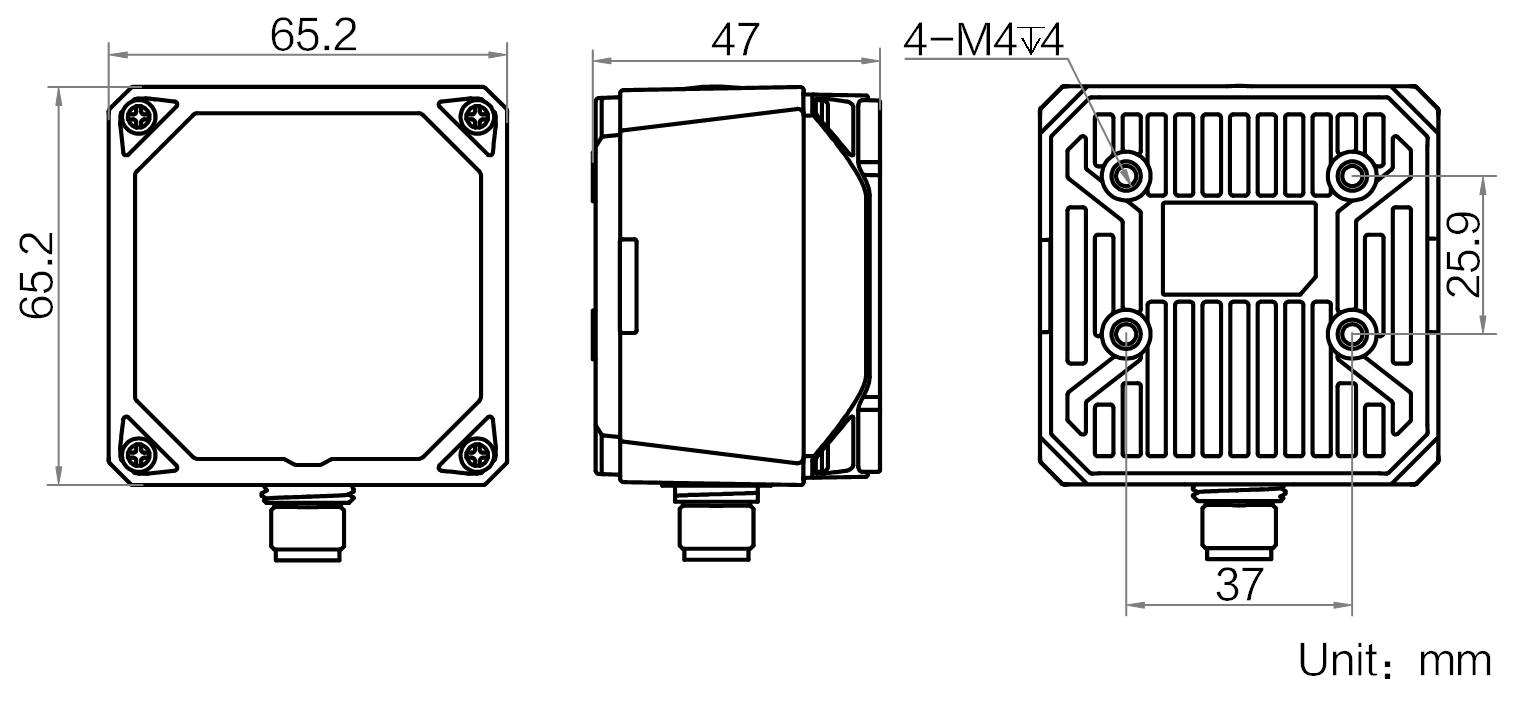

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID3050PM-16M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID3050PM-16M-WBN

Model

Model	MV-ID3050PM-16M-WBN
Name	16mmLenses500WResolution Industrial Intelligent Code Reader

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode, etc. Matrix QR codes:QR Code, Data Matrix, MicroQR, AZTEC, HanXin, etc. Stacked QR codes: PDF417, etc.
Max. Processing Frame Rate	50 fps
Max. Reading Speed	60 codes/second
Sensor	Global shutter, black and white, 1/1.7 ", 3.4 μm × 3.4 μm
Resolution	2432 × 2048
Exposure Time	60 μs ~ 1 sec
Gain	0 dB ~ 18 dB

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Communication Protocol	SmartSDK,TCP Client,Serial,FTP,TCP Server,Profinet,Melsec/SLMP,EtherNet/IP,ModBus,UDP,FINS
Digital I/O	17-pin M12Interface Power Supply source and I/O: Contains 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1 RS-232 input, 1 RS-232 output
Power Supply	24 VDC
Power Consumption	Average Power Consumption:9 W@24 VDC(enabling built-in fill light) Max. Power Consumption: 48W@24VDC (enable built-in fill light)

Mechanical

Focal Length	16 mm
Field of View	28° (H) × 24° (V)
Lens Mount	M12-Mount, mechanical focus
Lens Cover	Semi-bias, optional full bias/transparent/diffuse/infrared long-wave
Light Source	white light, optional red/blue/red blue/blue/infrared/ultraviolet light
Indicator	Power Supply Indicator PWR, Network Indicator LNK/ACT, Status Indicator STS, results display Indicator OK/NG
Housing Material	Metal
Dimensions	65.2 mm×65.2 mm×47 mm
Weight	Approximately 280 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~95%RH No condensation
Vibration Resistance	10 Hz ~ 55 Hz, full amplitude 1.5 mm X, Y, Z for 2 hours in each direction (IEC 60068-2-6: 2007\GB/T2423.10-2019 )
Shock Resistance	30 g / 11 ms, half sine wave, six axes, 500 shocks in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019 )
