HIKROBOT ID6000 Series Logistics Code Readers

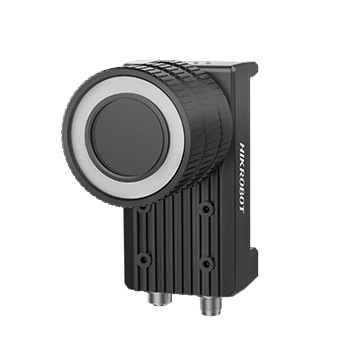

MV-FS2000M-HVS

5440 × 3648, Black and white

Consulting quotation
MV-FS2000M-HVS

Product introduction

Functional characteristics

  • Provides a 20MP ultra-high Resolution specification, covering a large field of view, and can be adapted to medium-and low-speed sports scenarios

  • Built-in Logistics dedicated deep learning algorithm, which can deal with various types of Distortion, wrinkles, dirt, damaged barcodes in Logistics scenarios

  • Gigabit transmission, supports all Normal image output and splicing, supports multiple downsampling

  • cooperates with AGV optimized transmission protocol and trigger enable, supports face sheet recognition and code positioning filtering, supports confidence setting

  • IP67 protection, We are not afraid of the harsh industrial application environment



Ordering Model

MV-FS2000M-HVS


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-FS2000M-HVS

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

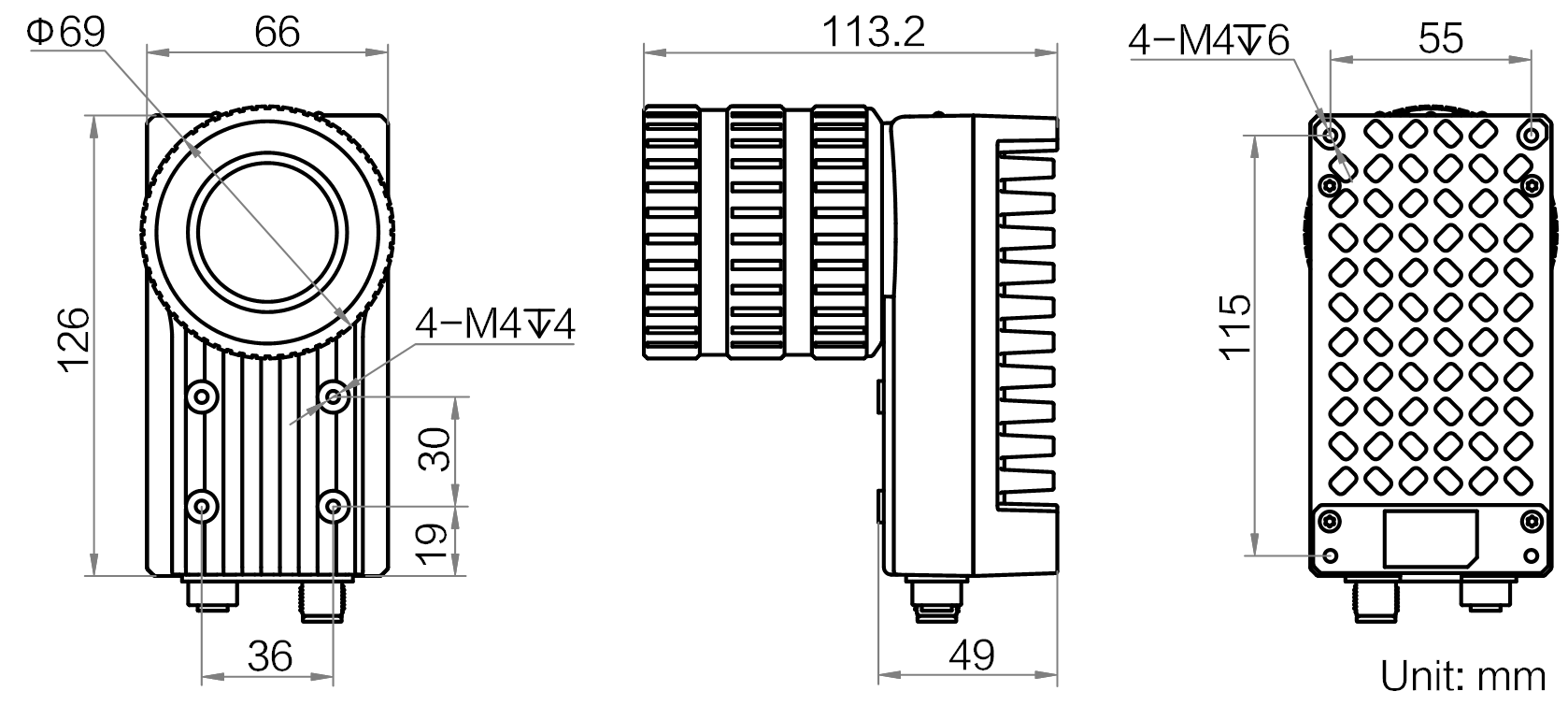

Dimensions

Overall size

Detailed parameters

Ordering Model MV-FS2000M-HVS
Product Model MV-FS2000M-HVS
Resolution 5440 × 3648
Max. Reading Speed 60 yards/second
Max. Processing Frame Rate 20 fps
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
