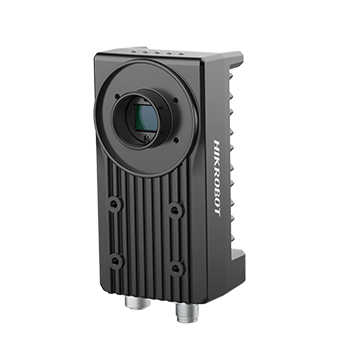

HIKROBOT ID6000 Series Logistics Code Readers

MV-ID6200EM-00C-NNG

5440 × 3648, Black and white

Consulting quotation
MV-ID6200EM-00C-NNG

Product introduction

Functional characteristics

  • Built-in deep learning code reading algorithm, which can deal with complex scenes such as Distortion, wrinkles, ink spills, and dirt

  • Using Sony's excellent ultra-high Resolution sensor, the horizontal Resolution can reach 5K pixels, and the bottom horizontal field of view can cover 1-meter conveyor line

  • Using a single Camera can support rapid identification of multiple barcodes in a large field of view

  • Supporting networking, and building a multi-camera fusion system

  • Easy to set up and debug, The dedicated Logistics code-reading Light Source can complete dynamic DWS applications of 1.8m/s



Ordering Model

MV-ID6200EM-00C-NNG


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID6200EM-00C-NNG

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

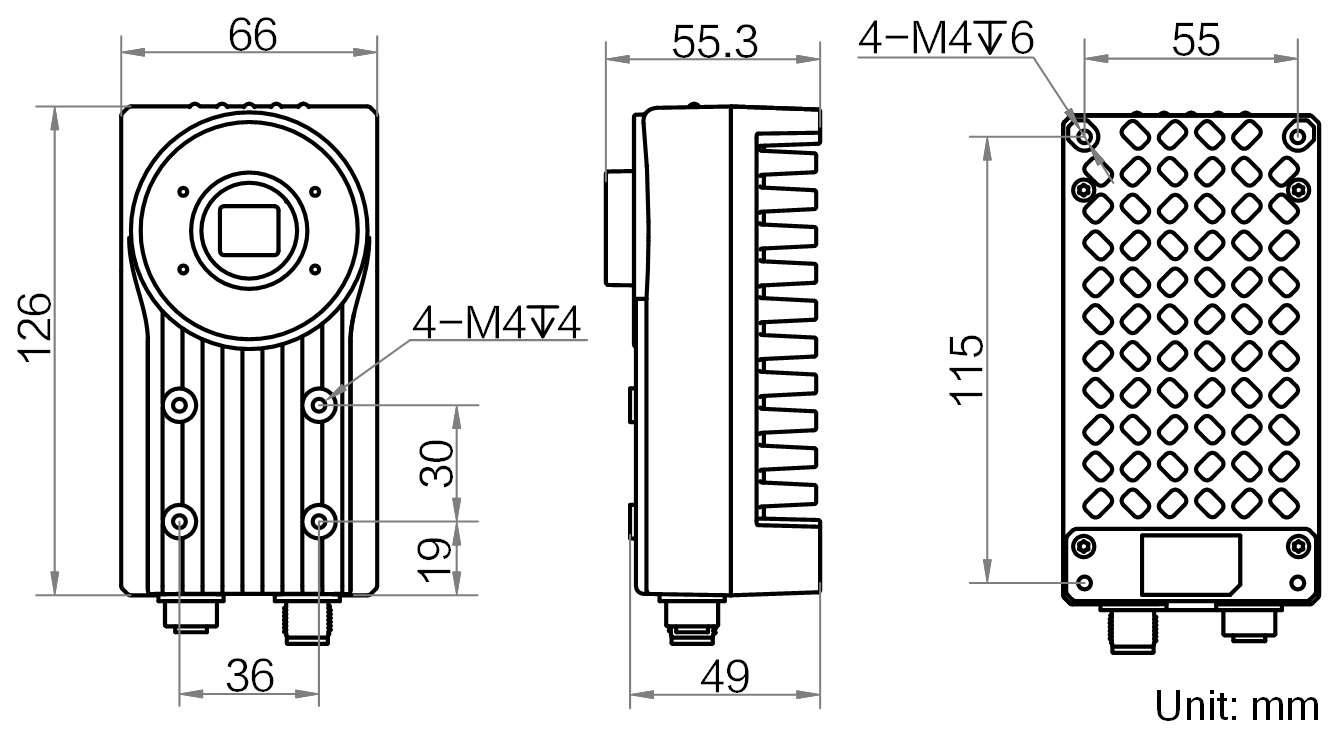

Overall size

Detailed parameters

Ordering Model MV-ID6200EM-00C-NNG
Product Model MV-ID6200EM-00C-NNG
Resolution 5440 × 3648
Max. Reading Speed 36 yards/second
Max. Processing Frame Rate 12 fps
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
