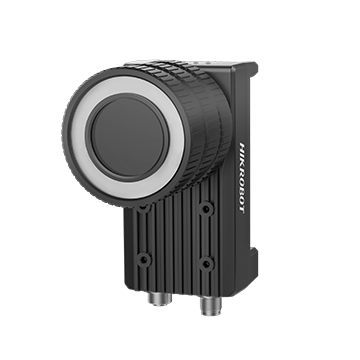

Name: HIKROBOT ID6000 Series Logistics Code Readers
Brand: HIKROBOT
SKU: MV-ID6120PM-00C-NNG
Availability: InStock

Product introduction

Functional characteristics

Provides a 20MP ultra-high Resolution specification, covering a large field of view, and can be well adapted to medium and high-speed DWS scenarios
Provides a special deep learning algorithm for Logistics to deal with various types of Distortion, wrinkles, dirty, damaged barcodes in Logistics scenarios
Gigabit transmission, supports original image output and archiving
Supports networking, and completes the construction of a multi-code reader system through the Code Reading Platform
IP67 protection. We are not afraid of the harsh industrial application environment

Ordering Model

MV-ID6200M-00C-NNG

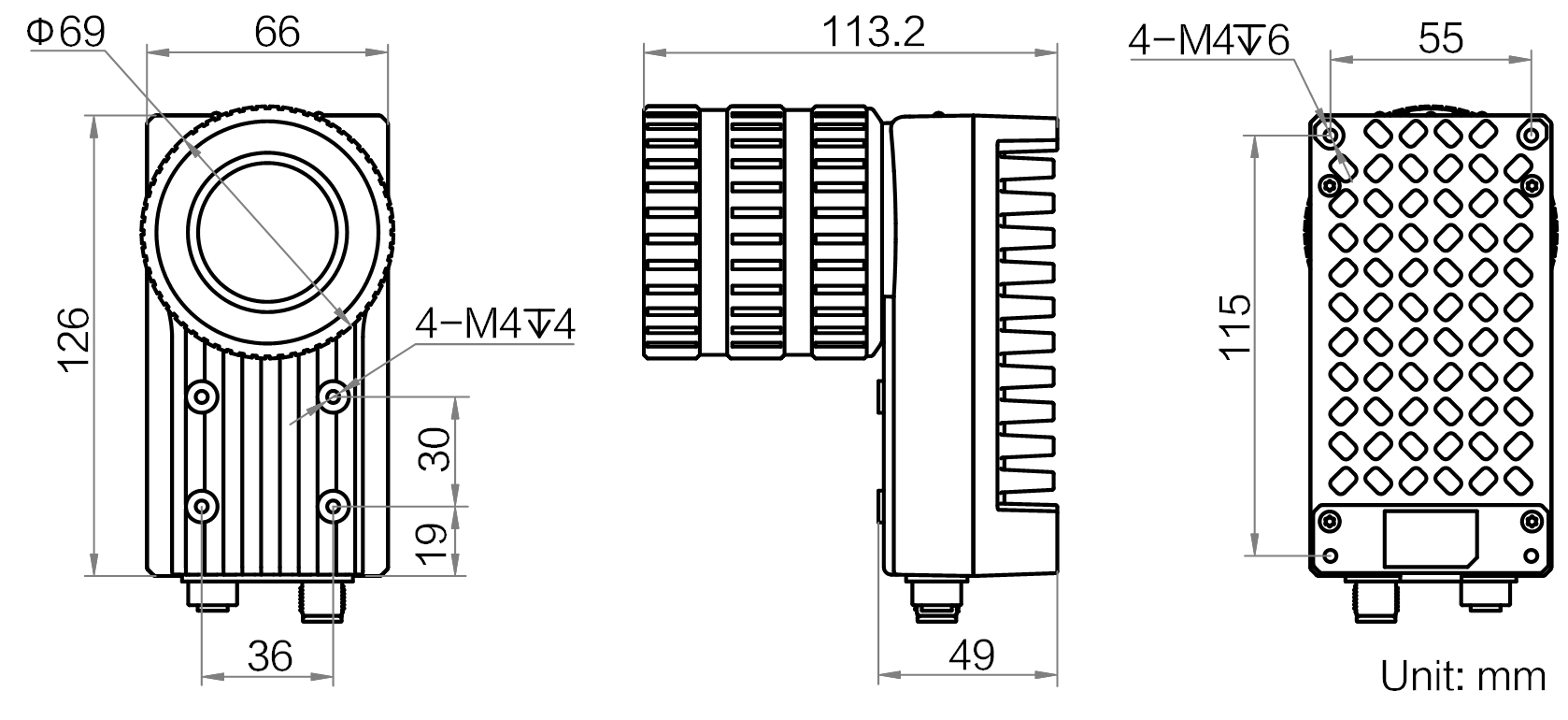

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID6200M-00C-NNG

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID6200M-00C-NNG

Model

Model	MV-ID6200M-00C-NNG
Name	20 megapixel Logistics code reader

Performance

Barcode Type	One-dimensional codes:Code 39,Code 128,Code 93,ITF25,CodaBar, EAN8, EAN13,UPCA,UPCE,ITF14, etc. Matrix QR Code:QR Code,Data Matrix, etc. Stacked QR code:PDF417
Max. Processing Frame Rate	20 fps
Max. Reading Speed	60 codes/second
Sensor	Rolling shutter, black and white, 1 ", 2.4 × 2.4 μm
Resolution	5440 × 3648
Exposure Time	16 μs ~ 0.5 sec
Gain	0 dB ~ 40 dB

Electrical

Data Interface	Gigabit EtherNet(1000 Mbit/s)
Communication Protocol	SmartSDK,TCP Client,Serial,FTP,TCP Server
Digital I/O	12-pin M12Connector Provides Power Supply source and I/O, including 3 optocoupler isolated inputs (LineIn 0/1/2), 3 optocoupler isolated outputs (LineOut 3/4/5), 1-way RS-232
Power Supply	12 ~ 24 VDC
Power Consumption	Max. Power Consumption:17 W@24 VDC;Max. Power Consumption:12 W@24 VDC

Mechanical

Lens Mount	C-Mount
Light Source	Does not include its own Light Source
Lens Cover	Contains Lens Cover
Indicator	Power Supply Indicator PWR, Network Indicator LNK/ACT, User Indicator U1/U2
Dimensions	126 mm × 66 mm × 113.2 mm
Weight	About 750 g
IP Rating	IP67 (With the Lenses waterproof cover installed correctly)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH No condensation
Vibration Resistance	10 Hz ~ 55 Hz, full amplitude 1.5 mm X, Y, Z for 2 hours in each direction ( IEC 60068-2-6: 2007\GB/T 2423.10-2019 )
Shock Resistance	30 g / 11 ms, half sine wave, six axes, 500 shocks in each axial direction ( IEC 60068-2-27\GB/T 2423.5-2019 )
