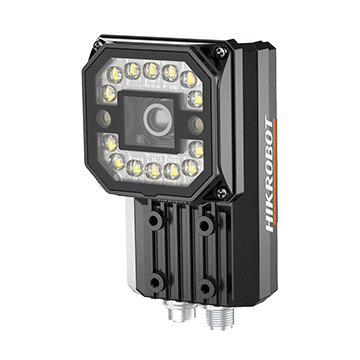

Name: HIKROBOT ID5000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID5050XM-08M-RBN
Availability: InStock

Product introduction

Functional characteristics

Select a high Performance 5 megapixel Sensor, with large field of view coverage and excellent image quality
Built-in deep learning code reading algorithm, which can adapt to a variety of complex working conditions and is highly robust
Combined with mechanical Focus Lenses, automatic focus, easy debugging
Support coding level scoring, verify QR code printing quality
Integrated shunt controllable lighting module, flexible application
IP67 protection, We are not afraid of the harsh industrial application environment

Ordering Model

MV-ID5050M-25S-WBN

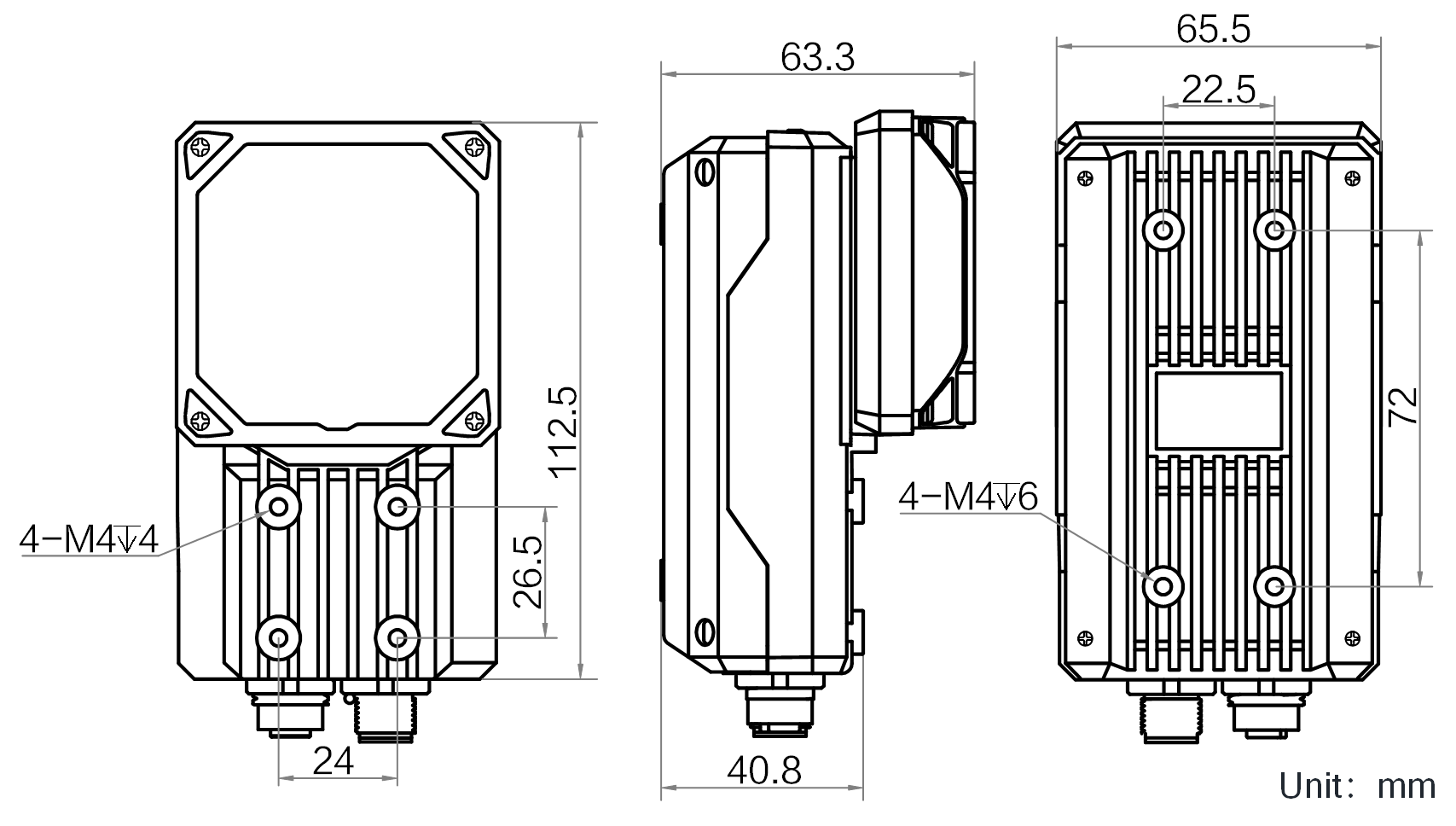

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID5050M-25S-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID5050M-25S-WBN

Model

Model	MV-ID5050M-25S-WBN
Name	ID5000 Series 5MP, 25mm Full-Function Industrial Code Reader

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128(including GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode, etc. Matrix QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin, etc. Stacked QR codes: PDF417, MicroPDF417
Max. Processing Frame Rate	40 fps
Max. Reading Speed	90 codes/second
Sensor	Global shutter, black and white, 1/1.7 ", 3.2 μm × 3.2 μm
Resolution	2560 × 2048
Exposure Time	60 μs ~ 1 sec
Gain	0 dB ~ 18 dB

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Digital I/O	12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (LineIn 0/1/2), 3 optocoupler isolated outputs (LineOut 3/4/5), 1 RS-232 input, 1 RS-232 output
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 15W@24 VDC(built-in fill light is enabled) Max. Power Consumption: 60W@24VDC (enabling built-in fill light)

Mechanical

Focal Length	25 mm
Field of View	18° (H) × 14° (V)
Lens Mount	M12-Mount, mechanically focusing
Lens Cover	Semi-polarized Lens Cover, optional transparent and fully polarized Lens Cover
Light Source	White Light Source, optional red, blue, infrared or ultraviolet light
Indicator	Power Supply Indicator PWR, Network Indicator LNK/ACT, User Indicator U1/U2
Housing Material	Metal
Dimensions	112.5 mm × 65.5 mm × 63.3 mm
Weight	Approximately 450 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95% RH No condensation
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in X, Y, and Z directions (IEC 60068-2-6: 2007\GB/T2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019)
