Name: HIKROBOT ID5000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID5050XM-08M-RBN
Availability: InStock

Product introduction

Functional characteristics

Select a 6MP high Performance rolling shutter Sensor for excellent image quality
Built-in deep learning code reading algorithm, which can adapt to a variety of complex working conditions and is highly robust
Provide a variety of Lens Mount, optional mechanical focusing Lenses, automatic focusing, easy debugging
Support TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other Communication Protocols
Integrated shunt controllable lighting modules, choose a variety of
IP67 protection, We are not afraid of the harsh industrial application environment

Ordering Model

MV-ID5060M-08S-WBN

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID5060M-08S-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

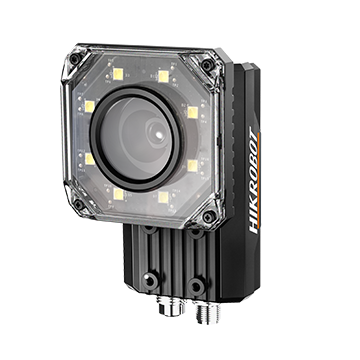

Ordering Model MV-ID5060M-08S-WBN

Model

Model	MV-ID5060M-08S-WBN
Name	8mm Mechanical Focusing Lenses 6 megapixel Full-Function Industrial Code Reader

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,CodaBar, EAN8, EAN13,UPCA,UPCE, ITF14, ITF25,Matrix 25,MSI,China Post,Code 11, etc. QR code:QR,DM, etc. Stacking codes: PDF417, etc.
Max. Processing Frame Rate	30 fps
Max. Reading Speed	90 codes/second
Sensor	Rolling shutter, black and white, 1/1.8 ", 2.4 μm × 2.4 μm
Resolution	3072 × 2048
Exposure Time	16 μs ~ 1 sec
Gain	0 dB ~ 40 dB

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Communication Protocol	SmartSDK,TCP Client,Serial,FTP,TCP Server,Profinet,Melsec/SLMP,Ethernet/IP,ModBus,FINS
Digital I/O	12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (LineIn 0/1/2), 3 optocoupler isolated outputs (LineOut 3/4/5), 1 RS-232 input, 1 RS-232 output
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 18W@24VDC (enabling built-in fill light) Max. Power Consumption: 20W@24VDC (enabling built-in fill light)

Mechanical

Focal Length	8 mm
Field of View	48°(H) x 33°(V)
Lens Mount	M12-Mount, mechanical focus
Lens Cover	transparent Lens Cover, optional polarized Lens Cover
Light Source	white light, optional red, blue or infrared light
Indicator	Power Supply Indicator PWR, Network Indicator LNK/ACT, User Indicator U1/U2
Housing Material	Metal
Dimensions	118.7 mm × 78 mm × 73.2 mm
Weight	Approximately 520 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95% RH No condensation
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in X, Y, and Z directions (IEC 60068-2-6: 2007\GB/T2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019)
