Name: HIKROBOT ID5000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID5050XM-08M-RBN
Availability: InStock

Product introduction

Functional characteristics

Select a 12MP high-performance global shutter Sensor for high-speed image data acquisition and excellent image quality
Built-in deep learning code reading algorithm, which can adapt to a variety of complex working conditions and is highly robust
Support coding level scoring, check bar code printing quality
Support TCP, Serial, FTP, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS and other Communication Protocols
IP67 protection, We are not afraid of the harsh industrial application environment

Ordering Model

MV-ID5120XM-00C-NNN

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID5120XM-00C-NNN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

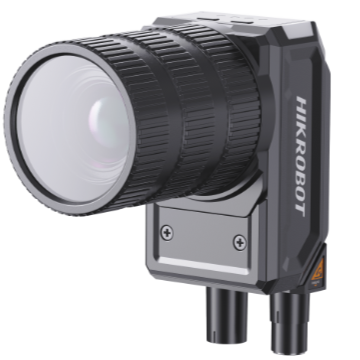

Ordering Model MV-ID5120XM-00C-NNN

Model

Model	MV-ID5120XM-00C-NNN
Name	1200W global compact industrial code reader, C-port, no Light Source, no Lenses

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128(including GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode, etc. QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin, etc. Stack code:PDF417, MicroPDF417
Max. Processing Frame Rate	40 fps
Max. Reading Speed	84 yards/second
Sensor	Global shutter, black and white, 1.1 ", 3.45 μm × 3.45 μm
Resolution	4096 × 3072
Exposure Time	35 μs ~ 1 sec
Gain	0 dB ~ 37 dB

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Digital I/O	12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (LineIn 0/1/2), 3 optocoupler isolated outputs (LineOut 3/4/5), 1 RS-232 input, 1 RS-232 output Support device triggering and one-click tuning via the top button
Power Supply	24 VDC
Max. Power Consumption	Average Power Consumption:8 W@24 VDC Max. Power Consumption:14.4 W@24 VDC

Mechanical

Lens Mount	C-Mount
Light Source	Does not include Light Source
Lens Cover	Transparent Lens Cover
Indicator	Power Supply Indicator PWR, Network Indicator LNK/ACT, User Indicator U1/U2
Housing Material	metal

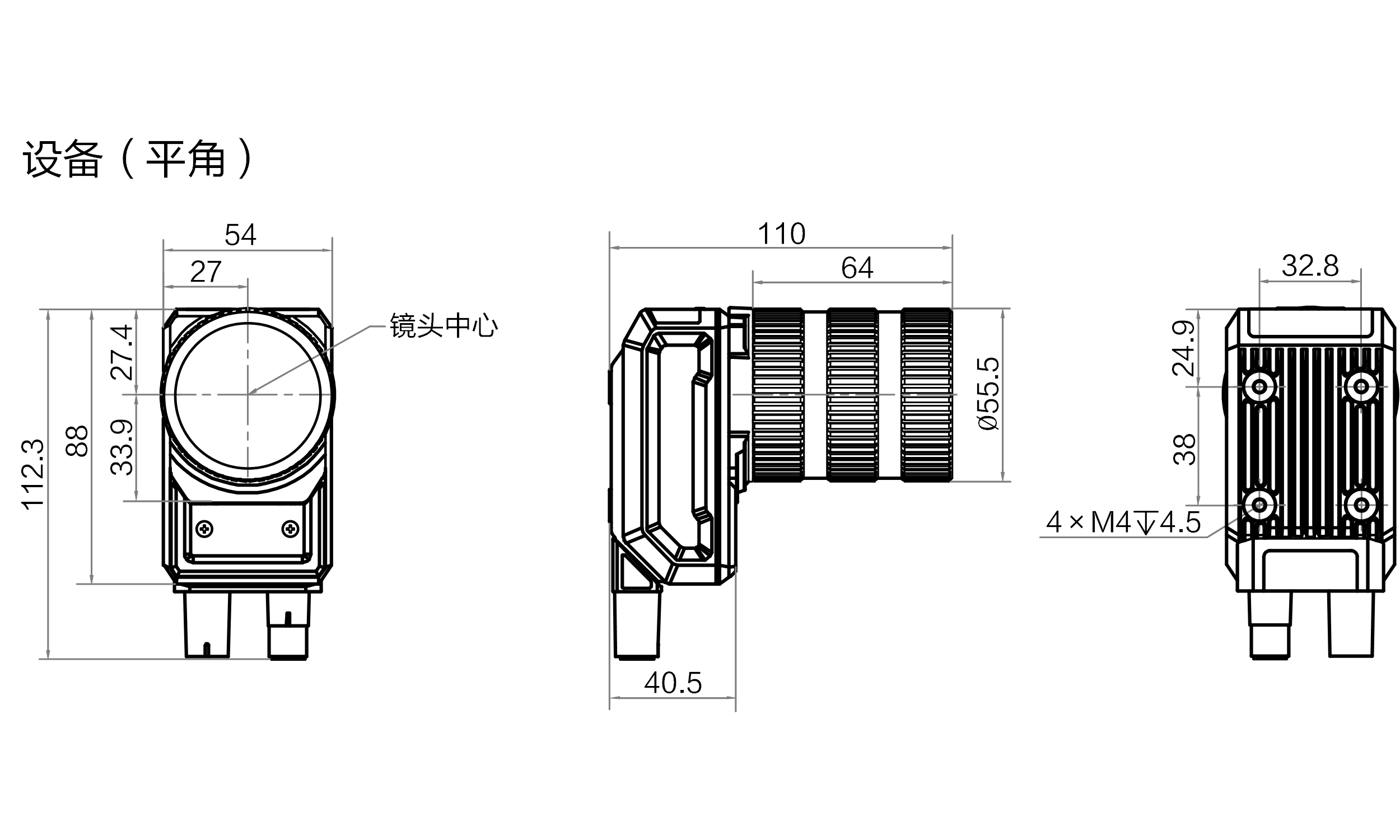

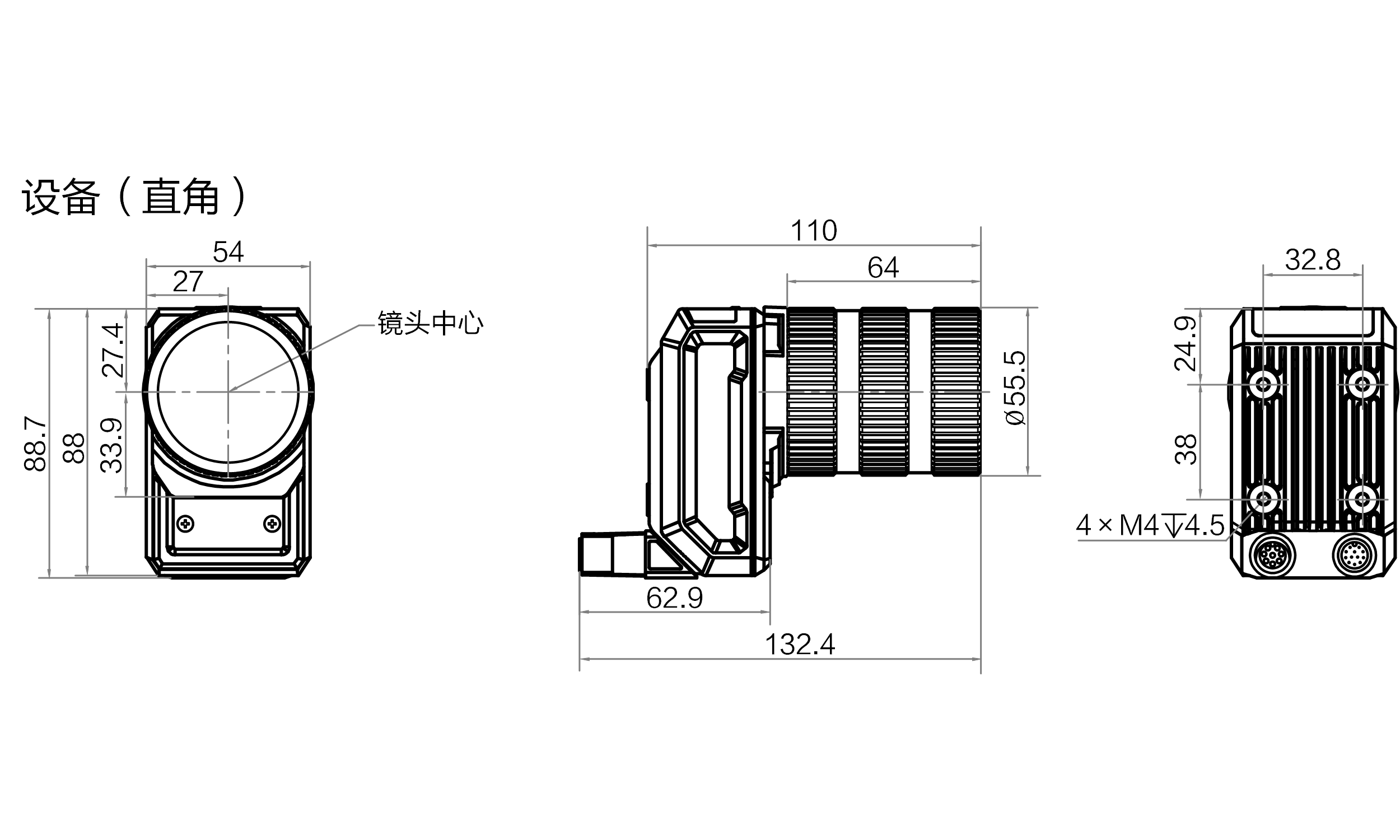

Dimensions	Straight angle:112.3 mm × 54 mm × 110 mm Right angle:88.7 mm × 54 mm × 132.4 mm
Weight	Approximately 370 g
IP Rating	IP67(with proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019)
