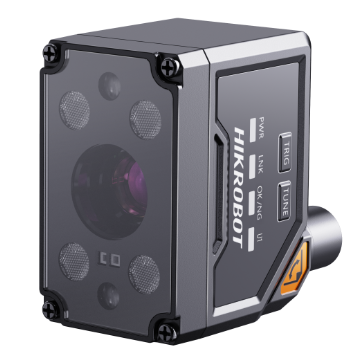

Name: HIKROBOT ID2000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID2013XM-08L-RBN
Availability: InStock

Product introduction

Functional characteristics

Highly robust algorithm accurately identifies difficult barcodes such as stains, deflections, low contrast, and metal radium engraving
Integrated digital wide dynamic (WDR) image processing algorithm, coupled with 4-channel Light Source control and rich Optical accessories, the barcode details are clearer
Modular assembly, rotating tails, Cable separation and multi-sided installation interfaces can easily cope with small spaces
Supports multiple isolated IO and multiple industrial Communication Protocols, Seamless integration of various automation systems
When used with the IDMVS client, it supports functions such as autofocus and one-click tuning. It is convenient and fast to debug

Ordering Model

MV-ID2023XM-12L-RBN

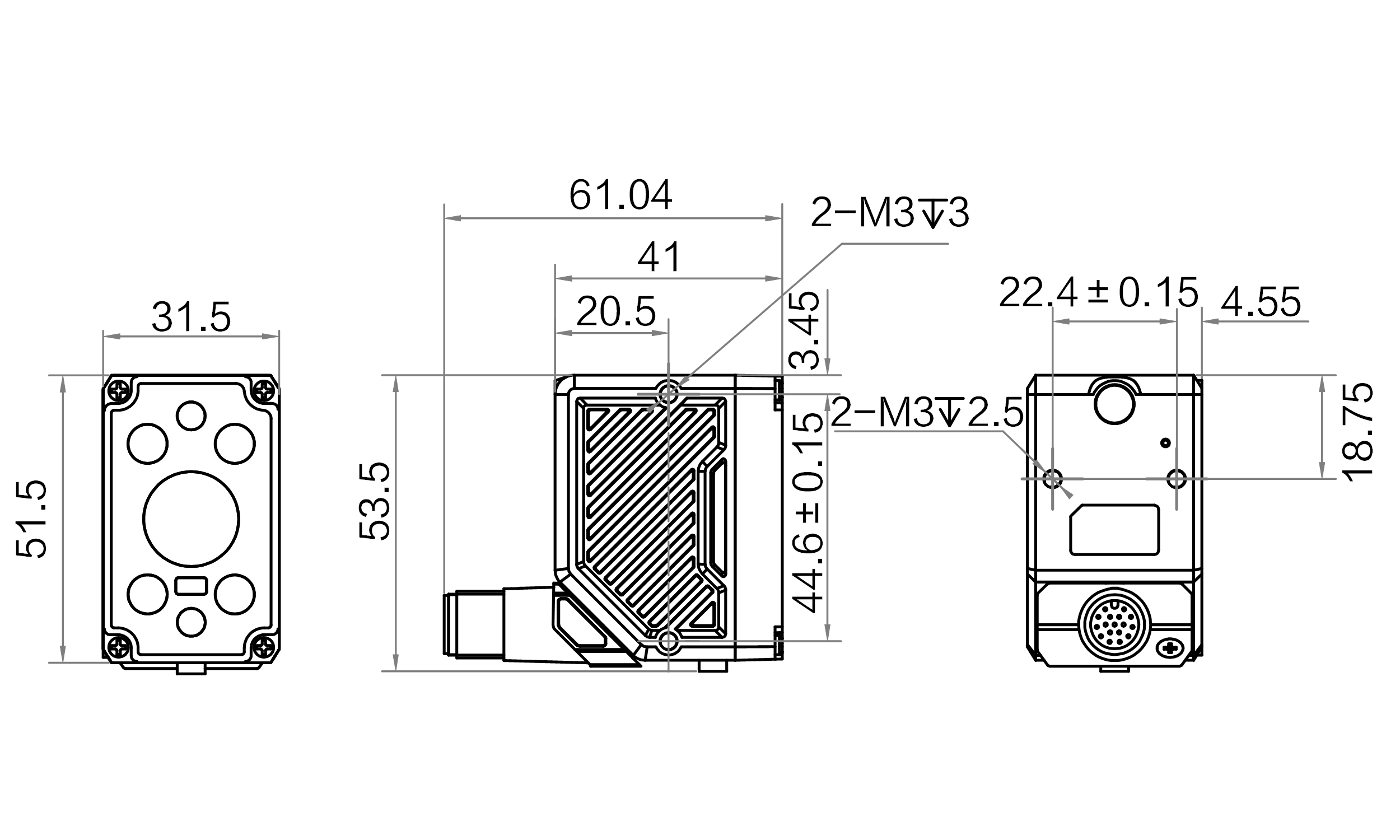

Dimensions

* The data involved in the product may be caused by environmental factors. Differences , and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID2023XM-12L-RBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

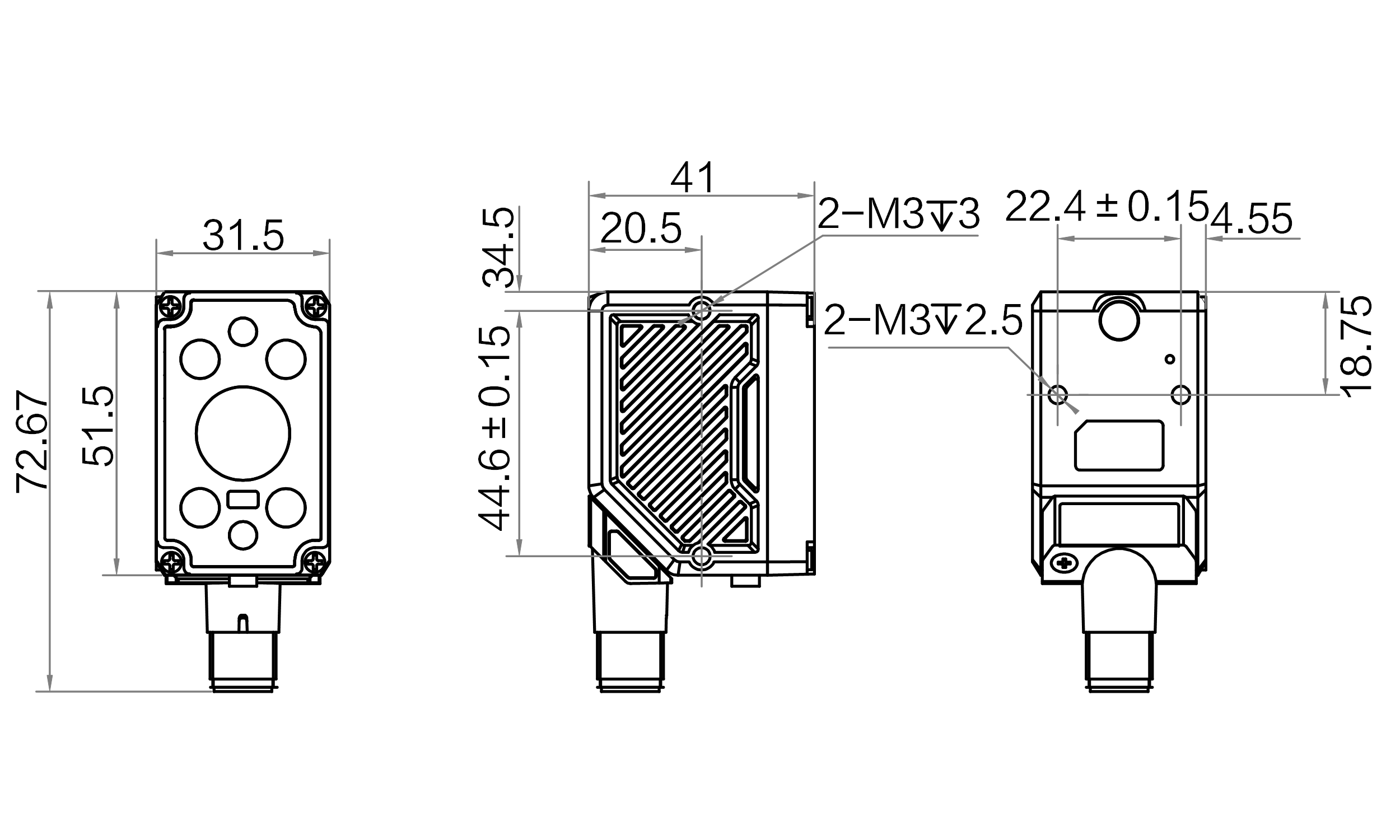

Dimensions

Detailed parameters

Ordering Model MV-ID2023XM-12L-RBN

Model

Model	MV-ID2023XM-12L-RBN
Name	240WResolution, liquid 12 mm Focal Length, red light basic Light Source, semi-polarized Lens Cover, net-port industrial code reader

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128(including GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode(single and dual tracks) Matrix QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin Stacked QR codes:PDF417, MicroPDF417
Max. Processing Frame Rate	60 fps
Max. Reading Speed	80 yards/second
Sensor	Global shutter, black and white, 1/3.52", 2.2umx2.2um
Resolution	1920 × 1280
Exposure Time	36 μs ~ 100 ms
Gain	0 dB ~ 48 dB

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Digital I/O	17-Pin M12 Interface provides Power Supply source and I/O: contains 2 isolated inputs (LineIn 0/1), 2 isolated outputs (LineOut 3/4), and 1 RS-232. It supports triggering of the device via side buttons
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 5W@24VDC (enable built-in fill light) Max. Power Consumption: 12W@24VDC (enable built-in fill light)

Mechanical

Focal Length	12 mm
Field of View	19°(H) x 13°(V)
Lens Mount	D14-Mount, liquid focusing
Lens Cover	Semi-polarized Lens Cover, optional transparent and fully polarized
Light Source	Standard red (Wavelength620 ~ 632 nm), optional white (Color Temperature 6500K), blue (Wavelength464 ~ 476 nm), red and blue dual-color (Wavelength620 ~ 632 nm & 464 ~ 476 nm), infrared (Wavelength840 ~ 870 nm), ultraviolet (Wavelength360 ~ 370 nm)
Aimer	2 green LEDs
Indicator	Power Supply Indicator PWR, Network Indicator LNK, Code Reading Indicator OK/NG, User Indicator U1
Housing Material	metal
Dimensions	Flat angle:72.7 mm × 31.5 mm × 41 mm Right angle:51.5 mm × 31.5 mm × 61 mm
Weight	118 g
IP Rating	IP65
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019)
