HIKROBOT Frame Grabbers

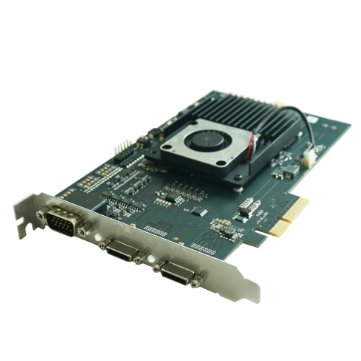

MV-GC1002-V2

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation
MV-GC1002-V2

Product introduction

Functional characteristics

  • Support Camera Link protocol, theoretical maximum rate can reach 6.8 Gbps

  • Support PoCL, single channel can provide up to 4W

  • Rich I/OInterface, integrated multiple input and output

  • Provide SDK, support GenTL protocol, facilitate secondary development

  • Follow GenIcamStandard



Ordering Model

MV-GC1002-V2


Dimensions


* Product data may cause differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-GC1002-V2

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

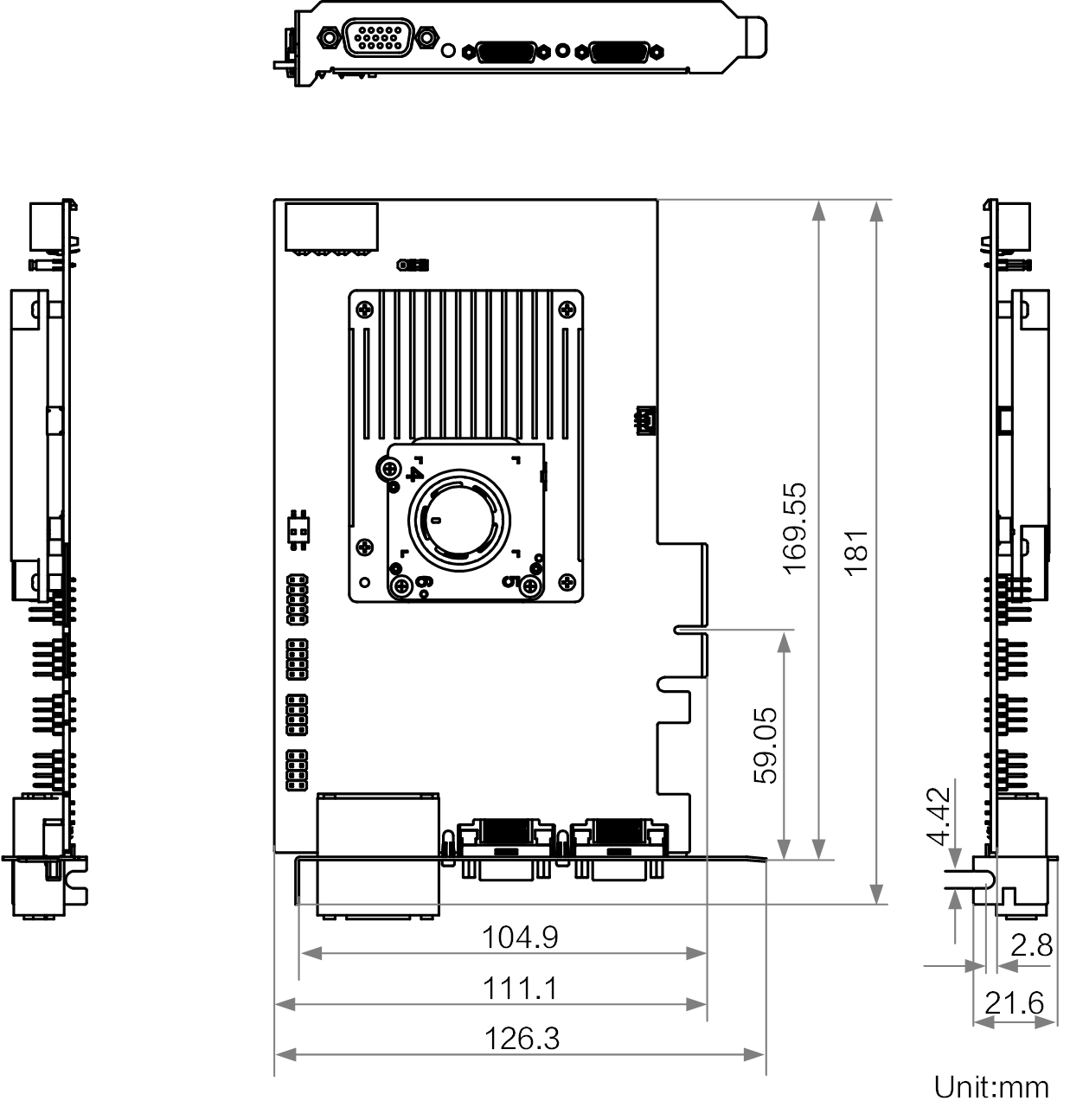

Dimensions

Overall size

Detailed parameters

Ordering Model MV-GC1002-V2
Model
Model MV-GC1002-V2
Name Camera Link Frame Grabber with DB15 trigger
Performance
Pixel Clock 20 ~ 85 MHz
Memory
Onboard Memory 1 GB DDR3-RAM
Host Interface
Bus Interface PCI-E gen2 × 4
Bus Interface Performance 1720 MB/s(peak transmission bandwidth), 1600 MB/s(persistent transmission bandwidth)
Bus Indicator of 1
Camera Interface
Standard Camera Link 2.1
Connector 2 × SDR
Power output PoCL, single channel can provide up to 4W@12VDC
Supported Camera Type Camera LinkInterfaceIndustrial Cameras
Supported Camera Quantity up to 2
Camera Interface Rate 6.8 Gbps
Flow Channel 2
Channel Indicator of 2
Processing Functions
Pixel Format Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8,BGR 8
General-Purpose I/O
I/O Type 11 configurable inputs/outputs, compatible with single-ended/differential, and supports multi-card cascading Baffle I/O:Line 0~6 supports 3.3 ~ 24 V input and output Pin I/O:Line 7~10 supports 3.3 ~ 12 V input, 3.3 V output
Connector DB15 male head, 9 pin row pin (2.54 mm spacing, 2 x 5,10 pin blind hole)
Electrical
Typical Power Consumption 7W (excluding PoCL)
Mechanical
Dimensions 181 mm × 126.3 mm × 21.6 mm
Temperature Operating Temperature0 ~ 60°C, Storage Temperature-20 ~ 70°C
Humidity 10% ~ 95%RH non-condensing
General Specifications
Software MVS
Operating System Windows 7/10/11,Linux support 64-bit Ubuntu 18.04 ~ 24.04
Certification CE,UL,RoHS

Data download

Product manual· SDK ·Development documentation
11
