HIKROBOT Frame Grabbers

MV-GE2004P

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation
MV-GE2004P

Product introduction

Functional characteristics

  • Support IEEE 802.3 protocol

  • Gigabit PoE network ports with up to 4 independent bandwidths

  • Full high-profile bars, support for 3U, 4U chassis



Ordering Model

MV-GE2004P


Dimensions


* Product data may cause Differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-GE2004P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

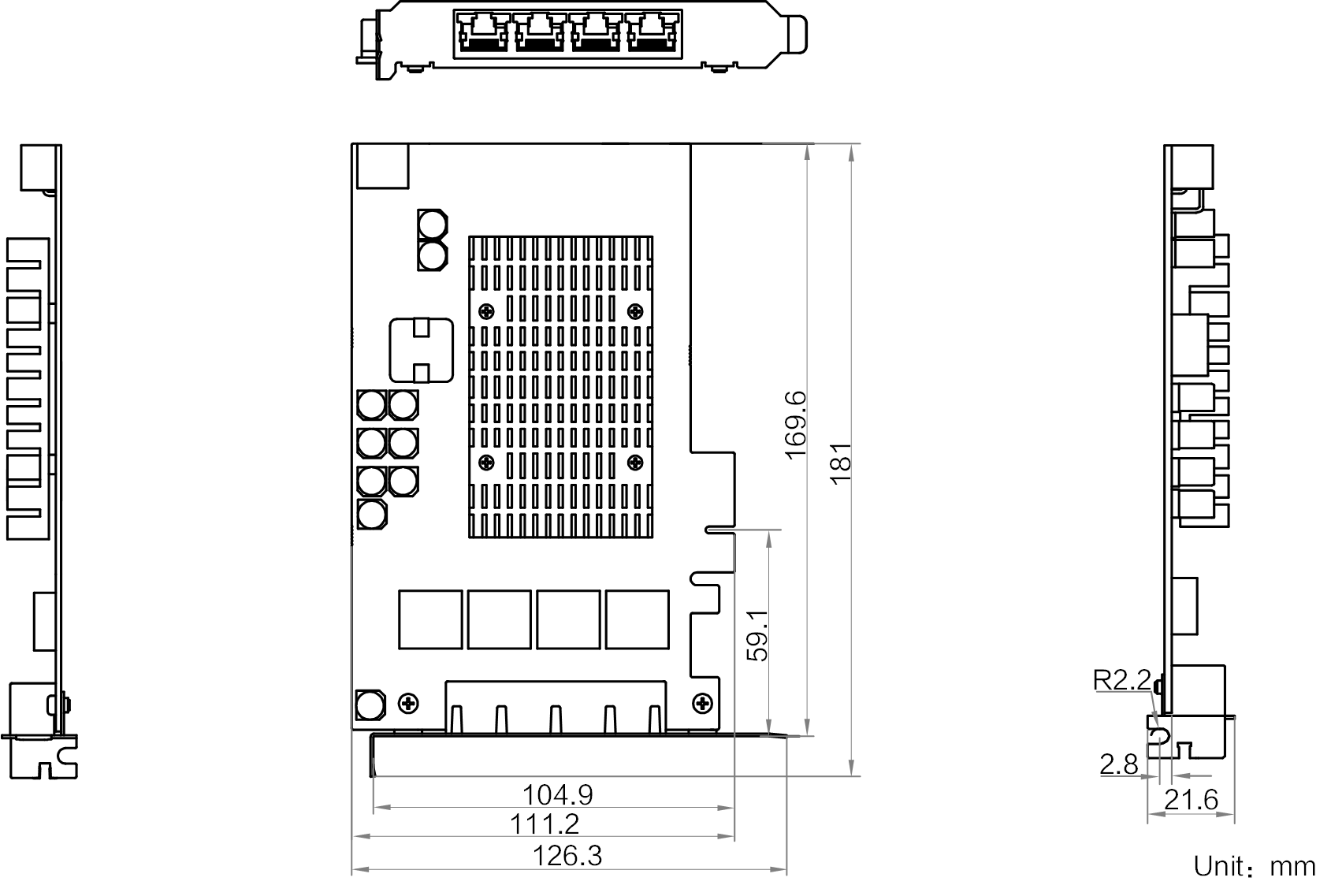

Dimensions

Overall size

Detailed parameters

Ordering Model MV-GE2004P
Model
Model MV-GE2004P
Name Four-port POE network card full-height V2.0
Host Interface
Bus Interface PCI-E gen2 × 4
Bus Interface Performance 860 MB/s(peak transmission bandwidth), 800 MB/s(continuous transmission bandwidth)
Camera Interface
Standard IEEE 802.3
Connector 4 × RJ45
Supported Camera Type Gigabit Ethernet Industrial Cameras
Supported Camera Quantity Up to 4
Camera Interface Rate 10/100/1000 Mbps
Flow Channel 4
Electrical
Typical Power Consumption 9 W(excluding PoE)
Mechanical
Dimensions 181 mm × 126.3 mm × 21.6 mm
Weight 201 g
Temperature Operating Temperature0 ~ 60°C, Storage Temperature-20 ~ 70°C
Humidity 10% ~ 95%RH No condensation
Cooling method Natural cooling, Fanless heat sink
General Specifications
Operating System Windows 7/10/11,Linux
Certification CE,RoHS,KC

Data download

Product manual· SDK ·Development documentation
