Name: HIKROBOT Frame Grabbers
Brand: HIKROBOT
SKU: MV-GC1002-V2
Availability: InStock

Product introduction

Functional characteristics

Ordering Model

MV-GE2202P

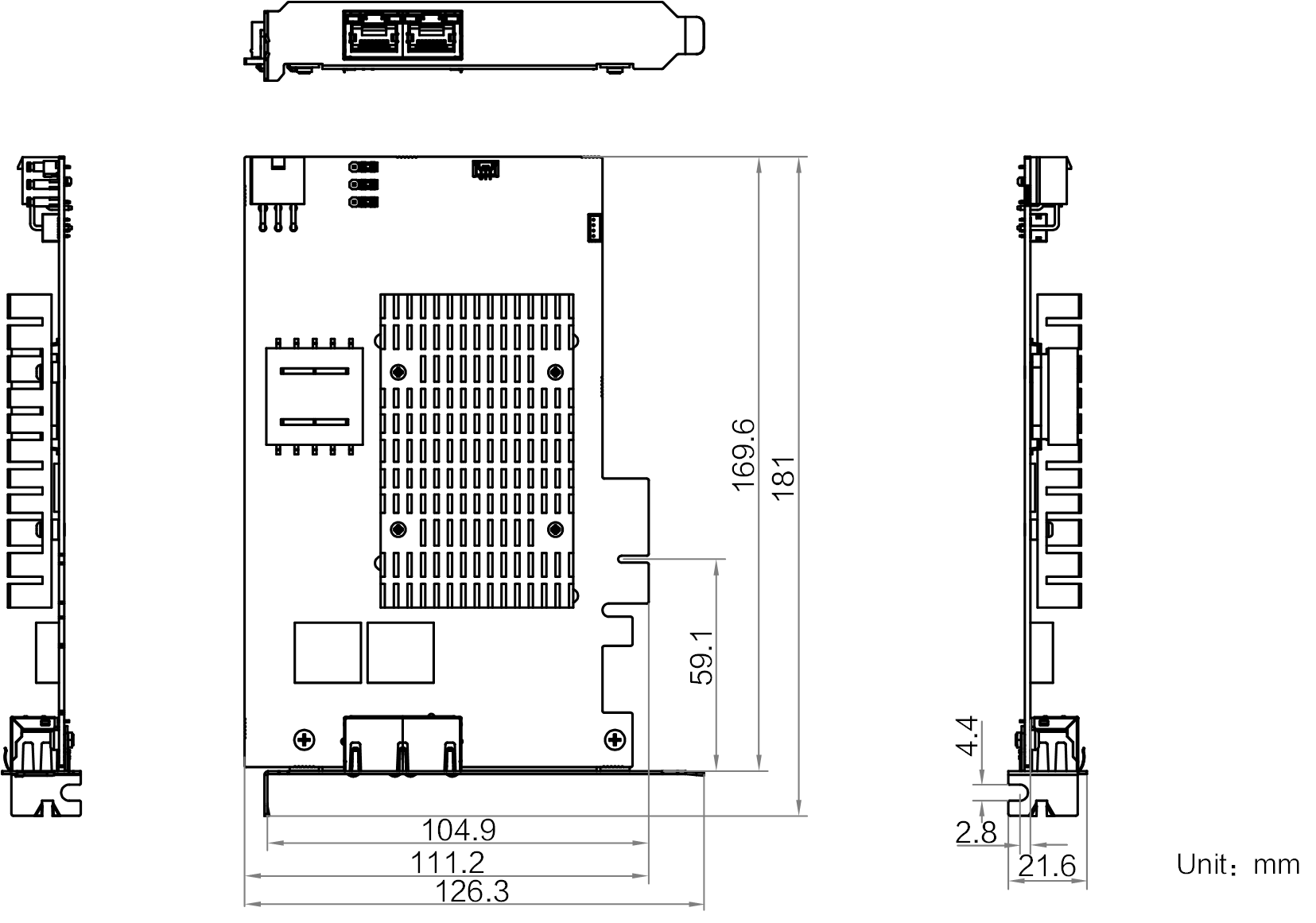

Dimensions

* Data involved in the product may occur Differences due to environmental and other factors. The company will not bear the consequences.

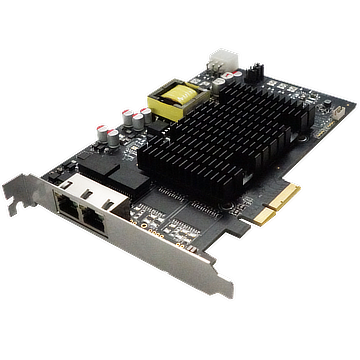

MV-GE2202P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-GE2202P

Model

Model	MV-GE2202P
Name	Dual-port Netcom 1860 POE Network Card

Performance

Main control chip

WX1860 chip

Host Interface

Bus Interface	PCI-E gen2 × 4
Bus Interface Performance	860 MB/s(peak transmission bandwidth), 800 MB/s(continuous transmission bandwidth)

Camera Interface

Standard	IEEE 802.3
Connector	2 × RJ45
Supported Camera Type	Gigabit Ethernet Industrial Cameras
Supported Camera Quantity	Up to 2
Camera Interface Rate	10/100/1000 Mbps
Flow Channel	2

Electrical

Typical Power Consumption

2 W(excluding PoE)

Mechanical

Dimensions	181 mm × 126.3 mm × 21.6 mm
Weight	190 g
Temperature	Operating Temperature0 ~ 60°C, Storage Temperature-30 ~ 70°C
Humidity	10% ~ 95%RH No condensation
