Name: HIKROBOT Frame Grabbers
Brand: HIKROBOT
SKU: MV-GC1002-V2
Availability: InStock

Product introduction

Functional characteristics

Ordering Model

MV-GQ1001

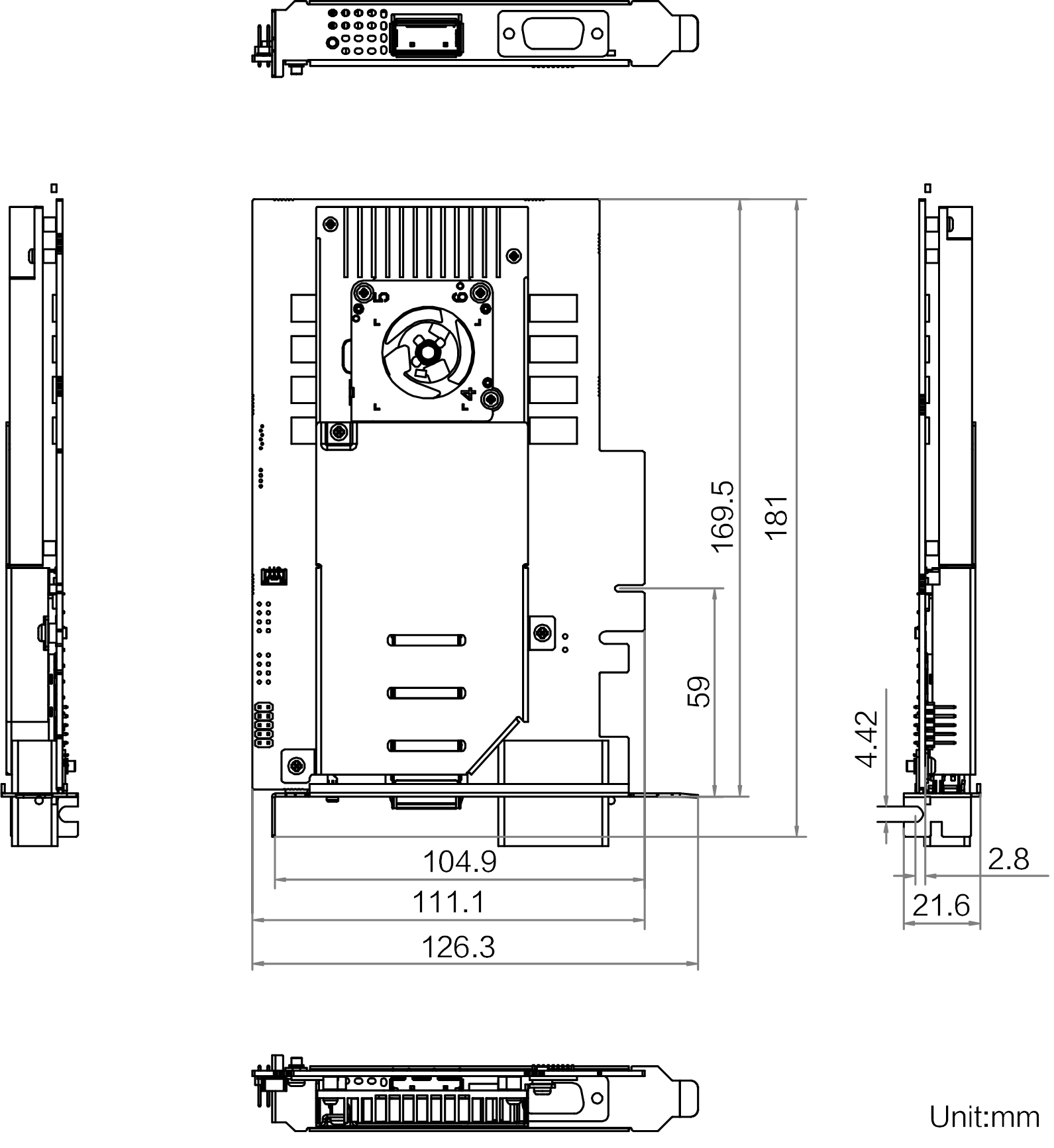

Dimensions

* Product data may cause Differences due to environmental and other factors. The company will not bear the consequences.

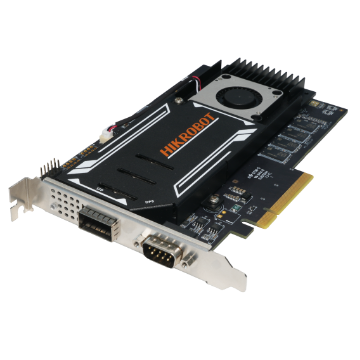

MV-GQ1001

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-GQ1001

Model

Model	MV-GQ1001
Name	Single-port 50Gbps QSFP Frame Grabber

Memory

Onboard Memory

8 GB DDR4-RAM

Host Interface

Bus Interface	PCI-E gen3 × 8
Bus Interface Performance	7800 MB/s(peak transmission bandwidth), 6700 MB/s(continuous transmission bandwidth)
Bus Indicator	1

Camera Interface

Standard	XoFLink
Connector	1×QSFP28
Supported Camera Type	QSFP28 type Camera
Supported Camera Quantity	1 (single card 50 Gbps, dual card 100 Gbps)
Interface transmission rate	50 Gbps
Flow Channel	2
Channel Indicator	1 pair

Processing Functions

Pixel Format

Mono 8/10/12 Bayer 8/10 RGB 8

General-Purpose I/O

I/O Type	8-channel configurable input/output, compatible with single-ended/differential Line 0/1/4/5/6/7 supports 3.3 to 12 V input and 3.3 to 24 V output Line 2/3 supports 3.3 to 24 V input and output
Connector	DB9 and built-in needle

Electrical

Typical Power Consumption

18.5 W

Mechanical

Dimensions	181 mm × 126.3 mm × 21.6 mm
Temperature	Operating Temperature0 to 60°C, Storage Temperature-20 to 70°C
Humidity	10% to 95%RH No condensation
