HIKROBOT Full Range of Industrial Area Scan Cameras

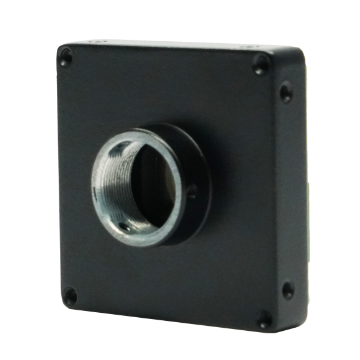

MV-CB013-A0UC-S

1280×1024, USB3.0, Color

Consulting quotation
MV-CB013-A0UC-S

Product introduction

functional properties

  • Support automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma correction, LUT, etc.

  • Color Camera implants excellent image interpolation algorithm for better Color restoration

  • Transfer data via USB 3.0 InterfacePower Supply

  • Compatible with USB3 Vision protocol and GenlCamStandard, and can connect to third-party Software Platform



Ordering Model

MV-CB013-A0UC-S


Dimensions


* Data related to the product may be generated due to environmental factors and other factorsdifference, the company will not bear the consequences arising therefrom.

Ordering Model

MV-CB013-A0UC-S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CB013-A0UC-S
Model
Model MV-CB013-A0UC-S

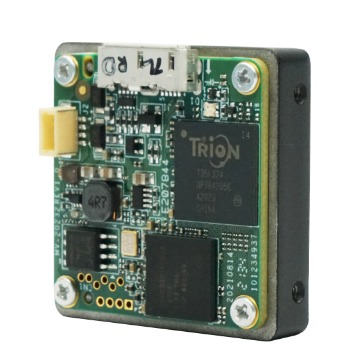

Name 1.3 megapixel USB 3.0 board-level Camera, color, M12 port
Performance
Sensor Type CMOS, global shutter
Pixel Size 4.8 μm×4.8 μm
Optical Format 1/2"
Resolution 1280×1024
Max. Frame Rate 201 fps @1280×1024 Bayer RG 8
Dynamic Range 53 dB
SNR 40 dB
Gain 0 dB ~16 dB
Exposure Time 9 μs ~ 10 sec
Shutter Mode Support automatic exposure, manual exposure, and one-click exposure modes
Mono/Color color
Pixel Format Mono 8/10/12 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed,YUV422_YUYV_Packed RGB8,BGR8
Binning Supports 1× 1, 2 × 2, 4 ×4
Downsampling Supports 1× 1, 2 × 2, 4 ×4
Mirror Support horizontal Mirror and vertical Mirror
Electrical
Data Interface USB3.0
Digital I/O 2 bidirectional configurable non-isolated IO(Line2,Line5)
Power Supply Supports USB Power Supply
Typical Power Consumption 2.8 W@5 VDC(USB Power Supply)
Mechanical
Lens Mount M12-Mount
Dimensions 35 mm×35 mm×8.6 mm
Weight about 30g
Temperature Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity 20%~80%RH non-condensing
General Specifications
Software MVS or third-party Software compatible with the USB3 Vision protocol
Operating System Windows XP/7/10/11 32/64bits,Linux 32/64bits, and MacOS 64bits
Protocol / Standard USB3 Vision,GenlCam
Certification RoHS,CE,FCC,KC

Data download

Product manual· SDK ·Development documentation
