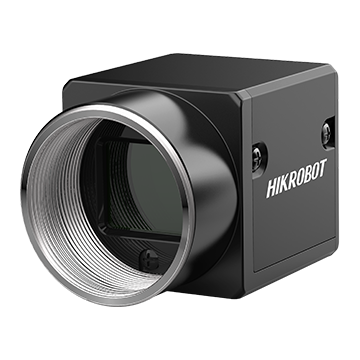

Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

functional properties

Support automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma correction, LUT, etc.
Support custom ROI, horizontal Mirror and vertical Mirror
Support hard triggering, soft triggering and free running mode
Mechanical compact, Dimensions29 mm×29 mm×30 mm, suitable for smaller installation requirements
Compatible with USB3 Vision protocol and GenlCamStandard, and can connect to third-party Software Platform

Ordering Model

MV-CE050-30UC

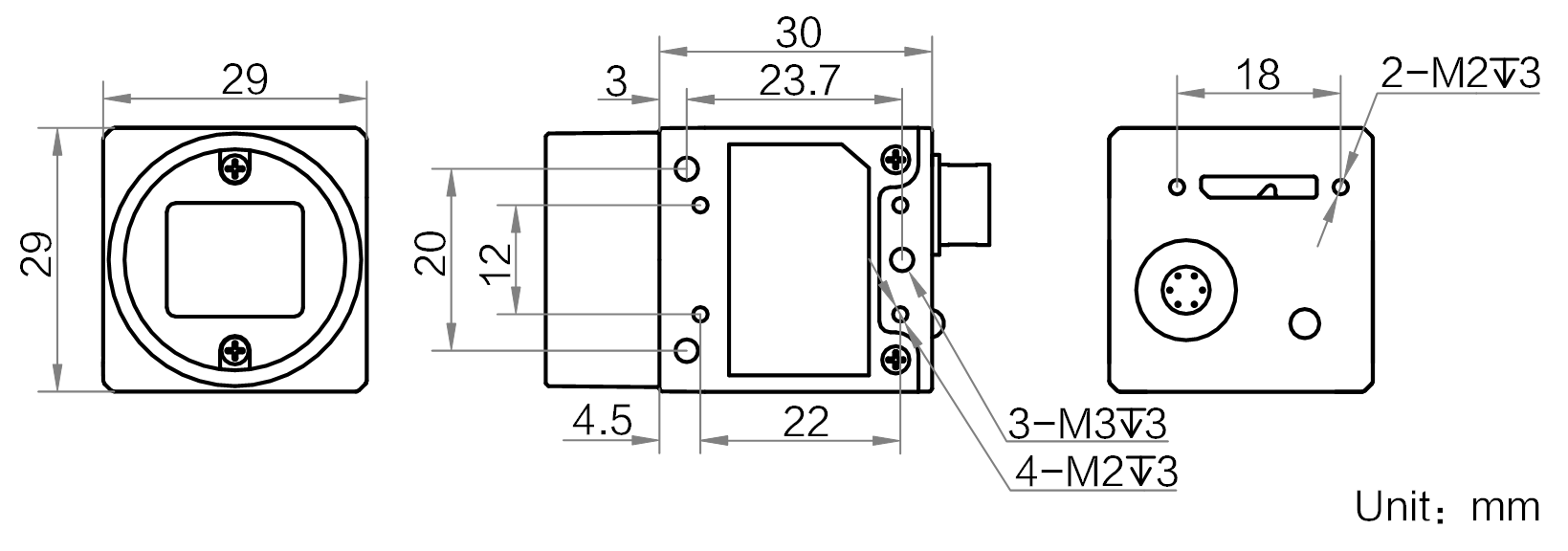

Dimensions

* Data related to the product may be generated due to environmental factors and other factorsdifference, the company will not bear the consequences arising therefrom.

Ordering Model

MV-CE050-30UC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CE050-30UC

Model

Model	MV-CE050-30UC
Name	5 megapixel USB 3.0 Area Array Camera, AR0521, Color

Performance

Sensor Type	CMOS, rolling shutter
Sensor Model	Aptina AR0521
Pixel Size	2.2 μm×2.2 μm
Optical Format	1/2.5"
Resolution	2592×1944
Max. Frame Rate	44.7 fps@2592×1944 Bayer RG 8
Dynamic Range	60 dB
SNR	40 dB
Gain	0 dB ~15 dB
Exposure Time	28 μs ~ 0.6 sec
Shutter Mode	Support automatic exposure, manual exposure, and one-click exposure modes
Mono/Color	color
Pixel Format	Mono 8/10/12 Bayer GR 8/10/10Packed/12/12Packed YUV422_YUYV_Packed,YUV 422 Packed RGB 8,BGR 8
Binning	Supports 1× 1, 2 × 2, 4 ×4
Downsampling	Supports 1× 1, 2 × 2, 4 ×4
Mirror	Support horizontal Mirror and vertical Mirror

Electrical

Data Interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7Connector provides Power Supply and I/O:1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O(Line2)
Power Supply	12 VDC, support for USBPower Supply
Typical Power Consumption	2.5 W@5 VDC(USB Power Supply)

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm×29 mm×30 mm
Weight	Approximately 56 g
IP Rating	IP30(with Lenses and Cables installed correctly)
Temperature	Operating Temperature 0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 80%RH non-condensing

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10/11 32/64bits,Linux 32/64bits, and MacOS 64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,RoHS,KC
