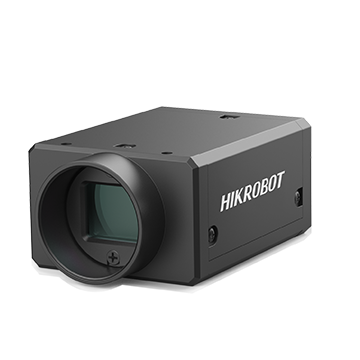

Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

functional properties

Support automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma, LUT correction, etc.
Support custom ROI and horizontal Mirror
Support hard trigger, soft trigger and free running mode
Compatible with USB3 Vision protocol and GenICamStandard, and can seamlessly connect with third-party Software Platforms

Ordering Model

MV-CE200-10UM

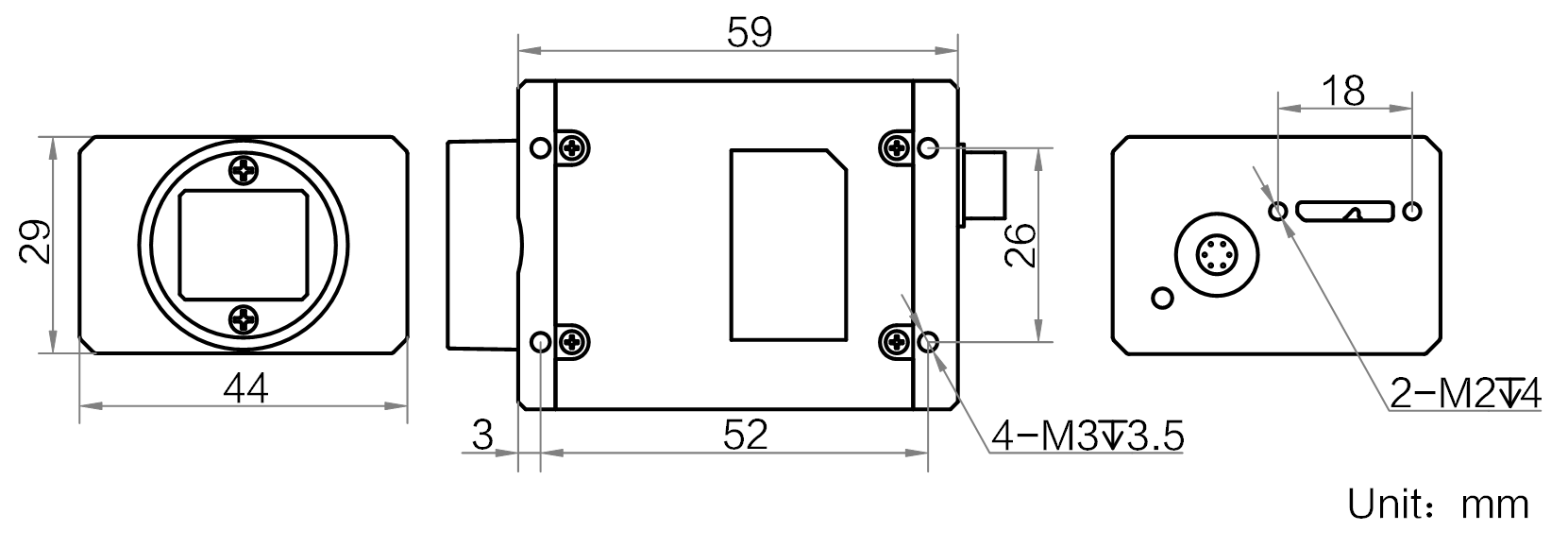

Dimensions

* Data related to the product may be generated due to environmental factors and other factorsdifference, the company will not bear the consequences arising therefrom.

Ordering Model

MV-CE200-10UM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CE200-10UM

Model

Model	MV-CE200-10UM
Name	20 megapixel USB 3.0 Area Array Camera, IMX183, Black and White

Performance

Sensor Type	CMOS, rolling shutter
Sensor Model	Sony IMX183
Pixel Size	2.4 μm×2.4 μm
Optical Format	1"
Resolution	5472×3648
Max. Frame Rate	19.2 fps@5472×3648 Mono 8
Dynamic Range	65.5 dB
SNR	41.5 dB
Gain	0 dB ~20 dB
Exposure Time	28 μs ~ 0.7 sec
Shutter Mode	Supports automatic exposure, manual exposure, one-click exposure and Global Reset
Mono/Color	black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1× 1, 2 × 2, 4 ×4
Downsampling	Supports 1× 1, 2 × 2, 4 ×4
Mirror	Support Level Mirror

Electrical

Data Interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7Connector provides Power Supply and I/O:1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O(Line2)
Power Supply	12 VDC, support for USBPower Supply
Typical Power Consumption	2.83 W@5 VDC(USB Power Supply)

Mechanical

Lens Mount	C-Mount
Dimensions	44 mm×29 mm×59 mm
Weight	about 100 g
IP Rating	IP30(with Lenses and Cables installed correctly)
Temperature	Operating Temperature 0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 80%RH non-condensing

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10/11 32/64bits,Linux 32/64bits, and MacOS 64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,FCC,RoHS,KC
