Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

Functional characteristics

Adopt a 300,000-pixel, high-sensitivity uncooled vanadium oxide detector
Support multiple false color modes, gray level alarms, rich image adjustment functions
Miniaturization of size, support four-side installation
Adopt Gigabit Ethernet Interface, the maximum transmission distance can reach 100m without relay
Compatible with GigE Vision protocol and GenlCamStandard

Ordering Model

MV-CI003-GL-N35

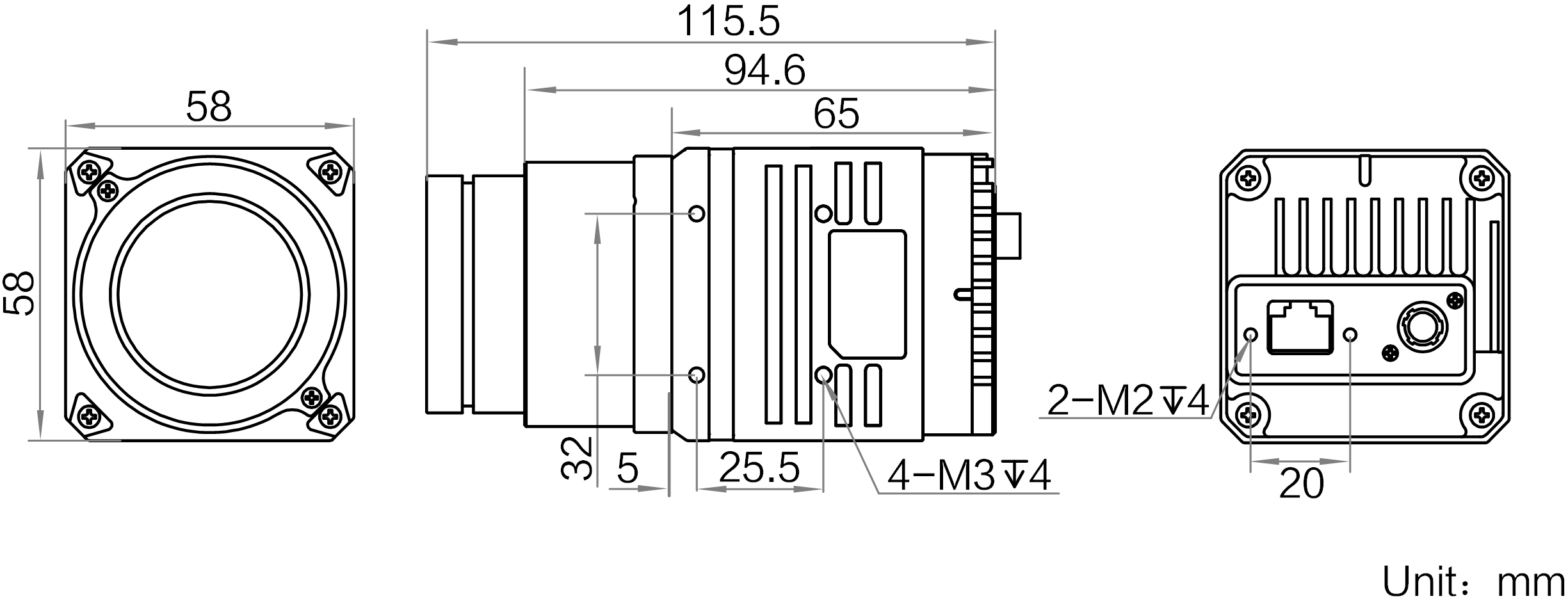

Dimensions

* The data involved in the product may cause Differences and other factors , The company will not bear the consequences arising therefrom.

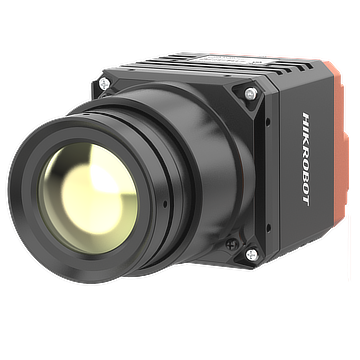

MV-CI003-GL-N35

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CI003-GL-N35

Model

Model	MV-CI003-GL-N35
Name	Gigabit Ethernet LWIR Cameras, 640×512, LensesFocus Length35mm

Performance

Sensor Type	Vanadium oxide uncooled detector
Pixel Size	17 μm
Resolution	640 × 512
Max. Frame Rate	50 fps @640 × 512 Mono 8
Thermal sensitivity	<35 mk(F1.0,25°C)
Response time	<10 ms
Pixel Format	Mono 8/12/14 YUV422_YUYV_Packed
Pseudo-color mode	White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
Image processing	Supports brightness, contrast, image detail enhancement, digital noise reduction (time domain, airspace)
Focal Length	35 mm
Field of View	17.9° × 14.2°
Minimum Object Distance	0.45 m

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s) Compatible with Fast Ethernet (100Mbit/s)
Digital I/O	6-pin P7Connector provides Power Supply source and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O(Line2)
Power Supply	9 ~ 24 VDC, support for PoEPower Supply
Typical Power Consumption	2.5 W@12 VDC

Mechanical

Lens Mount	M34*0.75
Dimensions	58 mm x 58 mm × 115.5 mm
Weight	Approximately 275 g
IP Rating	IP40 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature-30 to 60°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 90%RH No condensation

General Specifications

Software	MVS or third-party Software supporting GigE Vision protocol
Operating System	Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol / Standard	GigE Vision 2.0,GenICam
Certification	CE,RoHS,KC
