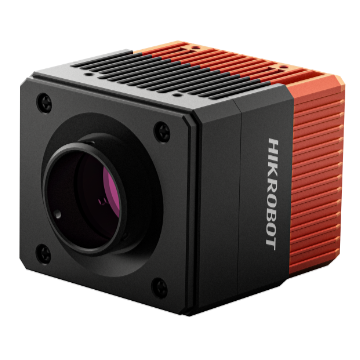

Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

Functional characteristics

Adopt InGaAsSensor, support 0.9 - 1.7um wide spectrum imaging, 12.5um large pixels, High Dynamic Range
Camera body Mechanical design is compact, suitable for compact space of industrial equipment
ISP is rich in functions, supports ADC, contrast adjustment and other functions
Gigabit Network Interface, without relay, the maximum transmission distance can reach 100m
Compatible with GigE Vision V2.0 protocol and GenlCamStandard, Seamless connection with third-party Software

Ordering Model

MV-CI010-GS-NN

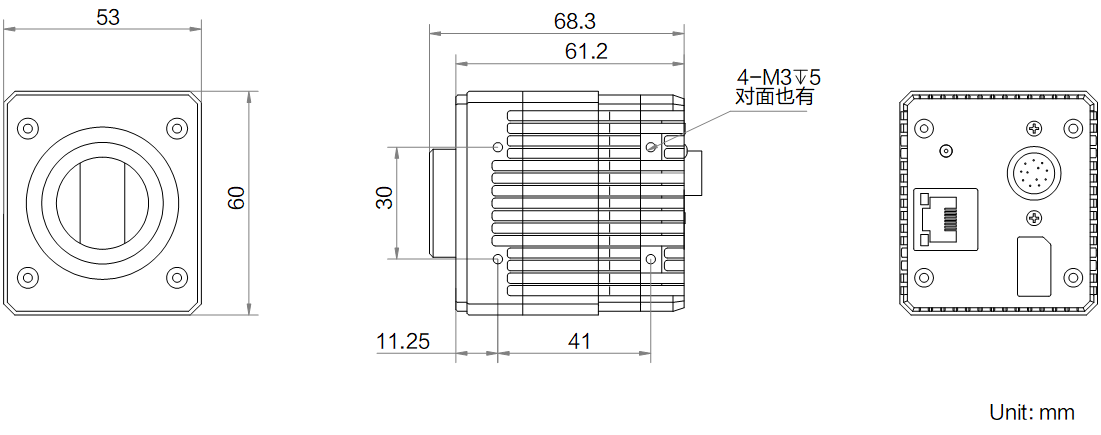

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CI010-GS-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CI010-GS-NN

Model

Model	MV-CI010-GS-NN
Name	1k SWIR linear array, mesh port, no fan

Performance

Sensor Type	InGaAs
Pixel Size	12.5 μm × 12.5 μm
Resolution	1024 × 1
Pixel Format	Mono 8/10/12/14
Max. Line Rate	15 kHz @1024 × 1 Mono 8
Dynamic Range	69.8 dB
SNR	46.6 dB
External Trigger Mode	row trigger, frame trigger, row + frame trigger

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Power Supply	12 VDC
Digital I/O	12-Pin P10Connector provides Power Supply and I/O:1 single-ended frame trigger input, 1 single-ended row trigger input, 1 differential row trigger signal input (RS422 level)
Typical Power Consumption	5.0 W@12 VDC

Mechanical

Dimensions	53 mm × 60 mm × 61.2 mm(including Lens Mount)
Weight	Approximately 355 g
IP Rating	IP40(with Lenses and Cables installed correctly)
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 95%RH non-condensing
Lens Mount	C-Mount

General Specifications

Software	MVS or third-party Software that supports GigE Vision protocol
Operating System	Windows 7/10 32/64bits,Windows 11 64bits,Linux 32/64bits
Protocol / Standard	GigE Vision 2.0,GenICam
Certification	CE,RoHS
