Product introduction

Functional characteristics

Rich ISP processing technology, supports manual adjustment of Gamma correction, flat-field correction, LUT, black level adjustment, etc.
Supports bi-directional I/O wiring, flexible input/output configuration
Compact Mechanical design, Camera front and side panels have mounting holes, allowing flexible installation
Compatible with USB3 Vision protocol and GenICamStandard

Ordering Model

MV-CL021-60UM-OCT

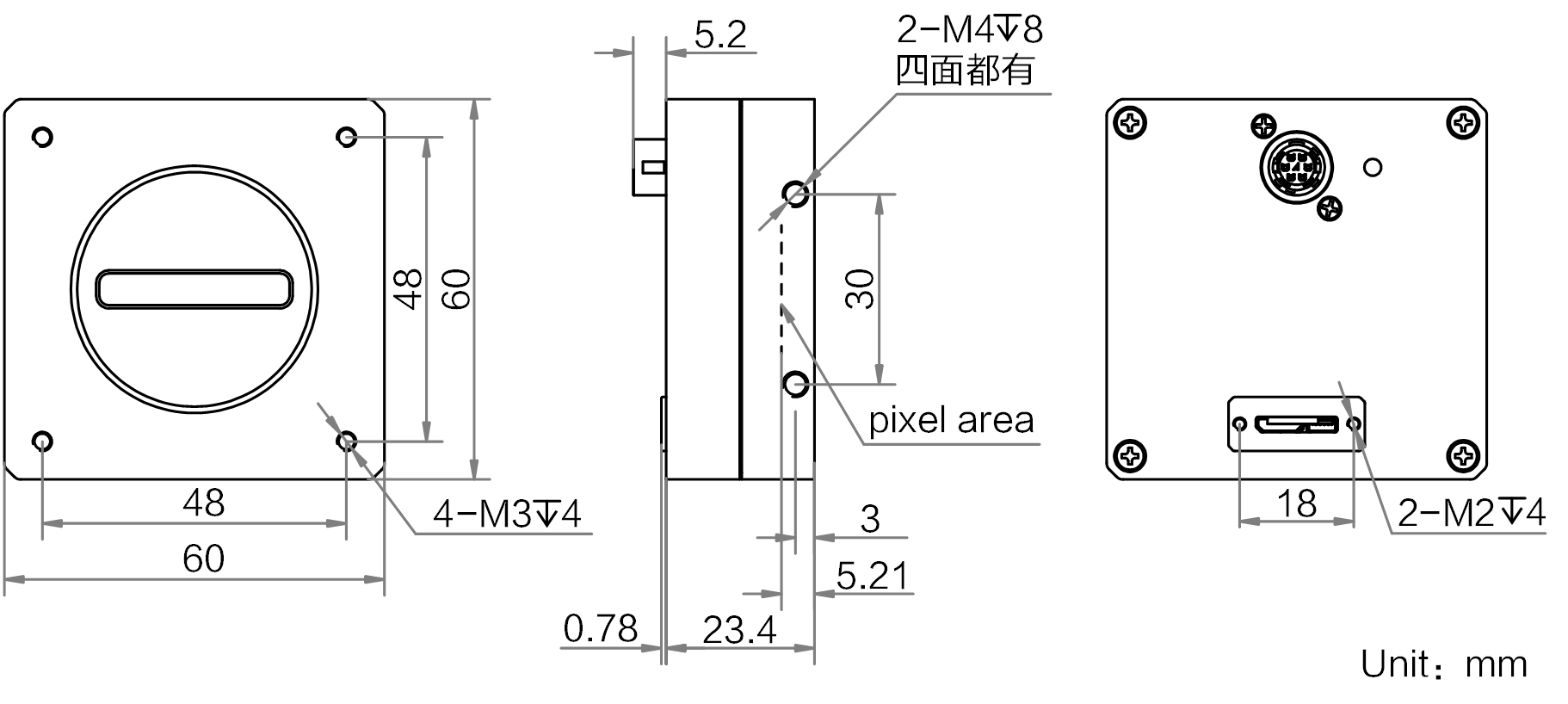

Dimensions

* Product data may cause Differences due to environmental factors. The company will not bear the consequences.

MV-CL021-60UM-OCT

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CL021-60UM-OCT

Model

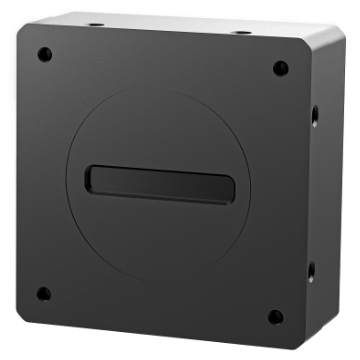

Model	MV-CL021-60UM-OCT
Name	2k USB3.0 linear array, 10*180μm, black and white

Performance

Sensor Type	CCD
Pixel Size	10 μm × 180 μm
Resolution	2048 × 1
Max. Line Rate	66.6 kHz
transmission mode	U3V
Dynamic Range	65.2 dB
SNR	46 dB
Gain	2.0x
Exposure Time	15 μs ~ 10 ms
Shutter Mode	Support automatic exposure, manual exposure, and one-click exposure modes
Mono/Color	black and white
Pixel Format	Mono 8/10/12/14
Binning	Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
Mirror	Support Level Mirror
Trigger Mode	external trigger
External Trigger Mode	row trigger, frame trigger, row + frame trigger

Electrical

Data Interface	USB 3.0, compatible with USB 2.0

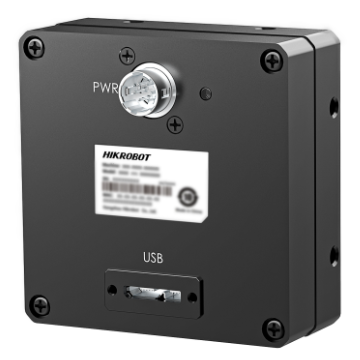

Digital I/O	6-Pin P7Connector provides Power Supply and I/O:2 configurable non-isolated I/Os (Line0/1), supporting single-ended/differential
Power Supply	12~24 VDC
Typical Power Consumption	5 W@24 VDC

Mechanical

Dimensions	60 mm × 60 mm × 23.4 mm
Weight	Approximately 140 g
IP Rating	IP40(with Lenses and Cables installed correctly)
Temperature	Operating Temperature -20 ~35 °C, Storage Temperature-30 ~ 80°C
Humidity	5% ~ 90%RH non-condensing

General Specifications

Software	MVS or third party support USB3 Vision protocol Software
Operating System	Windows 7/10/11 32/64 bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	RoHS
