Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

Functional characteristics

Rich ISP image processing technology supports manual adjustment of Gamma correction, flat field correction, LUT, black level adjustment, etc.
Provides 1 XoF optical port, supports a variety of flexible exposure and acquisition methods, the highest line frequency can reach 195 kHz
Multiple bidirectional configurable I/O Interface, input/output can be flexibly configurable
Mechanical design is compact, front and side panels have mounting holes, flexible installation
Removable heat sink, Adapt to narrow installation scenarios that are not high temperatures

Ordering Model

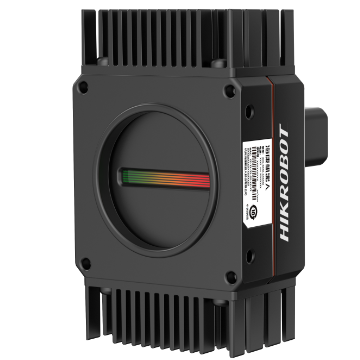

MV-CL042-91FM

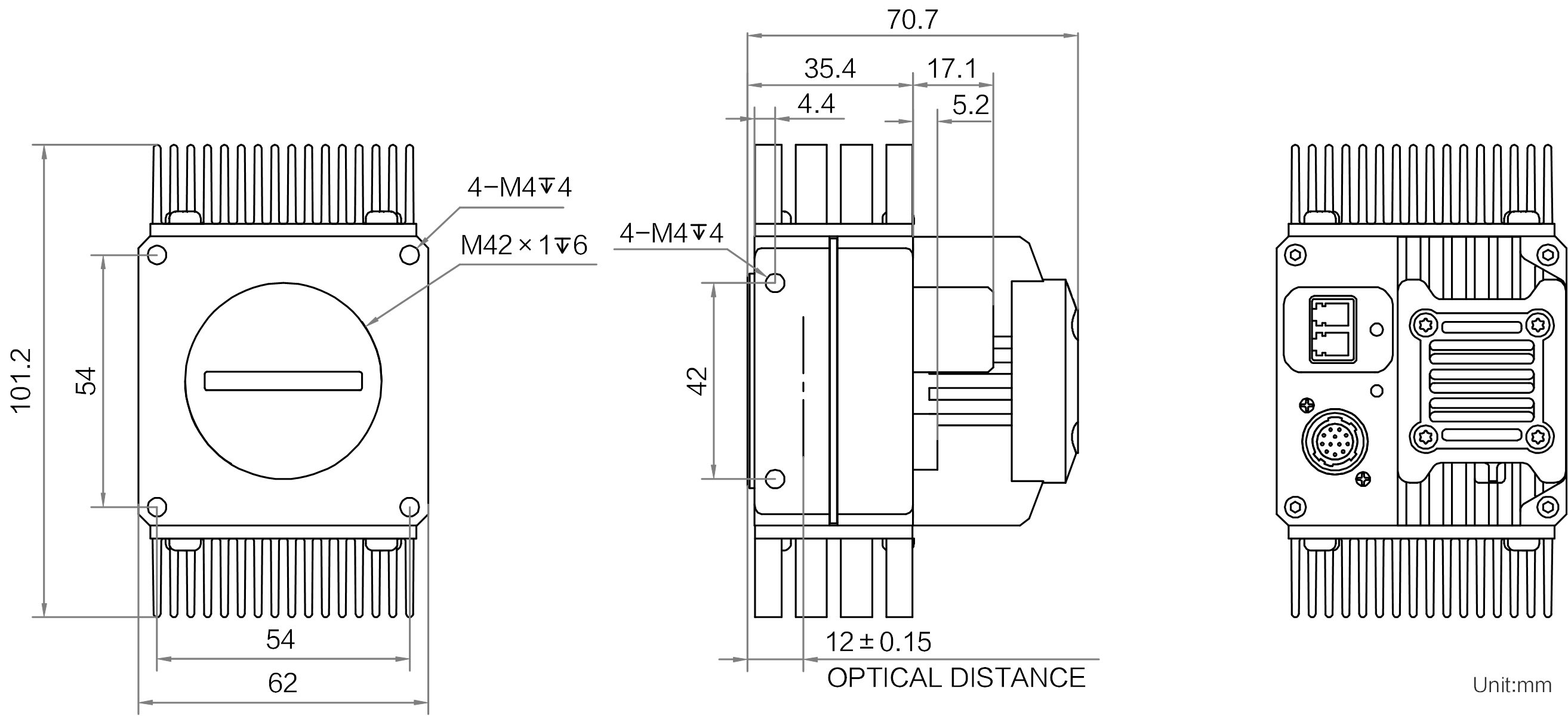

Dimensions

* Data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CL042-91FM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CL042-91FM

Model

Model	MV-CL042-91FM
Name	4k 7μm two-line black and white, XoF single optical port

Performance

Sensor Type	CMOS
Pixel Size	7 μm × 7 μm
Resolution	4096 × 2
Imaging Mode	Support 1-Line, 2-TDI
Max. Line Rate	195 kHz(1-Line), 100 kHz(2-TDI)
Transfer mode	1Link
Dynamic Range	65.6 dB
SNR	40 dB
Gain	1.0×,1.4×,1.6×,2.4×,3.2×
Exposure Time	3 μs ~ 10 ms
Shutter Mode	Support automatic exposure, manual exposure, one-button exposure, pulse controlled exposure
Mono/Color	Black and white
Pixel Format	Mono 8/10/12
Binning	1 × 1,1 × 2,1 × 4,2 × 1,2 × 2,2 × 4,4 × 1,4 × 2,4 × 4
Mirror	Support horizontal Mirror
Trigger Mode	External triggering, internal triggering
External Trigger Mode	Line triggering, frame triggering, line + frame triggering

Electrical

Data Interface	LC Fiber Interface
Digital I/O	12-pin P10Connector provides Power Supply and I/O:4 configurable inputs/outputs (Line 0/1/3/4), supports single-ended/differential
Power Supply	12~24 VDC
Typical Power Consumption	8.8 W@12 VDC

Mechanical

Lens Mount	M42*1,Flange Back Focal Length12 mm; Can be transferred to the F port Lenses
Dimensions	101.2 mm × 62 mm × 70.7 mm
Weight	Approximately 300 g
IP Rating	IP40 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature-20 to 55°C, Storage Temperature-30~80°C
Humidity	5%~90%RH No condensation
