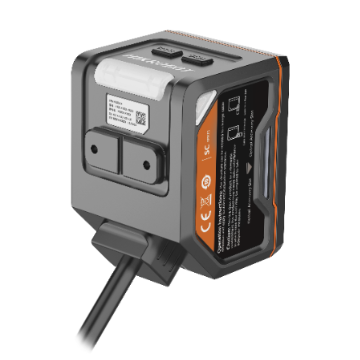

Name: HIKROBOT SC3000 Series Vision Sensors
Brand: HIKROBOT
SKU: MV-SC3013XC-05M-MED
Availability: InStock

Product introduction

Functional characteristics

Using an embedded hardware Platform, it can perform high-speed image processing
Implanted high-precision algorithms, high reading rate, and can realize whether a test tube cap is present, liquid level level detection, blood quality detection, etc. Functions
IOInterface is rich and can be connected to multiple input and output signals
Multi-angle visual body Indicator can view the device status in real time, making it easy for debugging and maintenance
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, Various communication modes such as EtherNet/IP

Ordering Model

MV-SC3013XC-06M-MED

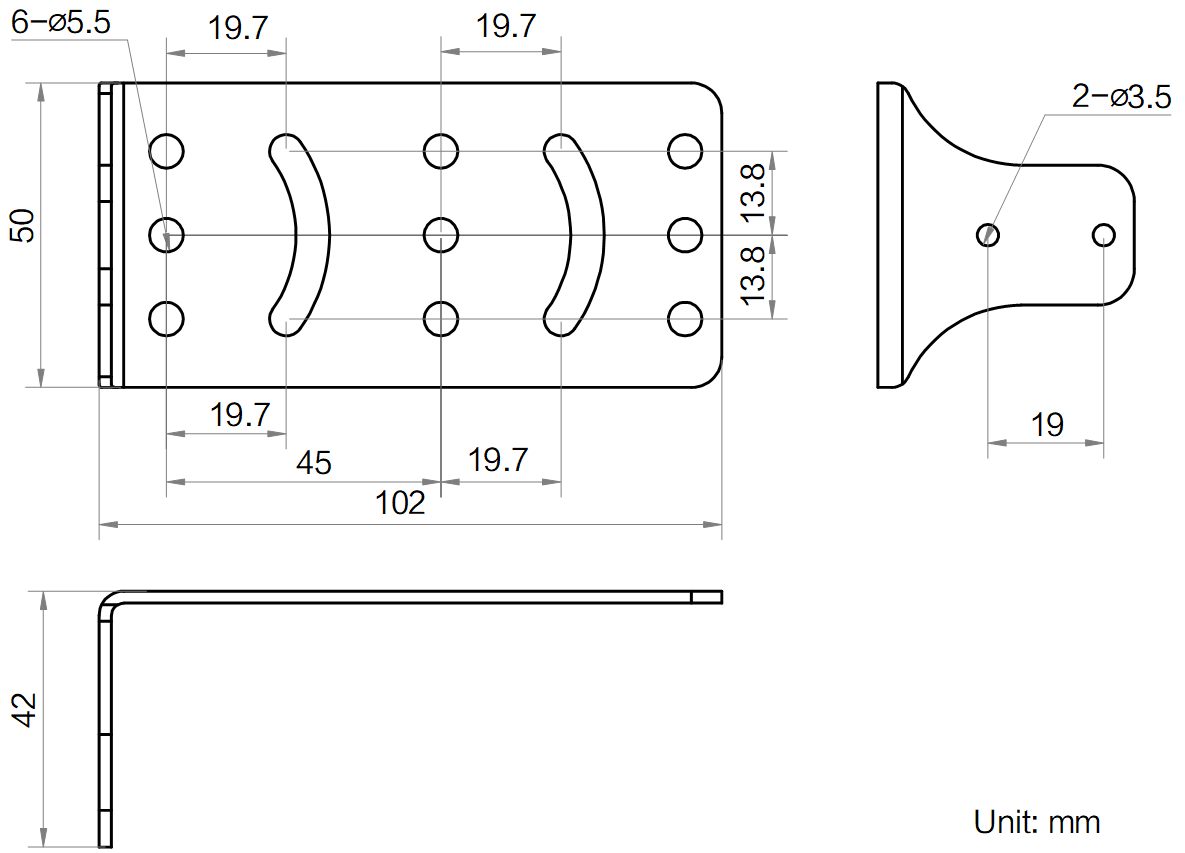

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-SC3013XC-06M-MED

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

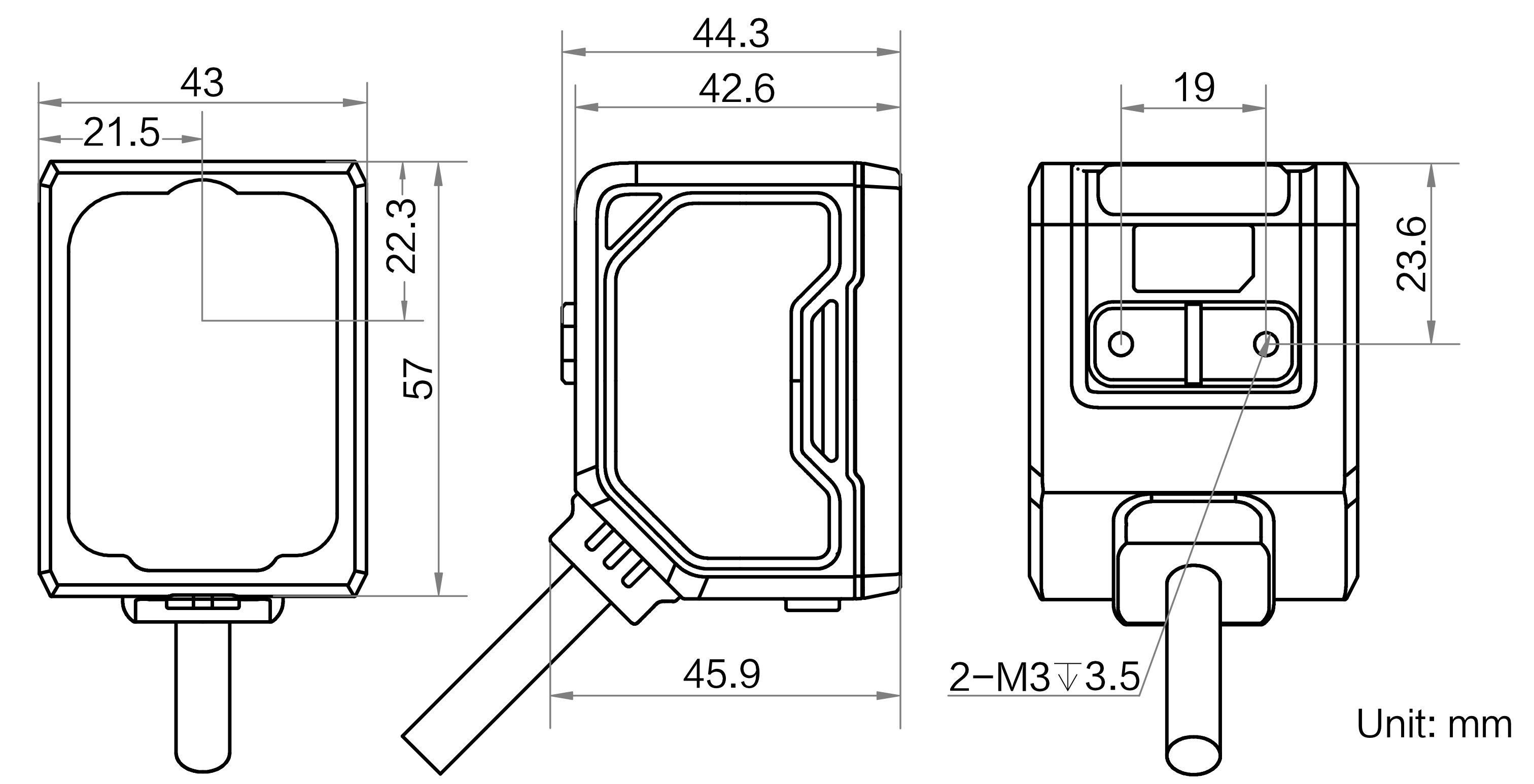

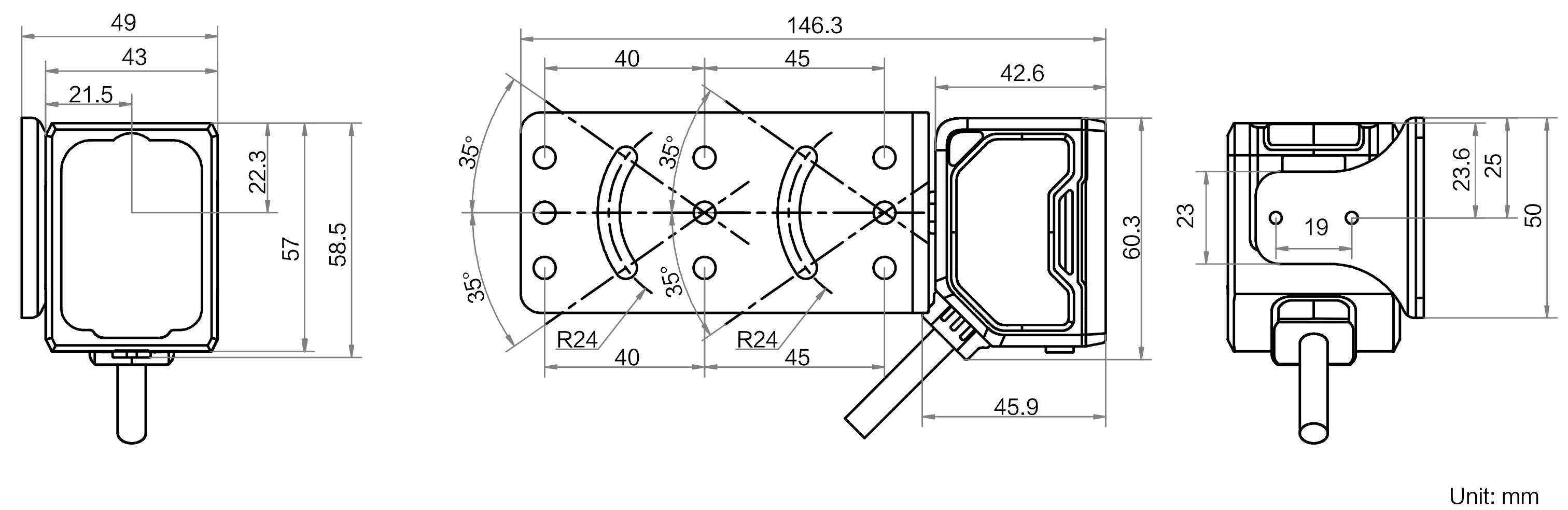

Dimensions

Detailed parameters

Ordering Model MV-SC3013XC-06M-MED

Model

Model	MV-SC3013XC-06M-MED

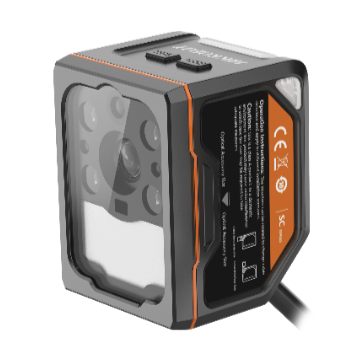

Name	SC 3000X Medical Vision Sensor, 1.3MP, color, 6mmLenses, motorized focusing

Tools

Vision Tools	Measurement: dot measurement, liquid level measurement, contrast measurement, gray area, pitch measurement, width measurement, brightness mean, line angle, Color measurement, Color area, diameter measurement, straight line angle Yes or no: whether there are spots, whether there are edges, whether there are outlines, whether there are patterns, whether there are circles, whether there are straight lines Counts: spot count, edge count, contour count, pattern count, Color count Identification: code identification, blood quality identification, Color comparison, Color identification, registration classification, registration target detection, character recognition Logic:Json format output, variable calculation, branch control, logic judgment, condition judgment, character comparison, combination judgment Positioning: unit conversion, position correction Deep learning: Classification, target detection
Solution Capability	Support scheme import/export, can store up to 32 schemes
Communication Protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Camera

Sensor Type	CMOS, global shutter
Pixel Size	6.9 μm × 6.9 μm
Optical Format	1/1.45"
Resolution	1216 × 1024
Max. Acquisition Frame Rate	100 fps
Gain	0 dB ~ 15 dB
Exposure Time	16 μs ~1 sec
Pixel Format	RGB 8,Mono 8
Mono/Color	Color

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Digital I/O	17-pin M12Interface Provides Power Supply source and I/O: Contains 3 optocoupler isolated inputs (LINE0/1/2), 3 optocoupler isolated outputs (LINE3/4/5), 1 RS-232 Interface NPN or PNP type of output signal can be equipped with
Power Supply	24 VDC
Typical Power Consumption	6.5 W@24 VDC

Mechanical

Lens Mount	M12-mount, mechanical focus
Focal Length	6mm
Lens Cover	Fully biased Lens Cover
Light Source	Concentrated white light, optional red/blue/infrared
Aimer	1 LED
Indicator	Multi-angle visual body Indicator
Dimensions	43 mm × 57 mm × 45.9 mm
Weight	Approximately 200 g
IP Rating	IP65
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH Non-condensing
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007 (10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008 (30 g/11 ms, half sine wave, 6 axial directions, 500 shocks in each axial direction, A total of 3000 shocks)
