Name: HIKROBOT SC3000 Series Vision Sensors
Brand: HIKROBOT
SKU: MV-SC3013XC-05M-MED
Availability: InStock

Product introduction

Functional characteristics

Embedded hardware Platform can be used for high-speed image processing
Implanted high-precision positioning, measurement, and identification algorithms can realize counting, defects, presence, positioning and other functions
IOInterface is rich, can be connected to multiple input and output signals
360° visual body Indicator can view the equipment status in real time, making it convenient for debugging and maintenance
Rotatable tail outlet design, flexibly adapting to narrow spaces
Polarization, diffusion, and fully transparent three-channel multiple Optical lighting. Super environmental adaptability
IP67 protection, not afraid of harsh industrial application environments
Support multiple communication modes such as RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP

Ordering Model

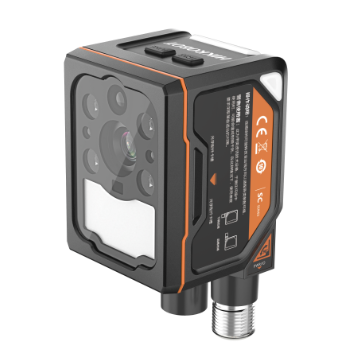

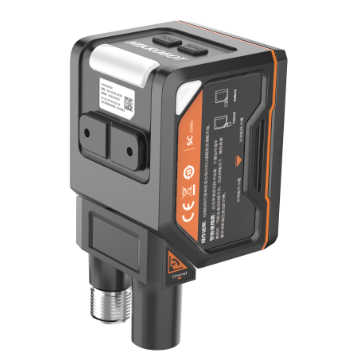

MV-SC3013XC-12M-WBN

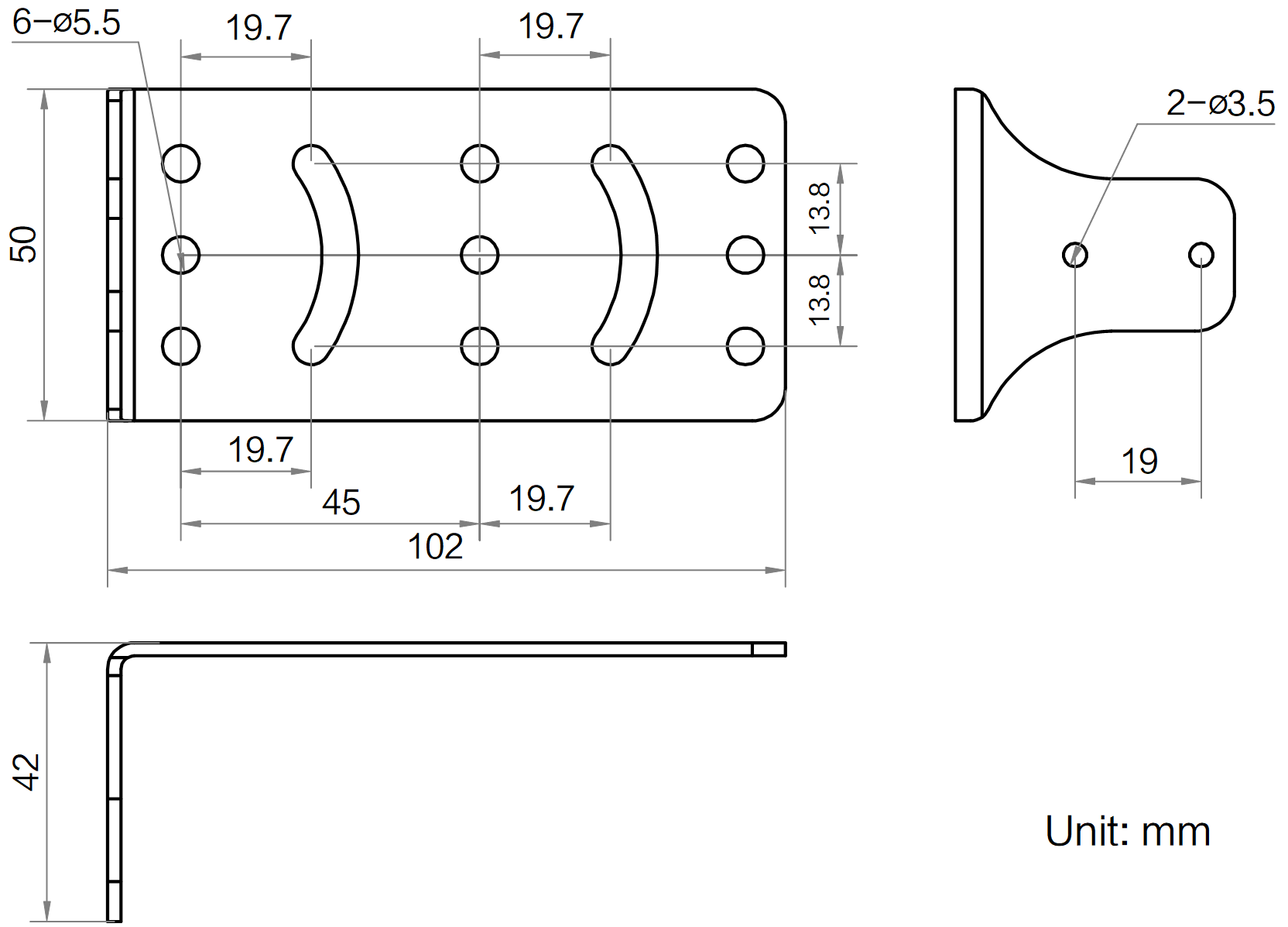

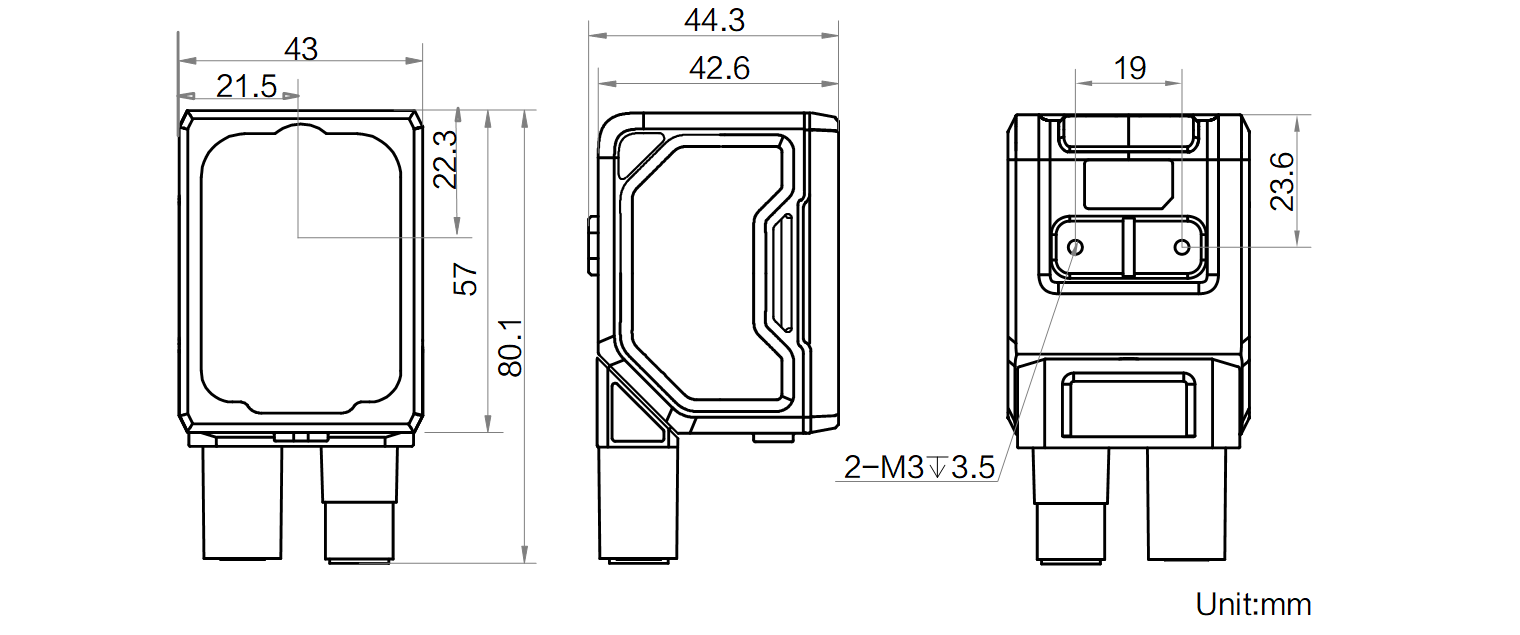

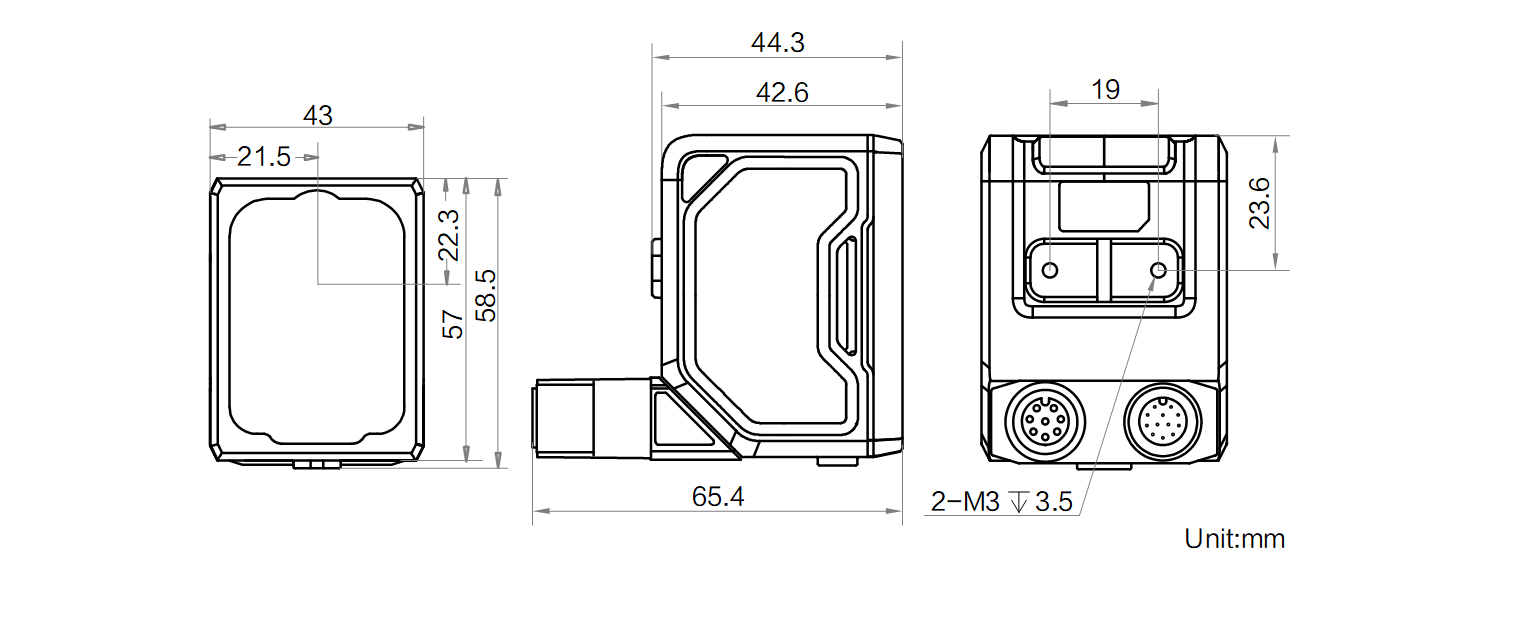

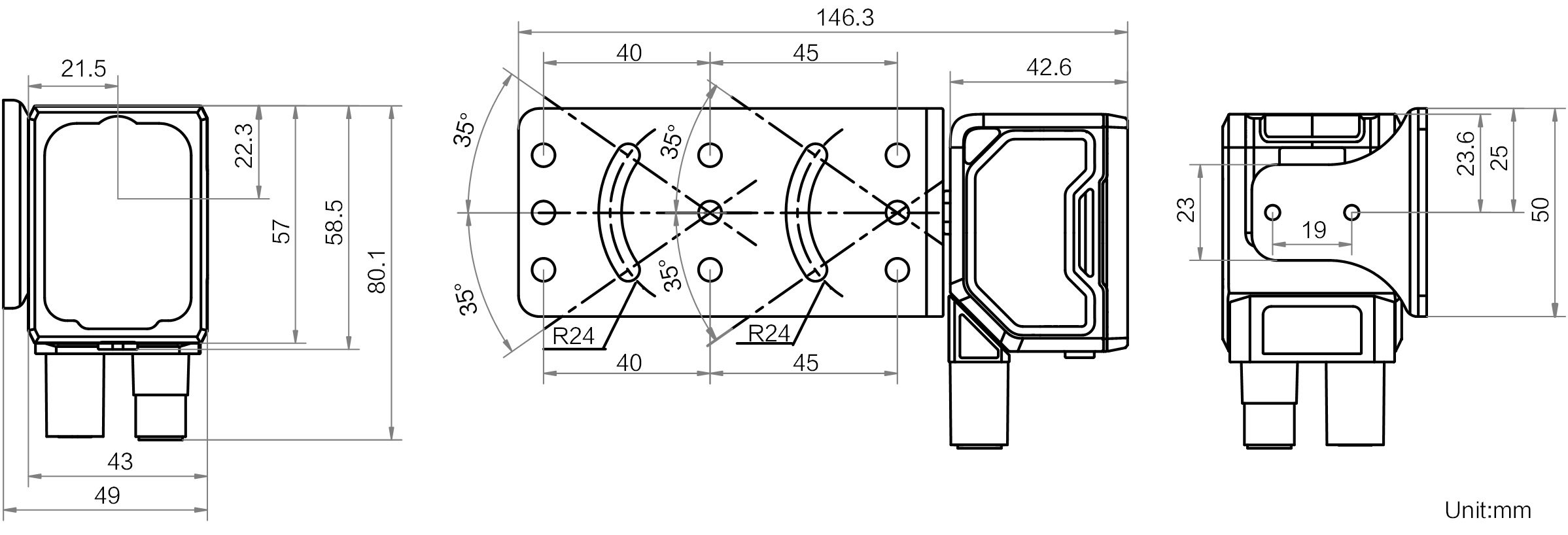

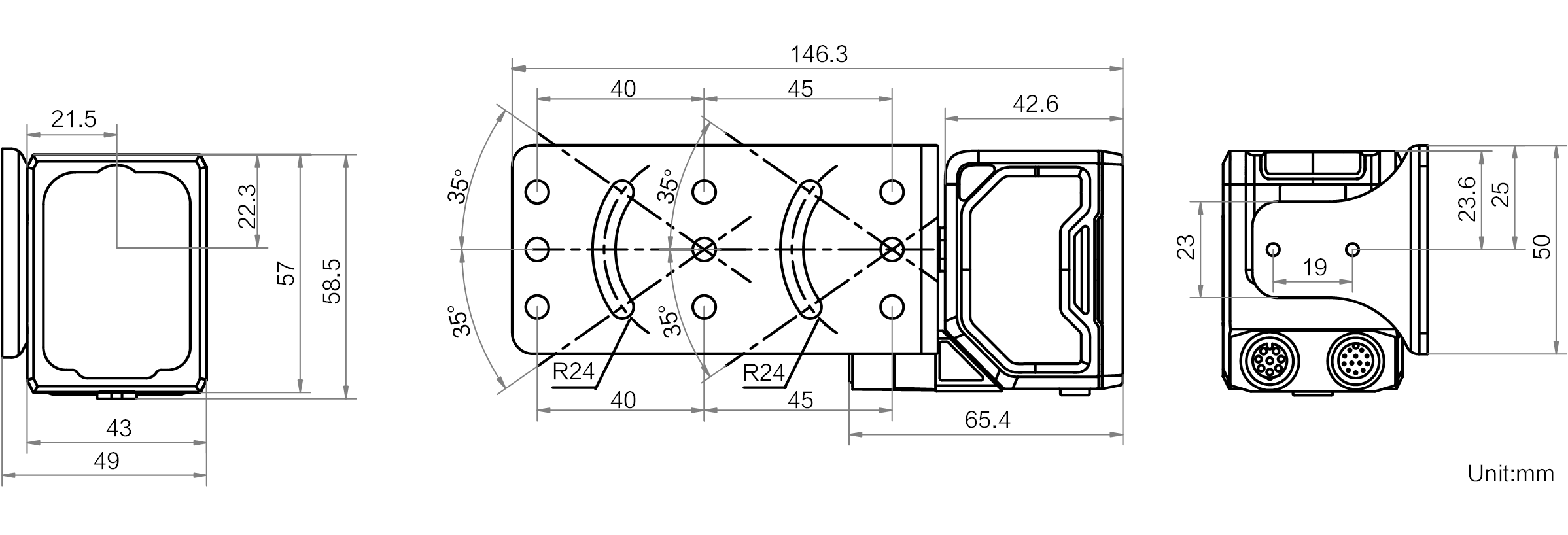

Dimensions

* The data involved in the product may cause Differences due to environmental and other factors. The company will not bear the consequences arising therefrom.

Ordering Model

MV-SC3013XC-12M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-SC3013XC-12M-WBN

Model

Model	MV-SC3013XC-12M-WBN
Name	SC3000 X Vision Sensor, 1.3MP, color, 12 mm Lenses, motorized focus

Tools

Vision Tools	Measurement: dot measurement, dot and line measurement, contrast measurement, gray area, pitch measurement, width measurement, brightness average, line angle, Color measurement, Color area, diameter measurement, straight line angle Yes: whether there are spots, whether there are edges, whether there are outlines, whether there are patterns, whether there are circles, whether there are straight lines, abnormal judgment, whether there are detection Counts: Spot count, Edge count, Outline count, Pattern count, Learning count, Color count Recognition: multi-target counting, code recognition, Color comparison, Color recognition, category recognition, registration classification, registration target detection, character recognition, character horizontal stripe detection, learning character recognition Logic: variable calculation, branch control, logical judgment, data formatting, conditional judgment, character comparison, combination judgment Positioning: calibration conversion, single point alignment, single point correction, single point grabbing, unit conversion, position correction Deep learning: classification, target detection Defect Tools: Anomaly Detection Industry Tools: Character recognition and defect detection
Solution Capability	Support solution import/export, can store up to 32 solutions
Communication Protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Camera

Sensor Type	CMOS, global shutter
Pixel Size	6.9 μm × 6.9 μm
Optical Format	1/1.45"
Resolution	1216 × 1024
Max. Acquisition Frame Rate	60 fps
Gain	0 dB ~ 15 dB
Exposure Time	6 μs ~ 1 sec
Pixel Format	RGB 8,Mono 8
Mono/Color	color

Electrical

Data Interface	Fast Ethernet(100Mbit/s)
Digital I/O	12-Pin M12Interface provides Power Supply source and I/O: Contains 3 optocoupler isolated inputs (LINE0/1/2 inputs), 3 optocoupler isolated outputs (LINE3/4/5 outputs), 1 RS-232 Interface Support triggering of the device via the top button
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 7W@24VDC (enable built-in fill light) Max. Power Consumption: 22W@24VDC (enable built-in fill light)

Mechanical

Lens Mount	M12-mount, mechanical focusing
Focal Length	12 mm
Lens Cover	Total transparency + polarization + diffusion Lens Cover
Light Source	Focus white light, optional red/blue/infrared
Aimer	1 LED
Indicator	360° visible body Indicator
Dimensions	Flat angle:80.1 mm × 43 mm × 44.3 mm Right angle:58.5 mm × 43 mm × 65.4 mm
Weight	Approximately 190 g
IP Rating	IP67(with Lens Cover and Cables installed correctly)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)
