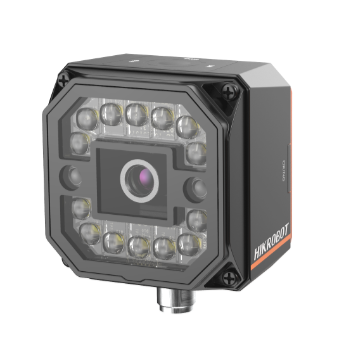

HIKROBOT SC3000 Series Vision Sensors

MV-SC3016C-12M-WBN

1408 × 1024, Color

Consulting quotation
MV-SC3016C-12M-WBN

Product introduction

Functional characteristics

  • Embedded hardware Platform can be used for high-speed image processing

  • Implanted high-precision positioning, measurement, and identification algorithms can be implemented to realize counting, defects, presence, positioning and other functions

  • IOInterface is rich, can be connected to multiple input and output signals

  • Rich status Indicator, allowing real-time viewing of the device status, making it easy for debugging and maintenance

  • Light Source is cleverly designed to ensure uniform brightness in the lighting area

  • Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, Various communication modes such as EtherNet/IP



Ordering Model

MV-SC3016C-12M-WBN


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors. The company will not bear the consequences.

Ordering Model

MV-SC3016C-12M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

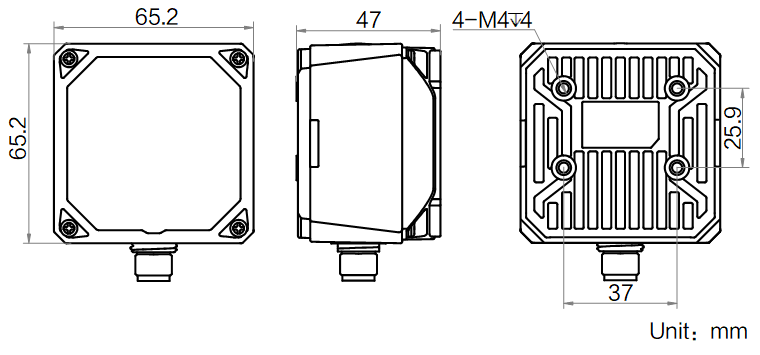

Dimensions

Overall size

Detailed parameters

Ordering Model MV-SC3016C-12M-WBN
Model
Model MV-SC3016C-12M-WBN
Name SC3000 Vision Sensor, 1.6MP, color, 12mmLenses, motorized focusing
Tools
Vision Tools Measurement: dot and line measurement, contrast measurement, gray area, pitch measurement, width measurement, average brightness, line angle, Color measurement, Color area, diameter measurement, straight line angle Yes: whether there are spots, whether there are edges, whether there are outlines, whether there are patterns, whether there are circles, whether there are straight lines, abnormal judgment, whether there are detection Counts: Spot count, Edge count, Outline count, Pattern count, Learning count, Color count Recognition: multi-target counting, code recognition, Color comparison, Color recognition, category recognition, registration classification, registration target detection, character recognition, character horizontal stripe detection, learning character recognition Logic: variable calculation, branch control, logical judgment, data formatting, conditional judgment, character comparison, combination judgment Positioning: calibration conversion, single point alignment, single point correction, single point grabbing, unit conversion, position correction Deep learning: classification, target detection Defect Tools: Anomaly Detection Industry Tools: Character recognition and defect detection
Solution Capability Support solution import/export, Storage of up to 32 solutions
Communication Protocol RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Camera
Sensor Type CMOS, global shutter
Pixel Size 3.45 μm × 3.45 μm
Optical Format 1/2.9"
Resolution 1408 × 1024
Max. Acquisition Frame Rate 60 fps
Gain 0 dB ~ 15 dB
Exposure Time 16 μs ~ 1 sec;35μs ~ 1 sec
Pixel Format RGB 8,Mono 8
Mono/Color Color
Electrical
Data Interface Fast Ethernet(100 Mbit/s)
Digital I/O 17-pin M12Interface provides Power Supply, Ethernet, digital IO, Serial Port functions:2 input signals (Line 0/1), 3 output signals (Line 5/6/7), 3 configurable inputs/outputs (Line 2/3/4), 1 external button input (BUTTON) NPN or PNP type of output signal can be equipped with
Power Supply 24 VDC
Power Consumption Average Power Consumption:13.8 W@24 VDC(built-in fill light enabled) Max. Power Consumption:42 W@24 VDC(built-in fill light enabled)
Mechanical
Lens Mount M12-mount, mechanical focus
Focal Length 12 mm
Lens Cover Transparent Lens Cover, optional semi-polarized Lens Cover or full-polarized Lens Cover
Light Source 14 LEDs: white (default factory)/red/blue
Indicator Power Supply Indicator PWR, Network Indicator LNK, Status Indicator STS, Results Display Indicator OK/NG
Dimensions 65.2 mm × 65.2 mm × 47 mm
Weight About 280 g
IP Rating IP67 (When Lenses and Cables are installed correctly)
Temperature Operating Temperature0 ~ 50 °C, Storage Temperature-30 ~ 70 °C
Humidity 20% ~ 95% RH No condensation
Vibration Resistance Bare metal meets IEC 60068-2-6:2007 (10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance Bare metal meets IEC 60068-2-27:2008 (30 g/11 ms, half sine wave, 6 axial directions, 500 shocks in each axial direction, A total of 3000 shocks)
General Specifications
Software SCMVS
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
