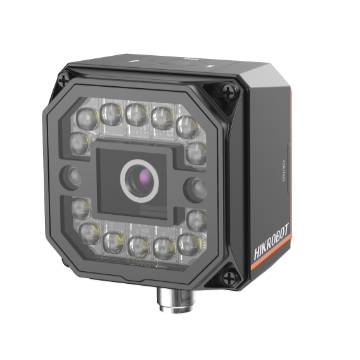

Name: HIKROBOT SC3000 Series Vision Sensors
Brand: HIKROBOT
SKU: MV-SC3013XC-05M-MED
Availability: InStock

Product introduction

Functional characteristics

Embedded hardware Platform can be used for high-speed image processing
Implanted high-precision positioning, measurement, and identification algorithms can be implemented to realize counting, defects, presence, positioning and other functions
IOInterface is rich, can be connected to multiple input and output signals
Rich status Indicator, allowing real-time viewing of the device status, making it easy for debugging and maintenance
Light Source is cleverly designed to ensure uniform brightness in the lighting area
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, Various communication modes such as EtherNet/IP

Ordering Model

MV-SC3016M-06M-WBN

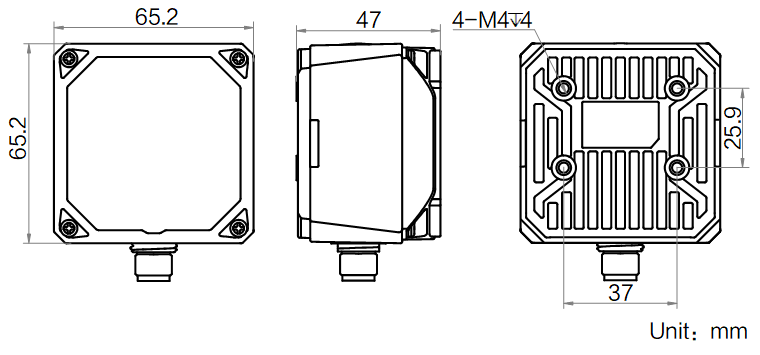

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors. The company will not bear the consequences.

MV-SC3016M-06M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-SC3016M-06M-WBN

Model

Model	MV-SC3016M-06M-WBN
Name	SC3000 Vision Sensor, 1.6MP, black and white, 6mmLenses, motorized focusing

Tools

Vision Tools	Measurement: point-to-point measurement, point-to-line measurement, contrast measurement, gray area, pitch measurement, width measurement, average brightness, line angle, diameter measurement, straight line angle Yes: whether there are spots, whether there are edges, whether there are outlines, whether there are patterns, whether there are circles, whether there are straight lines, abnormal judgment, whether there are detection Counting: blob counting, edge counting, contour counting, pattern counting, learning counting Recognition: multi-target counting, code recognition, category recognition, registration classification, registered target detection, character recognition, character horizontal stripe detection, learning character recognition Logic: variable calculation, branch control, logical judgment, data formatting, conditional judgment, character comparison, combination judgment Positioning: calibration conversion, single point alignment, single point correction, single point grabbing, unit conversion, position correction Deep learning: classification, target detection Defect Tools: Anomaly Detection Industry Tools: Character recognition and defect detection
Solution Capability	Support solution import/export, Storage of up to 32 solutions
Communication Protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Camera

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Digital I/O	17-pin M12Interface provides Power Supply, Ethernet, digital IO, Serial Port functions:2 input signals (Line 0/1), 3 output signals (Line 5/6/7), 3 configurable inputs/outputs (Line 2/3/4), 1 external button input (BUTTON) NPN or PNP type of output signal can be equipped with
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 13.8W@24 VDC(built-in fill light enabled) Max. Power Consumption:42 W@24 VDC(enabling built-in fill light)

Mechanical

Lens Mount	M12-mount, mechanical focus
Focal Length	6 mm
Lens Cover	Transparent Lens Cover, optional semi-polarized Lens Cover or full-polarized Lens Cover
Light Source	14 LEDs: white (default factory)/red/blue/near-infrared
Indicator	Power Supply Indicator PWR, Network Indicator LNK, Status Indicator STS, Results Display Indicator OK/NG
Dimensions	65.2 mm × 65.2 mm × 47 mm
Weight	Approximately 280 g
IP Rating	IP67 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature0 ~ 50 °C, Storage Temperature-30 ~ 70 °C
Humidity	20% ~ 95% RH No condensation
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007 (10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008 (30 g/11 ms, half sine wave, 6 axial directions, 500 shocks in each axial direction, A total of 3000 shocks)
