Name: HIKROBOT SC2000 Series Vision Sensors
Brand: HIKROBOT
SKU: MV-SC2013XM-05M-WBN
Availability: InStock

Product introduction

Functional characteristics

Embedded hardware Platform can be used for high-speed image processing
Implanted high-precision positioning, measurement, and recognition algorithms can realize counting, presence, measurement, recognition and other functions
IOInterface is rich, can be connected to multiple input and output signals
Rich status indicator can be used to view the device status in real time, making it convenient for debugging and maintenance
Light Source is cleverly designed to ensure uniform brightness in the lighting area
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, Various communication modes such as EtherNet/IP

Ordering Model

MV-SC2004EC-15S-WBN

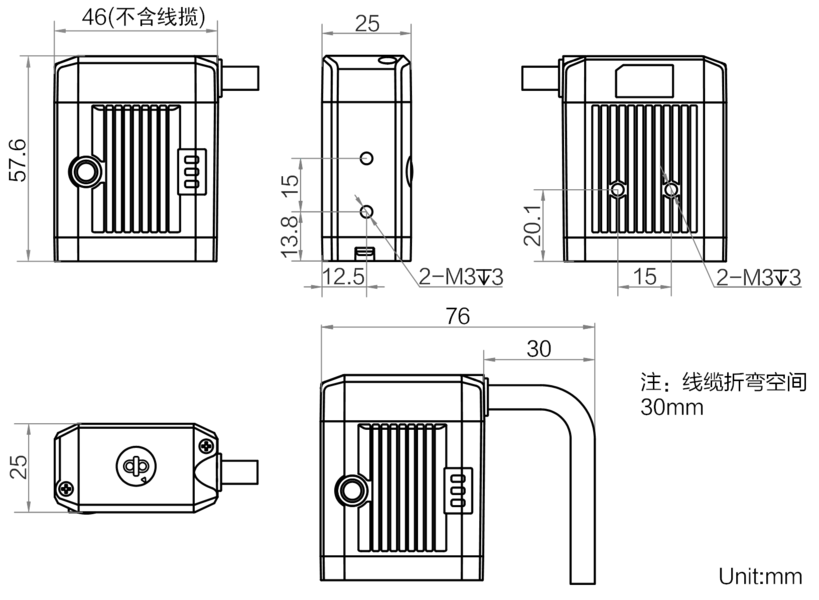

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors. The company will not bear the consequences.

MV-SC2004EC-15S-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-SC2004EC-15S-WBN

Model

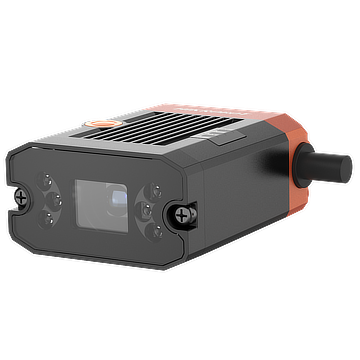

Model	MV-SC2004EC-15S-WBN
Name	SC2000E Vision Sensor, 400,000 pixels, color, 15mmLenses, manual focus

Tools

Vision Tools	Counts: Spot counting, edge counting, pattern counting, contour counting, Color counting Yes or no: whether there is a circle, whether there is a straight line, whether there is a spot, whether there is an edge, whether there is a pattern, whether there is an outline, abnormal judgment Positioning: Position correction Logic: conditional judgment, logical judgment, character comparison, variable calculation, combination judgment, branch control, data formatting Measurement: line angle, diameter measurement, brightness average, contrast measurement, width measurement, dot and line measurement, gray area, straight line angle, pitch detection, Color area, dot and dot measurement, Color measurement Recognition: Character recognition, registration classification, Color comparison, Color recognition, category recognition
Solution Capability	Support scheme import/export, can store up to 8 schemes, 40 modules
Communication Protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, FINS, MELSEC/SLMP, Keene KV

Camera

Electrical

Data Interface	Fast Ethernet(100Mbit/s)
Digital I/O	17-pin M12Interface provides Power Supply, Ethernet, digital IO, Serial Port functions: Contains 1 non-isolated input (LINE2), 1 non-isolated output (LINE3), 2 bidirectional configurable non-isolated I/O(LINE0/1), 1 RS-232, 1 external button input (BUTTON)
Power Supply	12 ~ 24 VDC
Power Consumption	Average Power Consumption:6 W@24 VDC Max. Power Consumption:22 W@24 VDC

Mechanical

Lens Mount	M12-mount, manual focusing
Focal Length	14.8 mm
Lens Cover	Clear Lens Cover
Light Source	White light
Indicator	Power Supply Indicator PWR, Network Indicator LNK, Status Indicator STS
Dimensions	46 mm × 57.6 mm × 25 mm
Weight	Approximately 220 g
IP Rating	IP65
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH No condensation
Vibration Resistance	Meet IEC 60068-2-6:2007 Bare metal (10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008 (30 g/11 ms, half sine wave, 6 axial directions, 500 shocks in each axial direction, A total of 3000 shocks)
