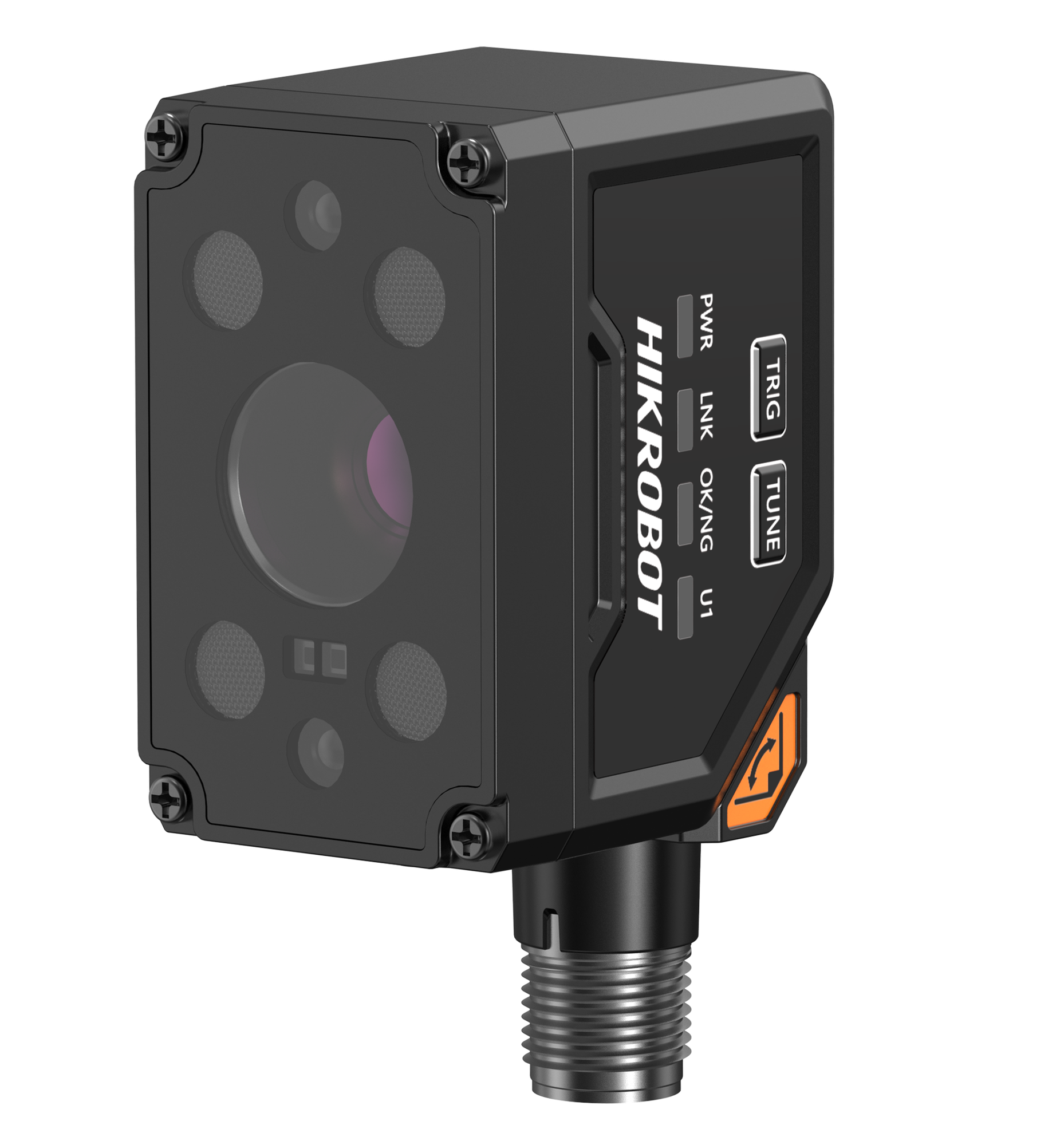

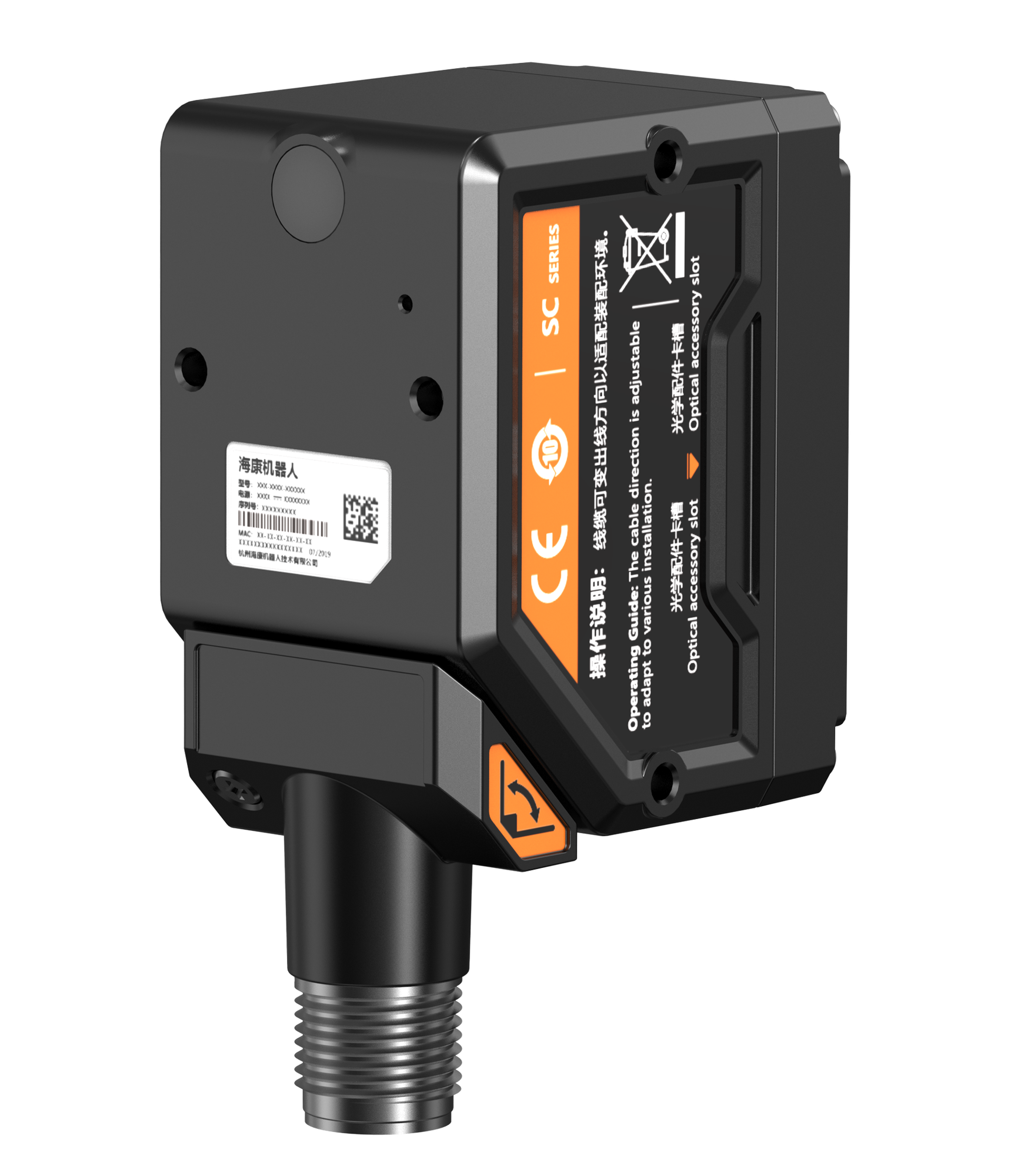

Name: HIKROBOT SC2000 Series Vision Sensors
Brand: HIKROBOT
SKU: MV-SC2013XM-05M-WBN
Availability: InStock

Product introduction

Functional characteristics

Embedded hardware Platform can be used for high-speed image processing
Implanted high-precision positioning, measurement, and recognition algorithms can realize counting, presence, measurement, and recognition functions
Rich I/O Interface, can access multiple input and output signals
Rich status Indicator, allowing real-time viewing of the device status, making it easy for debugging and maintenance
Light Source is cleverly designed to ensure uniform brightness in the lighting area
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, Various communication modes such as Ethernet/IP

Ordering Model

MV-SC2023XC-05M-WBN

Dimensions

* The data involved in the product may cause differences and due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SC2023XC-05M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-SC2023XC-05M-WBN

Model

Model	MV-SC2023XC-05M-WBN
Name	SC2000X Vision Sensor, 2.4 MP, Color, 5 mm Lenses, Motorized Focus

Tools

Vision Tools	Measurement: dot measurement, dot and line measurement, contrast measurement, gray area, pitch measurement, width measurement, brightness average, line angle, Color measurement, Color area, diameter measurement, straight line angle Yes: Yes or no detection, no spots, no edges, no contours, no patterns, no abnormal judgment, no circles, no straight lines Counting: learning counting, blob counting, edge counting, contour counting, pattern counting, Color counting Recognition: multi-object counting, code recognition, Color comparison, Color recognition, category recognition, character recognition Logic: variable calculation, branch control, logical judgment, data formatting, conditional judgment, character comparison, combination judgment Positioning: calibration conversion, single point alignment, single point correction, single point grabbing, unit conversion, position correction Defect Tools: Anomaly Detection
Solution Capability	Support solution import/export, can store up to 16 solutions and 40 modules
Communication Protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV, etc.

Camera

Sensor Type	CMOS, global shutter
Pixel Size	2.2 μm ×2.2 μm
Optical Format	1/3.52"
Resolution	1920 × 1280
Max. Acquisition Frame Rate	75 fps
Gain	0 dB to 48 dB
Exposure Time	36 μs to 100 ms
Pixel Format	Mono 8,RGB 8
Mono/Color	color

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Digital I/O	17-Pin M12Interface provides Power Supply source and I/O: Contains 2 isolated inputs (Line 0/1), 2 isolated outputs (Line 2/3), 1 RS-232, supports triggering of the device via side buttons
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 5W@24VDC (enable built-in fill light) Max. Power Consumption: 12W@24VDC (enable built-in fill light)

Mechanical

Lens Mount	M12-Mount, mechanical focusing
Focal Length	5 mm
Lens Cover	Transparent Lens Cover, optional semi-polarized and full-polarized
Light Source	White Light Source, you can choose from red, blue, infrared, ultraviolet or red and blue light
Aimer	2 green LEDs
Indicator	Power Supply Indicator PWR, Network Indicator LNK, Result Display Indicator OK/NG, User Indicator U1
Dimensions	Flat angle:72.7 mm × 31.5 mm × 41 mm Right angle:51.5 mm × 31.5 mm × 61 mm
Weight	118 g
IP Rating	IP65
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)
