HIKROBOT CU Series Industrial Area Scan Cameras

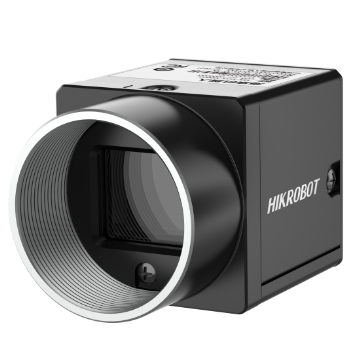

MV-CU013-80UC

1280 × 1024, USB3.0, Color

Consulting quotation
MV-CU013-80UC

Product introduction

Functional characteristics

  • Optimized hardware design, stable Performance, low Power Consumption design

  • Supports automatic or manual adjustment of Gain, Exposure Time, manual adjustment of LUT, Gamma, etc.

  • Supports custom ROI, supports horizontal Mirror and vertical Mirror

  • Mechanical Compact, Dimensions29 mm × 29 mm × 30 mm, suitable for smaller installation requirements

  • Compatible with USB3 Vision protocol and GenlCamStandard, You can connect to third-party SoftwarePlatform



Order Model

MV-CU013-80UC


Dimensions


* Data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-CU013-80UC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CU013-80UC
Product Model MV-CU013-80UC
Sensor Model SS
Resolution 1280 × 1024
Max. Frame Rate 240.4 fps
Data Interface USB3.0
Mono/Color Color

Data download

Product manual· SDK ·Development documentation
