Name: HIKROBOT SC5000X Series Smart Cameras
Brand: HIKROBOT
SKU: MV-SC5020XM-00C-NNN
Availability: InStock

Product introduction

Functional characteristics

Embedded AI deep learning algorithms can realize character recognition, object recognition, defect detection and other functions
Integrated VM algorithm PlatformSoftware, allowing free use of 140+ algorithm functions
IO Interface is rich and can be connected to Multiple input and output signals
Supports multiple industrial communication modes, and provides worry-free docking
Rich status Indicator, making debugging and maintenance
IP67 protection, We are not afraid of the harsh industrial application environment

Ordering Model

MV-SC5020XC-12M-WBN

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SC5020XC-12M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

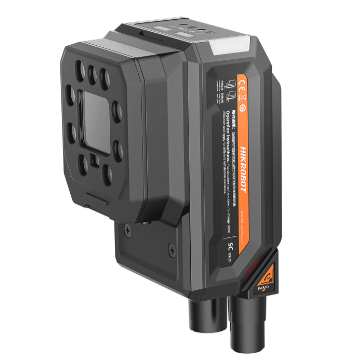

Ordering Model MV-SC5020XC-12M-WBN

Model

Model	MV-SC5020XC-12M-WBN
Name	SC5000 XSmart Cameras, 2MP, color, 12 mm Lenses, motorized focus

Tools

Function Modules	VisionMaster Algorithm Development Platform(including deep learning modules)
Communication Protocol	TCP, UDP, ModBus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.

Camera

Sensor Type	CMOS, global shutter
Pixel Size	3.45 μm × 3.45 μm
Optical Format	1/2.53"
Resolution	1600 × 1216
Max. Acquisition Frame Rate	100 fps
Gain	0 dB ~ 37 dB
Exposure Time	15 μs ~ 1 sec
Pixel Format	Mono 8, RGB 8
Mono/Color	color

Platform

Memory	8 GB
Storage	64 GB

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (Line0/1/2), 3 optocoupler isolated outputs (Line3/4/5), and 1 RS-232
Power Supply	24 VDC
Power Consumption	Typical Power Consumption:12.3 W@24 VDC(enabled with own Light Source) Max. Power Consumption:48 W@24 VDC(enabled with own Light Source)

Mechanical

Lens Mount	M12-Mount, mechanical focusing
Focal Length	12 mm
Lens Cover	Semi-polarized Lens Cover, optional transparent and full-polarized Lens Cover
Light Source	White Light Source, optional red, blue or infrared light
Indicator	Power Supply Indicator PWR, Network Indicator LNK, User Indicator U1/U2
Dimensions	Flat angle:112.3 mm × 54 mm × 60.2 mm Right angle:88.7 mm × 54 mm × 82.5 mm
Weight	Approximately 370 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)
