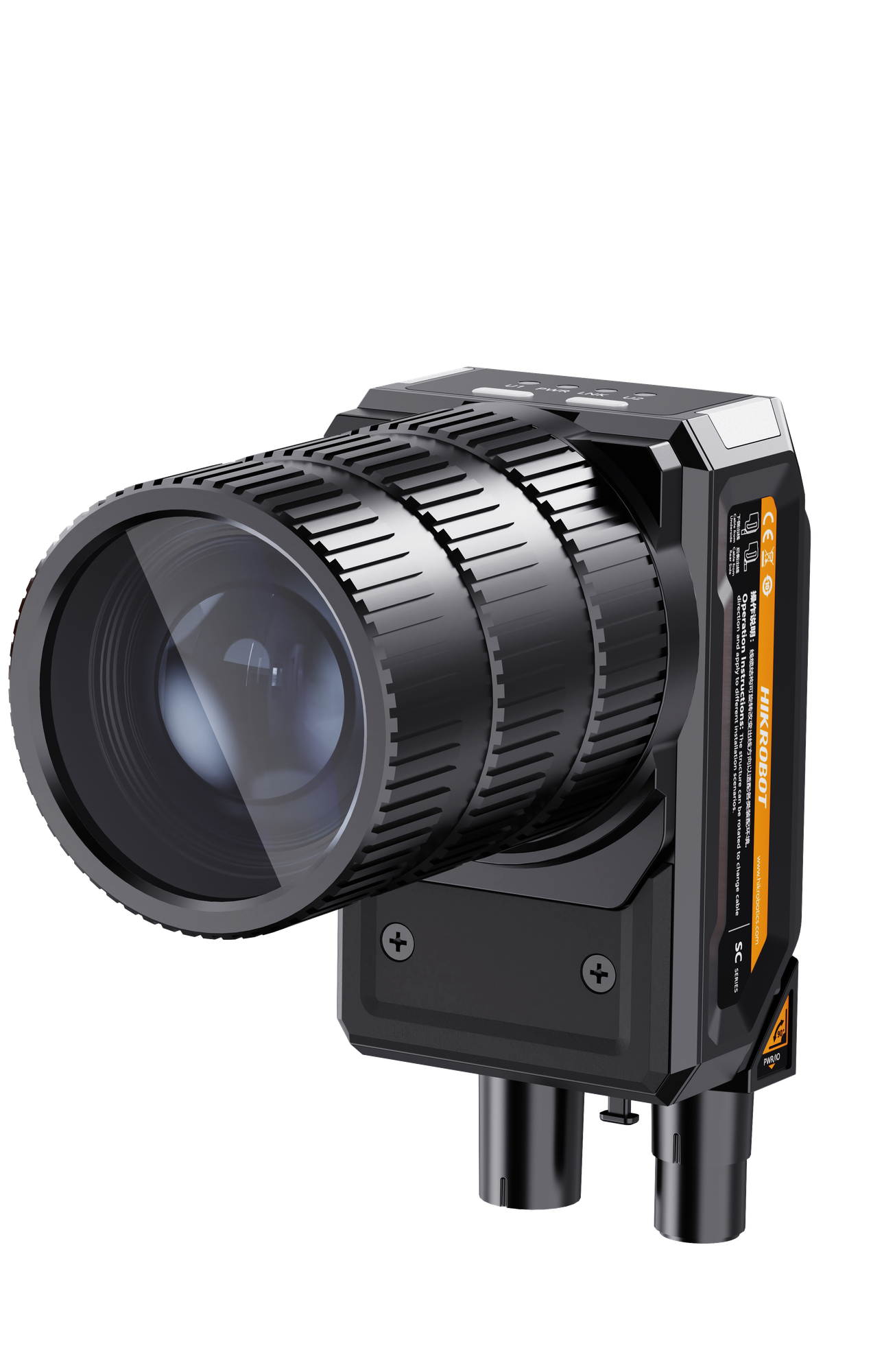

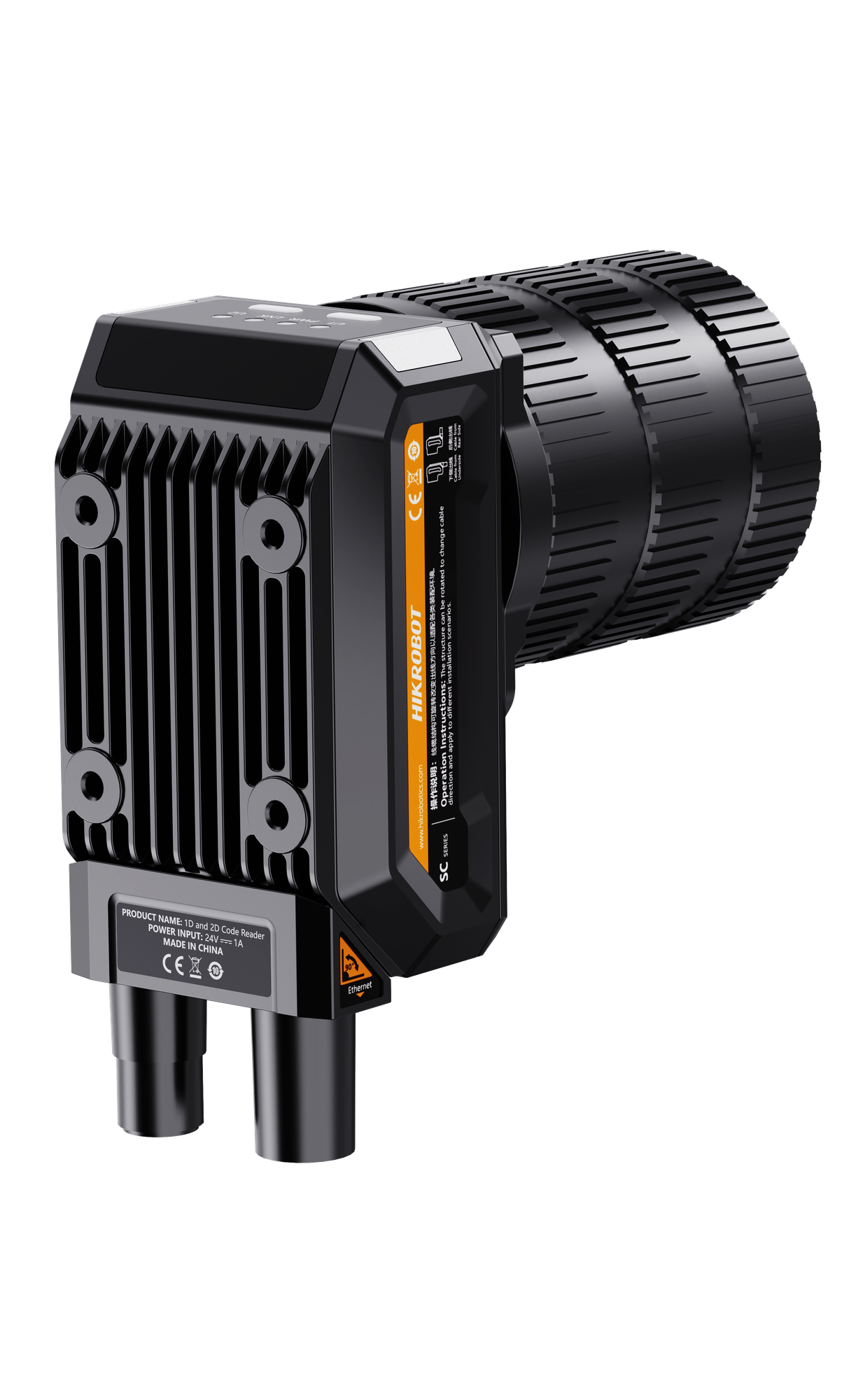

HIKROBOT SC5000X Series Smart Cameras

MV-SC5050XM-00C-NNN

2432 × 2048, Black and white

Consulting quotation
MV-SC5050XM-00C-NNN

Product introduction

Functional characteristics

  • Embedded AI deep learning algorithms can realize character recognition, object recognition, defect detection and other functions

  • Integrated VM algorithm PlatformSoftware, allowing free use of 140+ algorithm functions

  • IO Interface is rich and can be connected to Multiple input and output signals

  • Supports multiple industrial communication modes, and provides worry-free docking

  • Rich status Indicator, making debugging and maintenance

  • IP67 protection, We are not afraid of the harsh industrial application environment



Ordering Model

MV-SC5050XM-00C-NNN


Dimensions


* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SC5050XM-00C-NNN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-SC5050XM-00C-NNN
Model
Model MV-SC5050XM-00C-NNN
Name SC5000 XSmart Cameras, 5MP, black and white, C-port, no LensesLight Source
Tools
Function Modules VisionMaster Algorithm Development Platform(including deep learning modules)
Communication Protocol TCP, UDP, ModBus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera
Sensor Type CMOS, global shutter
Pixel Size 3.45 μm × 3.45 μm
Optical Format 1/1.45"
Resolution 2432 × 2048
Max. Acquisition Frame Rate 60 fps
Gain 0 dB ~ 37 dB
Exposure Time 15 μs ~ 1 sec
Pixel Format Mono 8
Mono/Color black and white
Platform
Memory 8 GB
Storage 64 GB
Electrical
Data Interface Gigabit Ethernet(1000Mbit/s)
Digital I/O 12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (Line0/1/2), 3 optocoupler isolated outputs (Line3/4/5), and 1 RS-232
Power Supply 24 VDC
Power Consumption Typical Power Consumption:10 W@24 VDC Max. Power Consumption:14.4 W@24 VDC
Mechanical
Lens Mount C-Mount
Lens Cover Transparent Lens Cover
Light Source Without Light Source
Indicator Power Supply Indicator PWR, Network Indicator LNK, User Indicator U1/U2
Dimensions Straight angle:112.3 mm × 54 mm × 110 mm Right angle:88.7 mm × 54 mm × 110 mm
Weight Approximately 370 g
IP Rating IP67(with proper Lenses waterproof cover installed)
Temperature Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity 20% ~ 95%RH non-condensing
Vibration Resistance Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)1
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
