HIKROBOT SC5000X Series Smart Cameras

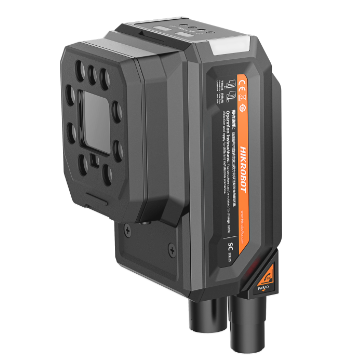

MV-SC5050XM-PPM-16M-WBN

2432 × 2048, Black and white

Consulting quotation
MV-SC5050XM-PPM-16M-WBN

Product introduction

Functional characteristics

  • Built-in multi-pose positioning and grabbing algorithm, which can realize pose estimation, hand-eye calibration, high-precision positioning and other functions

  • Integrated VM algorithm PlatformSoftware and SCCameraClientSoftware, allowing you to freely use 140+ vision algorithm modules

  • Rich IO Interface, can access multiple input and output signals

  • Support multiple industrial communication modes, worry-free docking

  • Rich status Indicator, easy debugging and maintenance

  • IP67 protection, We are not afraid of the harsh industrial application environment



Ordering Model

MV-SC5050XM-PPM-16M-WBN


Dimensions


* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SC5050XM-PPM-16M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-SC5050XM-PPM-16M-WBN
Model
Model MV-SC5050XM-PPM-16M-WBN
Name SC 5000X Max version for positioning, 5MP, black and white, 16mmLenses, motorized focusing
Tools
Function Modules Vision Master Algorithm Development Platform(including 3D hand-eye calibration module, reference relative pose estimation module and 6D pose estimation module) and SCCameraClientSoftware
Communication Protocol TCP, UDP, ModBus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Software capabilities Support advanced Software functions, including multi-machine settings and multiple photos
Camera
Sensor Type CMOS, global shutter
Pixel Size 3.45 μm × 3.45 μm
Optical Format 1/1.45"
Resolution 2432 × 2048
Max. Acquisition Frame Rate 60 fps
Gain 0 dB ~ 37 dB
Exposure Time 15 μs ~ 1000000 μs
Pixel Format Mono 8
Mono/Color black and white
Platform
Memory 8 GB
Storage 64 GB
Electrical
Data Interface Gigabit Ethernet(1000Mbit/s)
Digital I/O 12-Pin M12Interface provides Power Supply source and I/O, including 3 optocoupler isolated inputs (Line0/1/2), 3 optocoupler isolated outputs (Line3/4/5), and 1 RS-232
Power Supply 24 VDC
Power Consumption Typical Power Consumption:12.3 W@24 VDC(enabled with own Light Source) Max. Power Consumption:48 W@24 VDC(enabled with own Light Source)
Mechanical
Focal Length 16 mm
Lens Mount M12-Mount, mechanical focusing
Lens Cover Semi-polarized Lens Cover, optional transparent and full-polarized Lens Cover
Light Source White Light Source, optional red, blue or infrared light
Indicator Power Supply Indicator PWR, Network Indicator LNK, User Indicator U1/U2
Dimensions Flat angle:112.3 mm × 54 mm × 60.2 mm Right angle:88.7 mm × 54 mm × 82.5 mm
Weight Approximately 370 g
IP Rating IP67
Temperature Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity 20% ~ 95%RH non-condensing
Vibration Resistance Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)
Additional Information
Certification CE,KC
