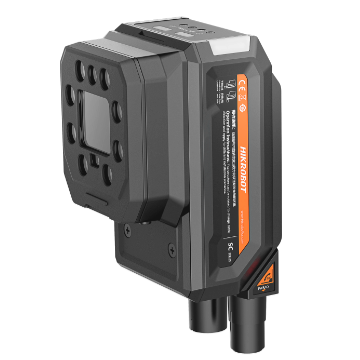

Name: HIKROBOT SC5000X Series Smart Cameras
Brand: HIKROBOT
SKU: MV-SC5020XM-00C-NNN
Availability: InStock

Product introduction

Functional characteristics

Embedded AI deep learning algorithms can realize character recognition, object recognition, defect detection and other functions
Integrated VM algorithm PlatformSoftware, allowing free use of 140+ algorithm functions
IO Interface is rich and can be connected to Multiple input and output signals
Supports multiple industrial communication modes, and provides worry-free docking
Rich status Indicator, making debugging and maintenance
IP67 protection, We are not afraid of the harsh industrial application environment

Ordering Model

MV-SC5060XM-08M-WBN

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SC5060XM-08M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-SC5060XM-08M-WBN

Model

Model	MV-SC5060XM-08M-WBN
Name	SC5000XSmart Cameras, 6MP, B & W, 8 mm Lenses, Motorized Focus

Tools

Function Modules	Vision Master Algorithm Development Platform(including deep learning modules)
Communication Protocol	TCP, UDP, ModBus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.

Camera

Sensor Type	CMOS, roller blind
Pixel Size	2 μm × 2 μm
Optical Format	1/2.4"
Resolution	3200 × 1920
Max. Acquisition Frame Rate	15 fps
Gain	0 dB ~ 34 dB(Digital Gain+ Analog Gain)
Exposure Time	72 μs ~ 150 ms
Pixel Format	Mono 8
Mono/Color	black and white

Platform

Memory	8 GB
Storage	64 GB

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (Line0/1/2), 3 optocoupler isolated outputs (Line3/4/5), and 1 RS-232
Power Supply	24 VDC
Power Consumption	Average Power Consumption:12.3 W@24 VDC(built-in Light Source enabled) Max. Power Consumption:48 W@24 VDC(enabled with own Light Source)

Mechanical

Lens Mount	M12-Mount, mechanical focusing
Focal Length	8 mm
Lens Cover	Semi-polarized Lens Cover, optional transparent and full-polarized Lens Cover
Light Source	White Light Source, optional red, blue or infrared light
Indicator	Power Supply Indicator PWR, Network Indicator LNK, User Indicator U1/U2
Dimensions	Flat angle:112.3 mm × 54 mm × 60.2 mm Right angle:88.7 mm × 54 mm × 82.5 mm
Weight	Approximately 370 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)
