HIKROBOT Style Series Lighting

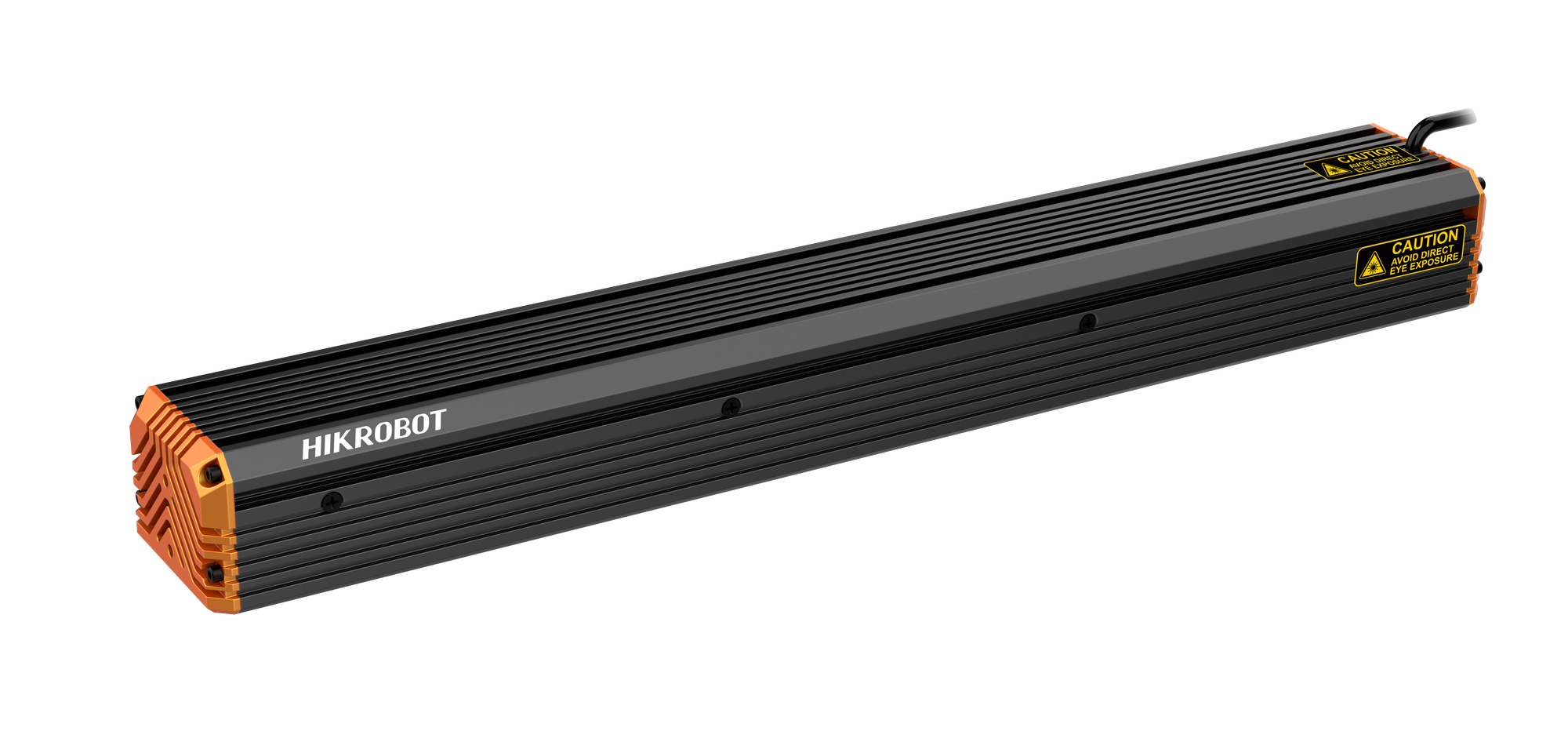

MV-LLDS-H-100-30-IR850

HIKROBOT-style MV-*-H-*Light Source currently covers Ring Lights MV-LRDS-H-*-W, MV-LRSS-H-*-W series, strip-shaped Light SourceMV-LLDS-H-*-*-W series and Line Lights MV-LTDS-H-*-W series. The new family-style design is efficient and stable, meeting the needs of most conventional visual lighting applications.

Consulting quotation
MV-LLDS-H-100-30-IR850

Product introduction

Functional characteristics

  • Free adjustment of illumination direction and Illumination Angle

  • Support for multi-sided installation

  • High-quality LED bead particles with high brightness



Ordering Model

MV-LLDS-H-100-30-IR850


Dimensions


* Product data may be caused by factors such as the environment. Differences and , and the company will not bear the consequences arising therefrom.

Ordering Model

MV-LLDS-H-100-30-IR850

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

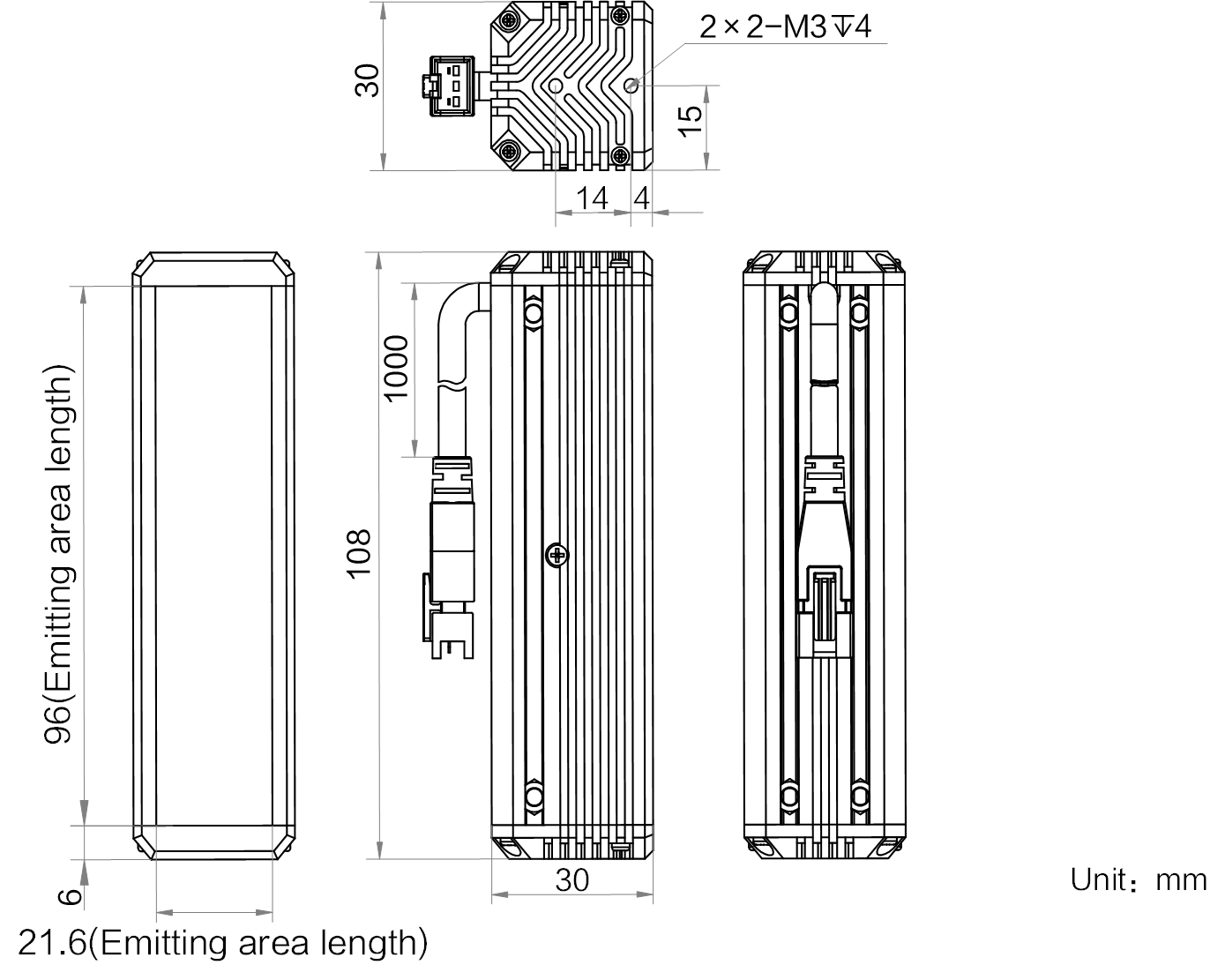

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LLDS-H-100-30-IR850
Model
Model MV-LLDS-H-100-30-IR850
Name MV-LLDS-H-100-30-IR850
Performance
Color IR850
Optimal Working Distance 30 ~ 500 mm
Wavelength 850 nm
Color Temperature 6000 ~ 7500K
Electrical
Power 5.5 W
Interface Type SMR-03V-B
Mechanical
Dimensions 108 mm × 30 mm × 30 mm
Emitting Area Size 96 mm × 21.6 mm
LED Rows 4
Weight 0.2 kg
Power Cable Length 1 m
Temperature Operating Temperature0~40°C, Storage Temperature-20~60°C
Humidity 20~90%RH No condensation
Diffuser PMMA

Data download

Product manual· SDK ·Development documentation
