HIKROBOT Lighting Accessories

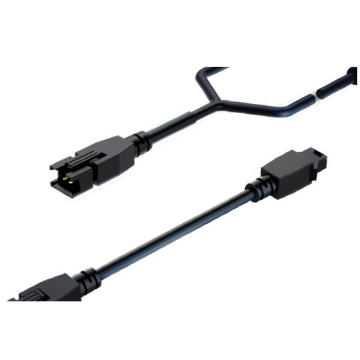

MV-LW-005-1-S

In complex vision application scenarios, Lighting Accessories (such as Lighting Extension Cable) provide more variety of application extensions for the use of Light Source and Light Source controllers, adapting to longer transmission distances, Interface extensions, and other usage needs.

Consulting quotation
MV-LW-005-1-S

Product introduction

Functional characteristics

  • Provide a variety of lengths to meet the installation methods of Light Source at different distances

  • Provide a variety of Lighting Interfaces to adapt to various Light Source Interface Types



Ordering Models

MV-LW-005-1-S


Dimensions


* The data involved in the product may be caused by factors such as the environment. differences and , and the company will not bear the consequences.

Ordering Model

MV-LW-005-1-S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LW-005-1-S
Model
Model MV-LW-005-1-S
Name Lighting Extension Cable, 1 turn 1,5 m, SMR-03V-BInterface
Physical Specifications
Number of Channels 1
Connector A SMR-03V-BC
Connector B SMR-03V-B
Length 5 m
Cable Diameter φ4 mm
Cables material TPU
±90° Bending Cycles 2 million times
Min. Bending Radius 48 mm
Maximum number of pluggable and pluggable times 20,000 times
Cables flammability rating 3 A
Electrical Specifications
Insulation characteristics ≥ 10 MΩ
Voltage resistance 300
Mechanical
Temperature Operating Temperature-20 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity 20% ~ 85%RH
IP Rating IP30 (When installed correctly)
General Specifications
Certification RoHS

Data download

Product manual· SDK ·Development documentation
