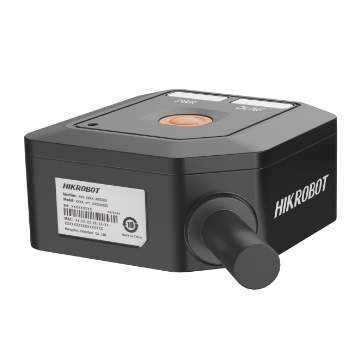

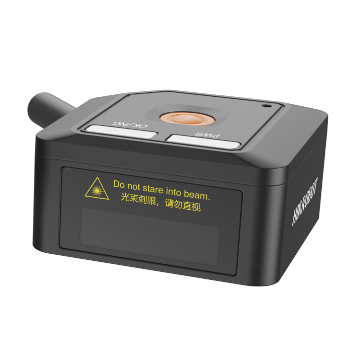

Name: HIKROBOT ID800 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID803M-03S-WBN-SR
Availability: InStock

Product introduction

Functional characteristics

Ultra-miniaturization, adapting to various types of machines and compact workstations
Using a self-developed high-performance barcode recognition algorithm, it can efficiently read inkjet trouble codes in light industry, enterprises, retail and other scenarios
Comes with an orange round light aiming to clearly indicate the target field of view, and is fast to install and debug
Provides a buzzer and status Indicator to remind the operating status, which is convenient for on-site debugging
Supports USB-HID, USB-CDC, RS-232, RJ45 Multiple output modes

Ordering Model

MV-ID803M-03S-WBN-SR

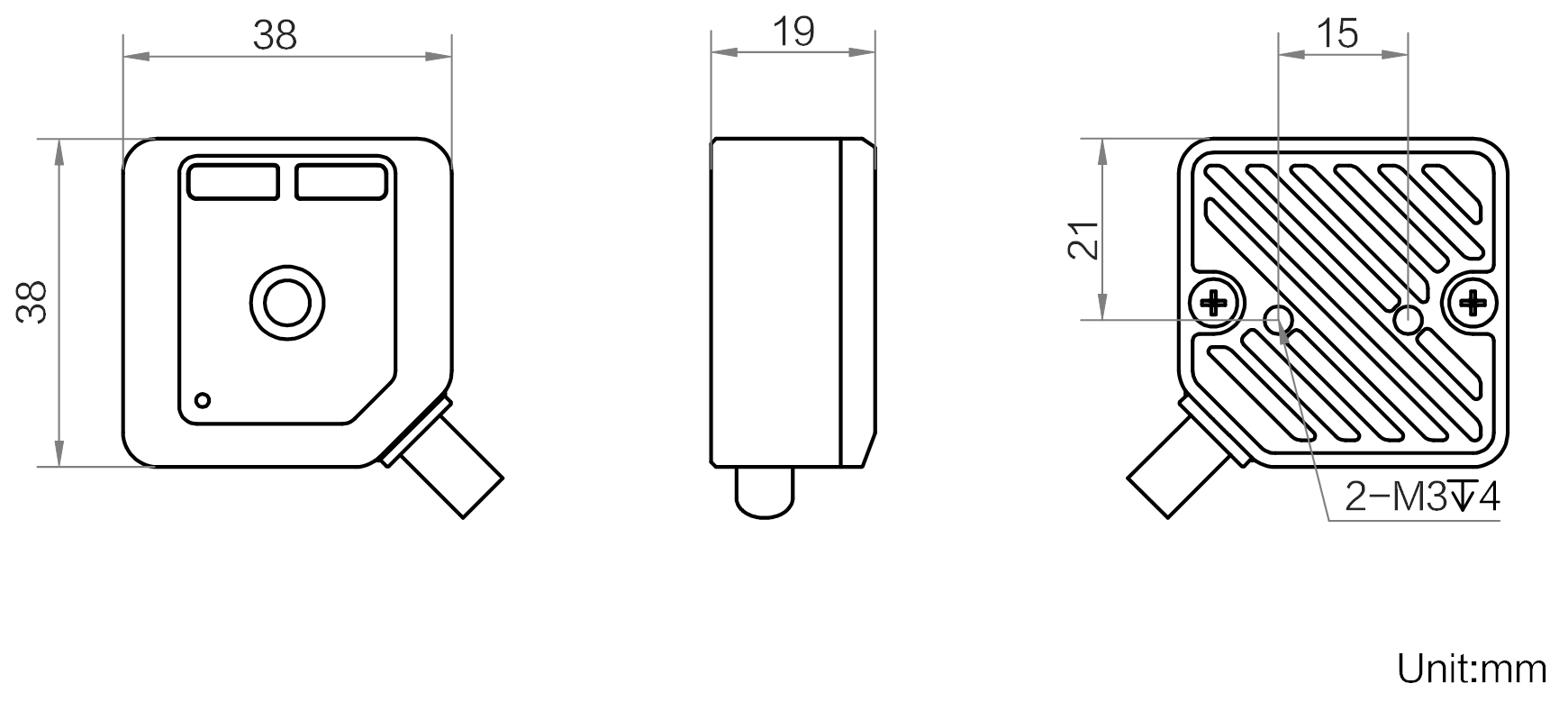

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID803M-03S-WBN-SR

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID803M-03S-WBN-SR

Model

Model	MV-ID803M-03S-WBN-SR
Name	30WResolution, 3 mm Focal Length, white light, SR, network port, RJ45 network port open static Cables

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128(including GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE Matrix QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), Micro QR, AZTEC, Han Xin Stacking QR Code:PDF417
Min. Barcode Resolution	One-dimensional code:6 mil QR code:17 mil
Max. Processing Frame Rate	60 fps
Max. Reading Speed	15 yards/second
Sensor	Black and white, 1/6", 3.7 μm × 3.7 μm
Resolution	640 × 480
Depth of Field	EAN13(13 mil):40 mm ~ 250 mm Code 39(5 mil):60 mm ~ 110 mm Code 128(10 mil):40 mm ~ 250 mm Data Matrix(10 mil):50 mm ~ 140 mm QR Code(15 mil):25 mm ~ 215 mm
Exposure Time	60 us ~7000 us
Gain	1 dB ~ 15 dB

Electrical

Data Interface	RJ45
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP
Digital I/O	1 non-isolated input (pin 1 input), 1 non-isolated output (pin 3 output), 1 RS-232 Support triggering of the device through the top button
Power Supply	12 ~ 24 VDC
Power Consumption	Max. Power Consumption:2.5 W@12 VDC

Mechanical

Focal Length	3.1 mm
Lens Mount	M10-Mount
Lens Cover	Transparent Lens Cover
Ambient Light	0 ~ 100000 lux
Light Source	warm-white LED
Aimer	Orange round light aiming
Housing Material	metal
Dimensions	38 mm × 38 mm × 19 mm
Status Indicator	LEDIndicator, buzzer
Weight	About 40 g(excluding Cables)
IP Rating	IP54
Temperature	Operating Temperature-20 ~ 50°C, Storage Temperature-40 ~ 70°C
Humidity	5% ~ 95%RH non-condensing
Vibration Resistance	10 Hz ~ 55 Hz, full amplitude 1.5 mm for 2 hours in each direction X, Y, and Z (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock Resistance	30 g / 11 ms, half sine wave, six axes, 500 shocks in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019)
