Name: HIKROBOT SC1000 Series Vision Sensors
Brand: HIKROBOT
SKU: MV-SC1003M-03S-WBN-SR
Availability: InStock

Product introduction

Functional characteristics

Ultra-miniaturization, suitable for all types of machines and compact workstations
Using embedded hardware Platform, high-speed image processing
Implanted high-precision positioning and measurement algorithms, which can realize counting, presence, measurement and other functions
Comes with LED aiming to clearly indicate the target field of view, and is fast to install and debug
Provides Indicator to remind the operating status for easy on-site debugging
Supports Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, Various communication modes such as Serial Port

Ordering Model

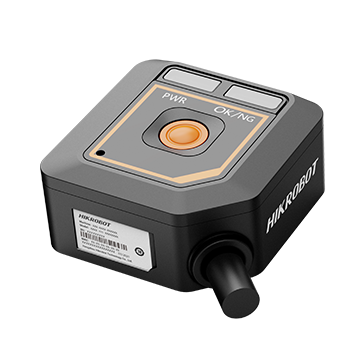

MV-SCA002C-03S-WBN-SR

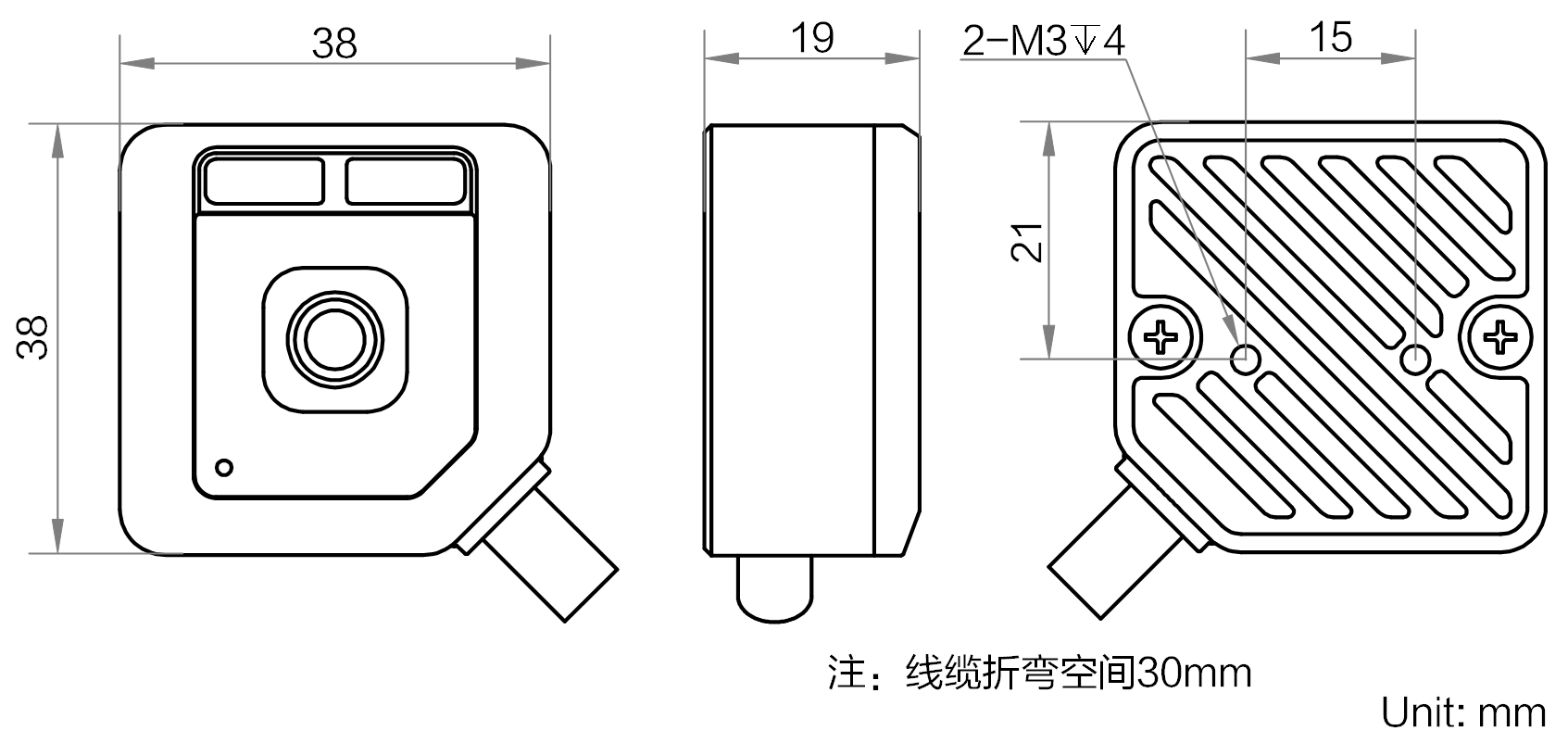

Dimensions

* Data involved in the product may cause differences due to environmental factors. The company will not bear the consequences.

MV-SCA002C-03S-WBN-SR

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-SCA002C-03S-WBN-SR

Model

Model	MV-SCA002C-03S-WBN-SR
Name	SCA Vision Sensor, 300,000 pixels, color, 3 mm Lenses, 240mm to Focal Length

Tools

Vision Tools	Measurement: dot and line measurement, contrast measurement, gray area, pitch measurement, width measurement, average brightness, line angle, diameter measurement, straight line angle, Color measurement, Color area Yes or no: whether there are spots, whether there are edges, whether there are contours, whether there are circles, whether there are straight lines, abnormal judgment Counts: Spot Counts, Edge Counts, Outline Counts, Color Counts Identification: registration classification, Color comparison, category identification Logic: variable calculation, logical judgment, conditional judgment, combination judgment, data formatting Positioning: Position correction
Solution Capability	Support solution import/export, can store up to 8 solutions and 40 modules
Communication Protocol	Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, KEYENS KV

Camera

Electrical

Data Interface	Fast Ethernet(100Mbit/s)
Digital I/O	Green terminal provides Power Supply, digital IO, and Serial Port functions: includes 1 input (LINE0), 1 output (LINE1), and 1 RS-232 Support triggering of the device through the top button
Power Supply	12 ~ 24 VDC
Power Consumption	Average Power Consumption:1.5 W@12 VDC Max. Power Consumption:3 W@12 VDC

Mechanical

Lens Mount	M5.8-mount
Focal Length	3.1 mm
Working Distance	240 mm
Lens Cover	Transparent Lens Cover
Light Source	white LED
Aimer	1 LED
Indicator	Power Supply IndicatorPWR, Result shows Indicator OK/NG
Dimensions	38 mm × 38 mm × 19 mm
Weight	About 40 g(excluding Cables)
IP Rating	IP54
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH non-condensing
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)
