Name: HIKROBOT Photoelectric Sensors
Brand: HIKROBOT
SKU: MV-PE5101
Availability: InStock

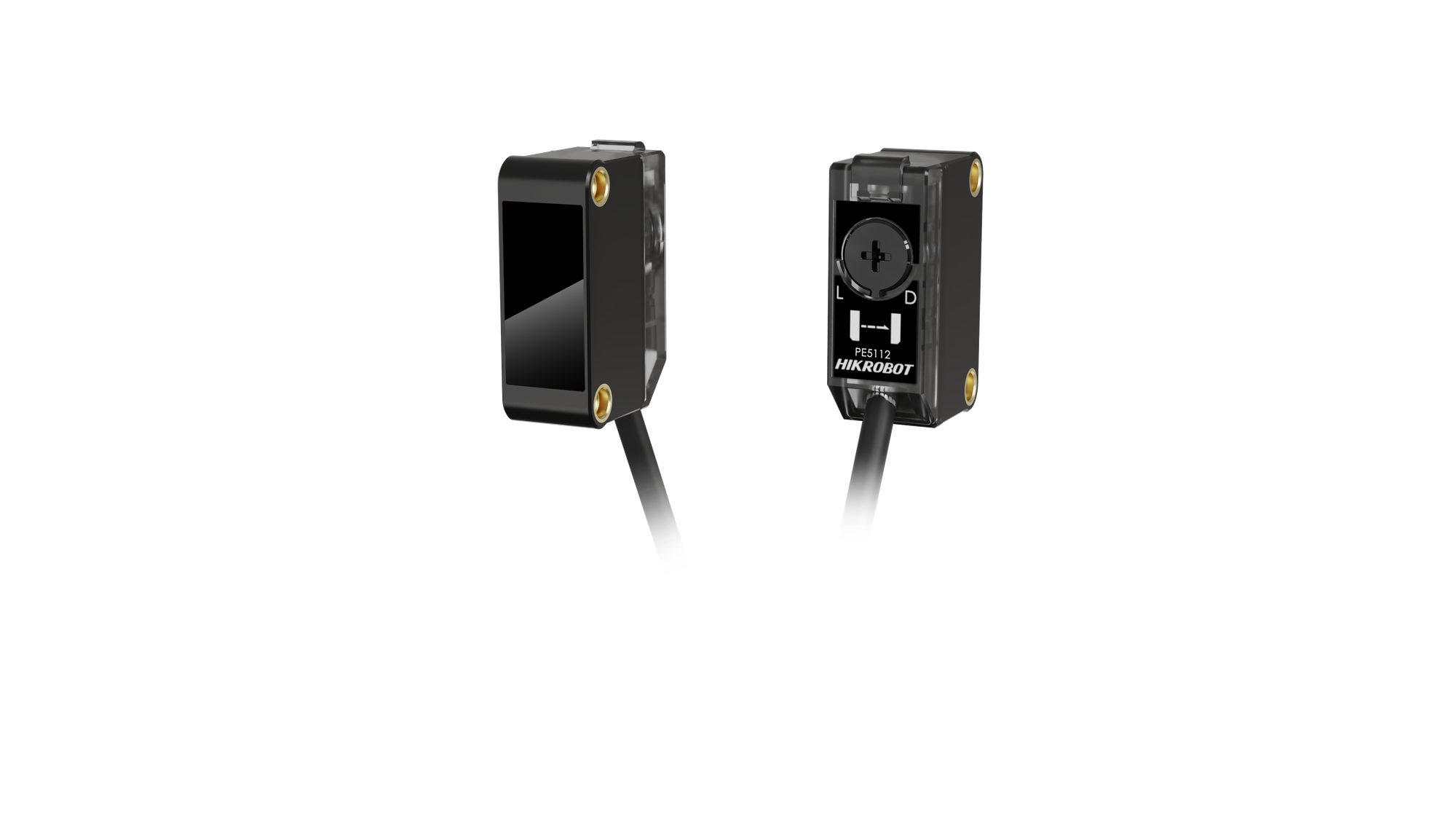

MV-PE5112-P

PE series Compact Photoelectric Sensors, Standard size achieves IP67 protection, can be stably installed in various industrial occasions, and can also suppress sunlight, high-frequency LEDLight Source and strong electromagnetic interference. At the same time, with the help of spot spots and lasers, stable detection of various materials and scenes is achieved.

Product introduction

Functional characteristics

Large infrared spot, easy alignment
Strong anti-interference ability, no effect from direct sunlight
Support sensitivity adjustment

Ordering Model

MV-PE5112-P

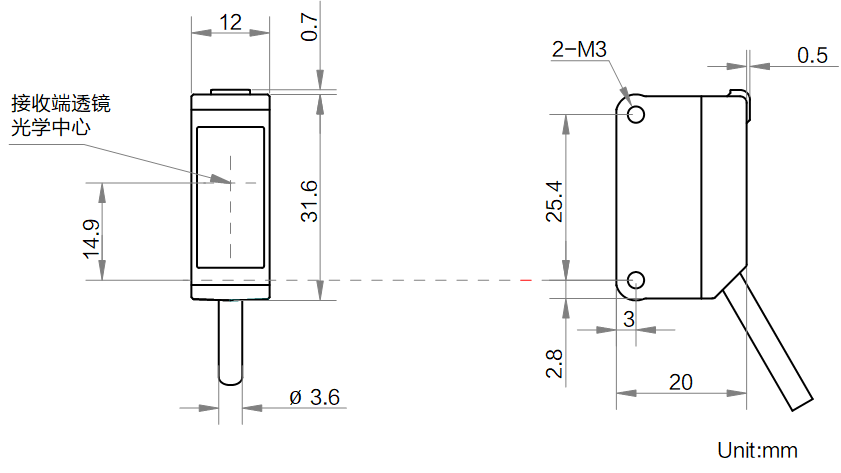

Dimensions

* Product data may be caused by environmental and other factors. The company will not bear the consequences arising from differences and .

Ordering Model

MV-PE5112-P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

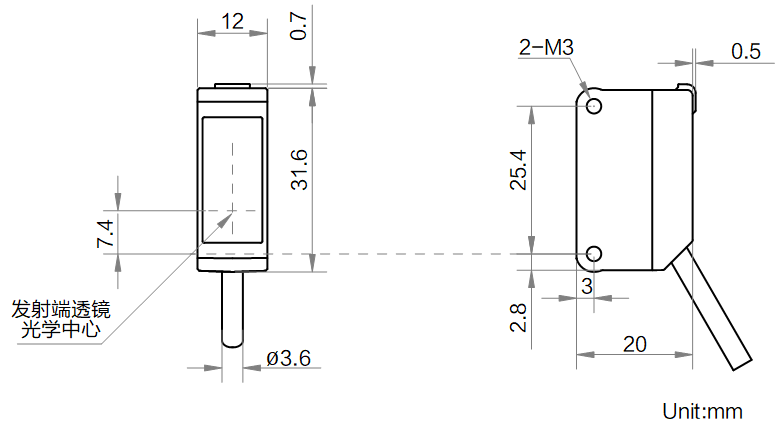

Dimensions

Detailed parameters

Ordering Model MV-PE5112-P

Model

Model	MV-PE5112-P
Name	Cross-emitting Compact Photoelectric Sensors (30 meters, Infrared)

Performance

Detection distance	30 m
Standard test object	Opaque with φ15 mm or more
Output method	PNP-NO/NC (Dark on/bright on switchable)
Light Source	Infrared light 850 nm
Response time	≤500 us
Repeatability accuracy (perpendicular to the detection axis)	≤0.5 mm
Sensitivity adjuster	200° knob

Electrical

Power supply voltage	DC12~24V±10% ripple (Vp-p) less than 10%
Residual voltage	≤2 V
Working current	≤20 mA
Load current	≤100 mA
Loop protection	Power supply reverse connection protection, output short circuit protection, Output reverse connection protection
Insulation resistance	More than 20 MΩ (between the power connection terminal and the housing)
Withstand voltage	1000V AC,1 minute (between the power connection terminal and the housing)

Mechanical

Dimensions	20 mm × 12 mm × 32.3 mm
Weight	Light projector: approximately 45g(including wires) Light receiver: about 45g(including wire)
Temperature	Operating Temperature-25 ~ 55°C,StorageTemperature-30 ~ 70°C
Humidity	35 ~ 85%RH
Ambient Light	Sunlight:<10000 lux Incandescent lamp: <3000 lux
IP Rating	IP67
Material	Housing: Plastic PC Lens: Acrylic
Indicator	Action Indicator: Orange (light receiver) Stability Indicator: Green (light receiver) Power Indicator: Orange (light projector)
Connection method	Wire lead-out type (standard 2 meters)
Vibration	10 to 500 Hz, upper and lower amplitude 1.5 mm, 2 hours in X, Y, and Z directions
Impact	500m/s2, 3 times in X, Y, and Z directions
