Name: HIKROBOT Photoelectric Sensors
Brand: HIKROBOT
SKU: MV-PE5101
Availability: InStock

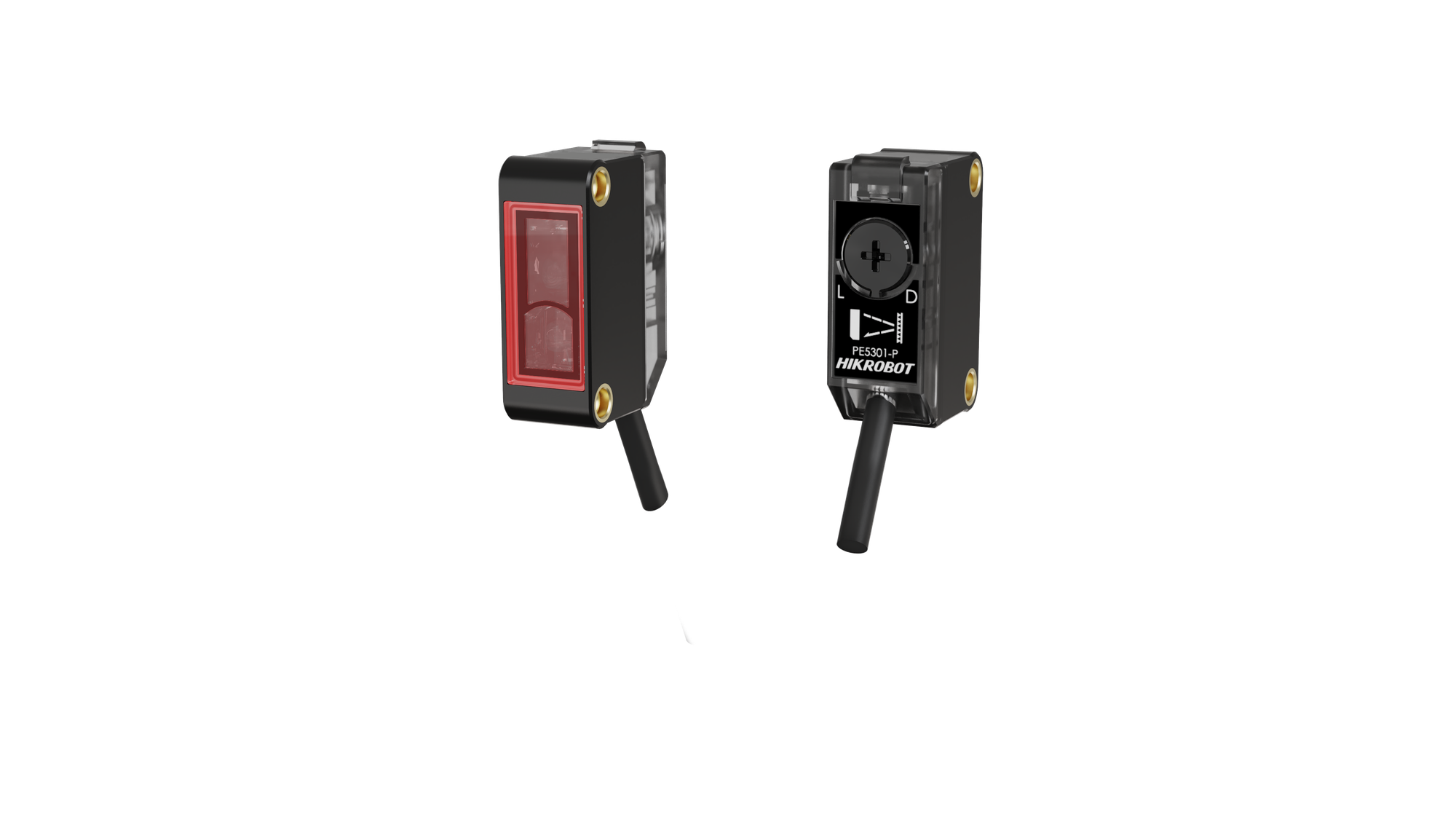

MV-PE5301-P

PE series Compact Photoelectric Sensors, Standard size achieves IP67 protection, can be stably installed in various industrial occasions, and can also suppress sunlight, high-frequency LEDLight Source and strong electromagnetic interference. At the same time, with the help of spot spots and lasers, stable detection of various materials and scenes is achieved.

Product introduction

Functional characteristics

Clear red light spot, including polarization filter
Strong anti-interference ability to cope with complex lighting environments
Stable detection of highly anti-reflective objects

Ordering Model

MV-PE5301-P

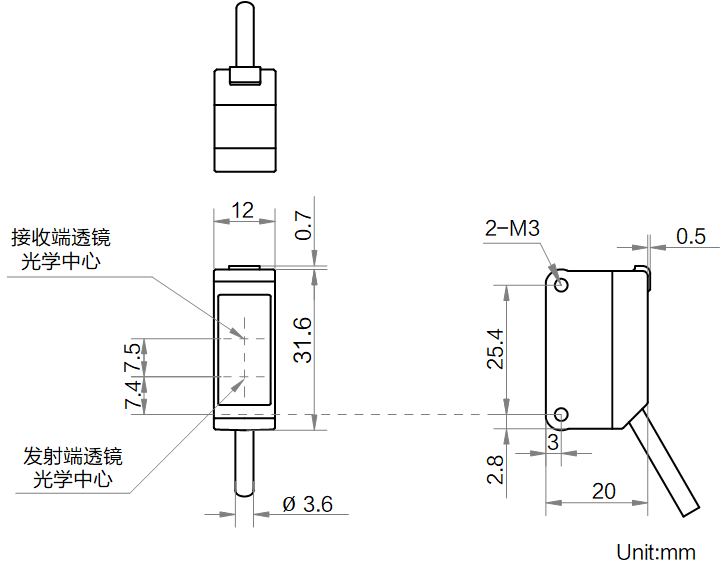

Dimensions

* Product data may be caused by Differences and Due to environmental and other factors, the company will not bear the consequences.

Ordering Model

MV-PE5301-P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-PE5301-P

Model

Model	MV-PE5301-P
Name	Retroreflective Compact Photoelectric Sensors (3 meters, red light, polarizing filter, PNP output)

Performance

Detection distance	0.1 ~ 4 m
Standard test substance	Opacities, semitransparent bodies with φ50 mm or more, Mirror surface
Output method	PNP-NO/NC (Dark on/bright on switchable)
Light Source	Red light 650 nm
Response time	≤500 us
Repeatability accuracy (perpendicular to the detection axis)	≤0.5 mm

Electrical

Supply voltage	DC12~24V±10% Ripple (Vp-p) below 10%
Residual voltage	≤2 V
Working current	≤20 mA
Load current	≤100 mA
Loop protection	Reverse connection protection, overcurrent protection, Overvoltage protection
Insulation resistance	More than 20 MΩ (between the power connection terminal and the housing)
Resistance to voltage	1000V AC,1 minute (between the power connection terminal and the housing)

Mechanical

Dimensions	20 mm × 12 mm × 31.6 mm
Weight	Approximately 45 g(including wires)
Temperature	Operating Temperature-25 ~ 55°C,StorageTemperature-30 ~ 70°C
Humidity	35 ~ 85%RH
Ambient Light	Sunlight:<10000 lux Incandescent lamp: <3000 lux
IP Rating	IP67
Material	Housing: Plastic PC Lens: Acrylic
Indicator	Action Indicator: Orange Stable Indicator: Green
Connection method	Wire lead-out type (standard 2 meters)
Vibration	10 to 500 Hz, upper and lower amplitude 1.5 mm, 2 hours in X, Y, and Z directions
Impact	500m/s2, 3 times in X, Y, and Z directions
