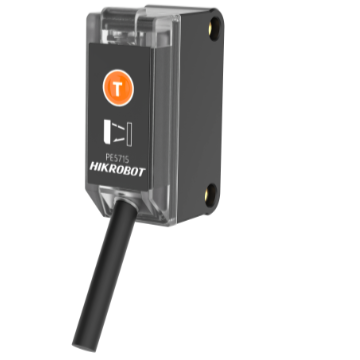

Name: HIKROBOT Photoelectric Sensors
Brand: HIKROBOT
SKU: MV-PE5101
Availability: InStock

MV-PE5715

PE series Compact Photoelectric Sensors, Standard size achieves IP67 protection, can be stably installed in various industrial occasions, and can also suppress sunlight, high-frequency LEDLight Source and strong electromagnetic interference. At the same time, with the help of spot spots and lasers, stable detection of various materials and scenes is achieved.

Product introduction

Functional characteristics

Time-of-flight principle, not affected by material and Color
Button teaching, simple to use
Light/dark on switching, PNP/NPN switching, frame rate switching, one machine has multiple functions

Ordering Model

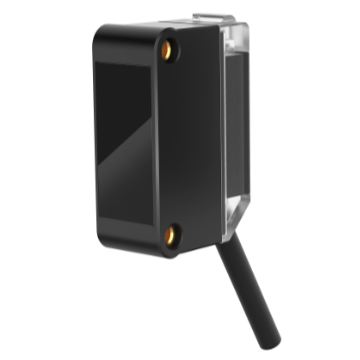

MV-PE5715

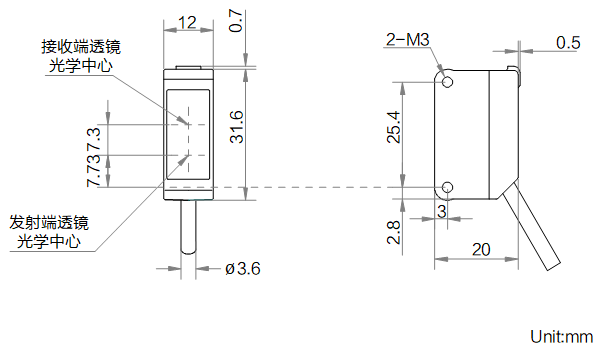

Dimensions

* The data involved in the product may cause Differences due to environmental and other factors, and the company will not bear the consequences.

Ordering Model

MV-PE5715

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-PE5715

Model

Model	MV-PE5715
Name	Time-of-Flight Compact Photoelectric Sensors (5m/IR/CLASS1)

Performance

Detection distance	50 ~ 5000 mm
Standard test object	100 mm x 100 mm 90% Standard reflector
Output method	NPN/PNP switchable, Dark on/bright on switchable
Light Source	Infrared laser 905 nm
Response time	500 μs/10 ms switchable
Laser Safety Class	Class 1
Setting method	Single teaching button

Electrical

Supply voltage	12~24V DC±10%
Residual voltage	≤2 VDC
Working current	≤35 mA@12 V ≤20 mA@24 V
Load current	≤100 mA
Loop protection	Reverse connection protection, overcurrent protection, Overvoltage protection
Insulation resistance	20 MΩ or more (between the power connection terminal and the housing)
Voltage resistance	1000V AC,1 minute (between the power connection terminal and the housing)

Mechanical

Dimensions	20 mm × 12 mm × 31.6 mm
Weight	Approximately 45 g(including wires)
Temperature	Operating Temperature-10 ~ 50°C,StorageTemperature-30 ~ 70°C
Humidity	35 ~ 85%RH
Ambient Light	Sunlight:<100klux
IP Rating	IP67
Material	Housing: Plastic PC Lens: Acrylic
Indicator	Action Status Indicator: Orange Power supply working Indicator: Green
Connection method	Wire lead-out type (standard 2 meters)
Vibration	10 to 500 Hz, upper and lower amplitude 1.5 mm, 2 hours in X, Y, and Z directions
Impact	500m/s2, 3 times in X, Y, and Z directions
