Name: HIKROBOT SVC2000 Series
Brand: HIKROBOT
SKU: MV-SVC2506-08G60-128G
Availability: InStock

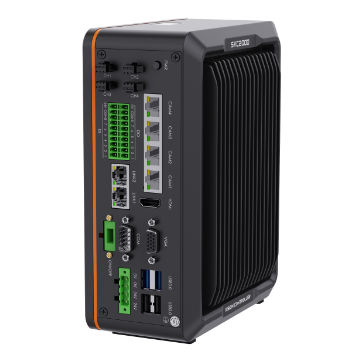

MV-SVC2509-16G60-512G

The SVC2000 Series Smart Vision Controllers are developed based on high-performance embedded processors. With powerful hardware Performance, and combined with embedded VMSoftware, AI+ traditional algorithm vision inspection can be realized without additional graphics cards.

Product introduction

Functional characteristics

8-core Processor, powerful computing Performance
Embedded VMSoftware, rich functions, stable operation
Small size, rich interfaces
Low Power Consumption, no fan, quiet stability
8 Input and 8 Output GPIOs, 4-channel Light Source control, meet visual inspection needs

Ordering Model

MV-SVC2509-16G60-512G

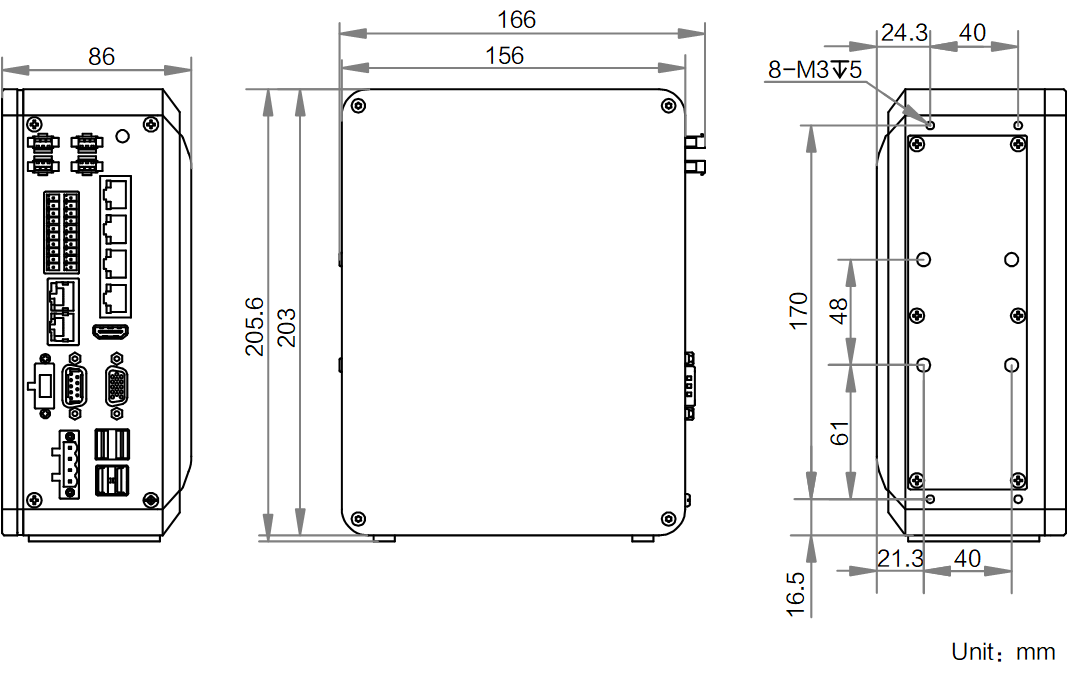

Dimensions

* The data involved in the product may cause differences and due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-SVC2509-16G60-512G

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-SVC2509-16G60-512G

Model

Model	MV-SVC2509-16G60-512G
Name	4Camera network port, 1 configuration network port, 1 communication network port, 16GB +64G EMMC +512G SSD, support 7100proEncryption

Tools

Function Modules	VisionMaster Algorithm Platform(including deep learning module)
Communication Protocol	TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.

Performance

Processor	8-core ARM
Memory	16 GB
eMMC	64 GB
Storage	512 GB SSD
Operating System	Linux system

External Interfaces

Display Interface	1 HDMI port, 1 VGA port Maximum support for 1920 × 1080@30Hz
Digital I/O	Support for 8 optocoupler isolated inputs Supports 8 optocoupler isolated outputs
Network Interface	6 Gigabit ports:LINK1 is used for VM configuration,LINK2 is used for communication with external devices,CAM1/2/3/4 is used for connecting Camera
USB Interface	2 USB 2.0 Interfaces 2 USB3.0 Interfaces
Serial Port	1 RS-232, switchable to RS-485/RS-422
Lighting Interface	4 24V constant voltage Lighting Interfaces, controllable brightness, maximum single current of 3 A, maximum total Power Consumption of 80 W Supports externally triggered strobe and normally-on mode switching

Electrical

Typical Power Consumption	24 VDC
Power Supply	60 W(without using Light Source)

Mechanical

Dimensions	166 mm × 205.6 mm × 86 mm
Weight	about 2 kg
Temperature	Operating Temperature 0 °C ~50 °C, Storage Temperature-30°C ~ 70°C
Humidity	20%~80% RH No condensation
