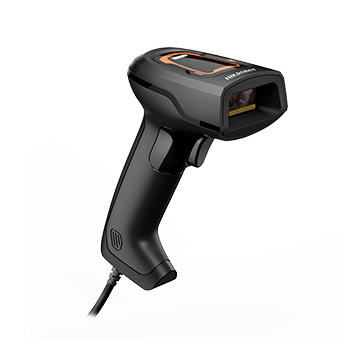

Name: HIKROBOT IDH2000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH2000/03SR/03WN/U
Availability: InStock

Product introduction

Functional characteristics

adopts a self-developed high-performance barcode recognition algorithm to efficiently read inkjet trouble codes in light industry, enterprises, retail and other scenarios
The algorithm is highly robust and can effectively deal with barcode contamination, defects, low contrast and other situations
Supports multiple output modes of USB-HID, USB-CDC, and RS-232 §
The appearance adopts a wire separation design. Easy to replace and use
Support IP42 protection level and 1.8-meter Drop Height
Support buzzer and Indicator multiple status indications

Ordering Model

MV-IDH2000/03SR/03WN/U

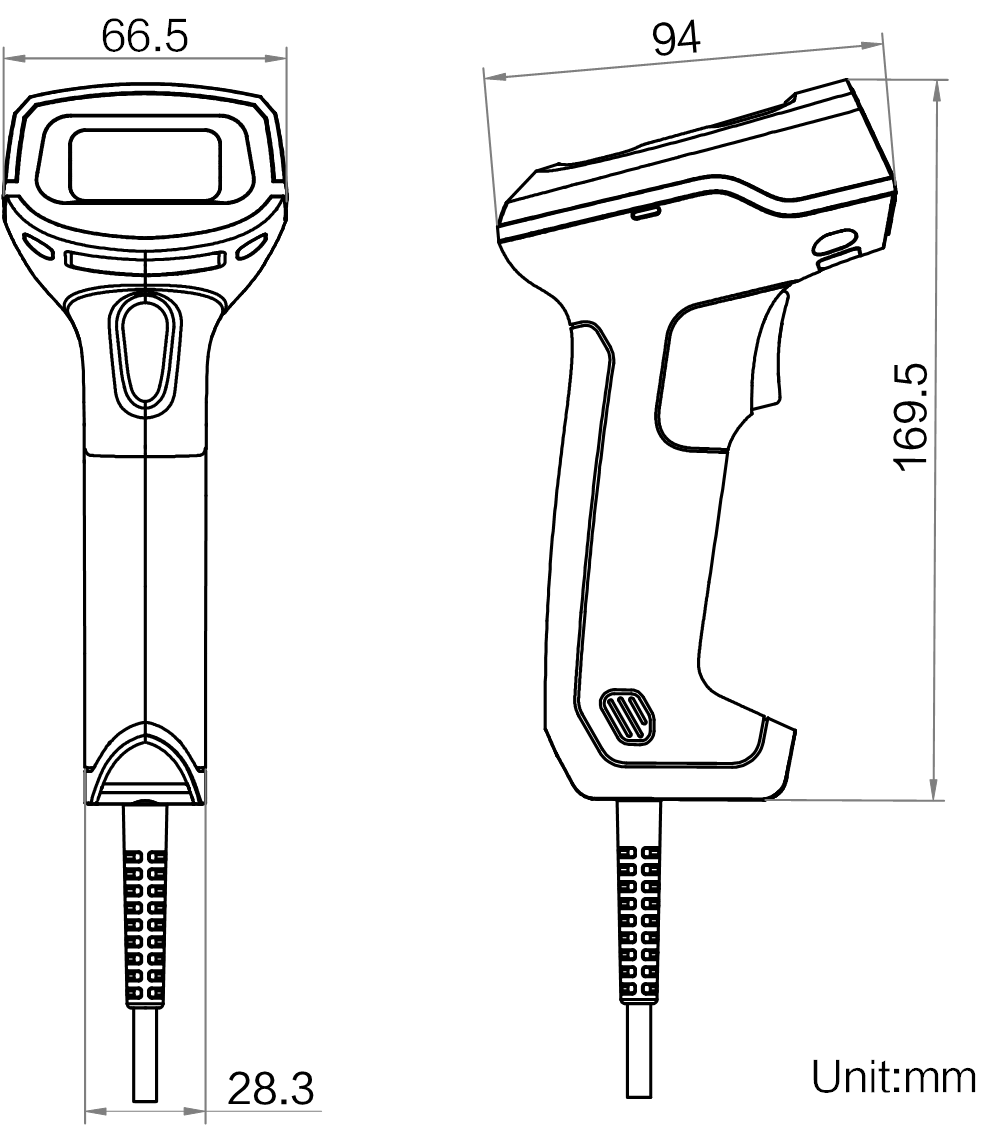

Dimensions

* Product data may cause Differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

MV-IDH2000/03SR/03WN/U

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-IDH2000/03SR/03WN/U

Model

Model	MV-IDH2000/03SR/03WN/U
Name	Enterprise USBHandheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,Coda Bar,EAN8,EAN13,ISBN,ISSN,ITF14,ITF25,UPCA,UPCE QR Code:QR Code,Data Matrix,MicroQR,Aztec Stacking code:PDF417
Min. Barcode Resolution	4 mil
Sensor Type	CMOS
Resolution	640 × 480
Depth of Field	EAN13(13 mil):30 ~ 240 mm Code 39(5 mil):50 ~ 100 mm Code 128(10 mil):30 ~ 240 mm Data Matrix(10 mil):40 ~ 130 mm QR Code(15 mil):15 ~ 205 mm
Field of View Angle	42° (H) × 32° (V)
Inspection Angle	Tilt angle ±65°, tilt angle ±65°, rotation angle 360°
Symbol Contrast	20 %
Communication Protocol	SmartSDK,USB(HID/CDC),Serial (RS-232)

Electrical

Interface	USB2.0,USB3.0,RS-232
Power Supply	5 VDC
Current Consumption	0.9 A(maximum current);0.5 A(typical current)

Mechanical

Focal Length	3.1 mm
Ambient Light	0 ~ 100000 lux
Light Source	White LED
Aimer	Orange LED
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	66.5 mm × 94 mm × 169.5 mm
Weight	Approximately 160 g
IP Rating	IP42
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity	5% ~ 95%RH No condensation
Drop Height	Drop:1.8 m Drop 50 times Roll:0.5 m roll 1000 times
