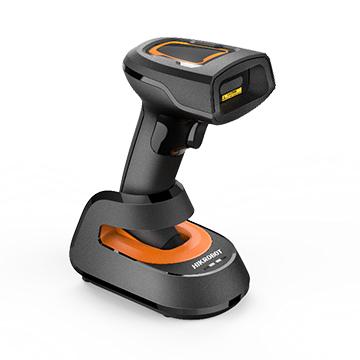

Name: HIKROBOT IDH2000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH2000/03SR/03WN/U
Availability: InStock

Product introduction

Functional characteristics

Using a self-developed high-performance barcode recognition algorithm, it can efficiently read inkjet difficult codes in light industry, enterprises, retail and other scenarios
The algorithm is highly robust and can effectively deal with barcode contamination, defects, film coating, lack of ink, low contrast and other situations
Supports continuous code reading and batch code reading modes, greatly improving the reading efficiency of multi-code scenarios
80-meter Bluetooth wireless transmission, getting rid of the shackles of Cables, and supports Bluetooth connection to mobile phones, tablets and other Mobile device, Easier and efficient operation
2700mAh battery enables long-term standby
Support IP42 protection level and 1.8m Drop Height

Ordering Model

MV-IDH2000B/03SR/03WN

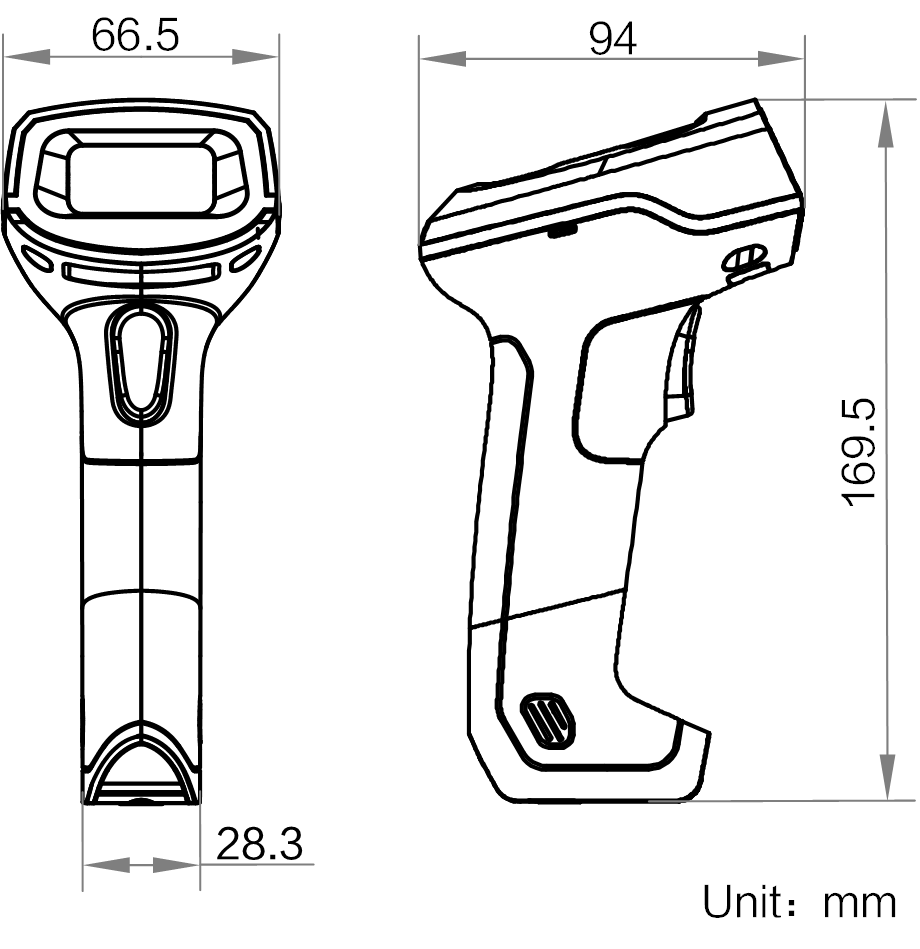

Dimensions

* Data involved in the product may cause Differences due to environmental factors. The company will not bear the consequences.

MV-IDH2000B/03SR/03WN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-IDH2000B/03SR/03WN

Model

Model	MV-IDH2000B/03SR/03WN
Name	Compact Wireless Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,Coda Bar,EAN8,EAN13,ISBN,ISSN, ITF14, ITF25,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin Stacked QR code:PDF417
Min. Barcode Resolution	4 mil
Sensor Type	CMOS
Resolution	640 × 480
Depth of Field	EAN13(13 mil):30 ~ 240 mm Code 39(5 mil):50 ~ 100 mm Code 128(10 mil):30 ~ 240 mm Data Matrix(10 mil):40 ~ 130 mm QR Code(15 mil):15 ~ 205 mm
Field of View Angle	42° (H) × 32° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Electrical

Interface	USB 2.0 (Type B)
Battery Capacity	2700mAh
Charging Time	6 h
Battery Life	12 h(interval scanning, every 2 seconds)
Power Supply	5 VDC
Current Consumption	1.5 A(maximum current);0.14 A(standby current)

Mechanical

Focal Length	3.1 mm
Ambient Light	0 ~ 100000 lux
Light Source	White LED
Aimer	Orange LED
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	66.5 mm × 94 mm × 169.5 mm
Weight	About 160 g
IP Rating	IP42
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C, Battery Charging Temperature0 ~ 40°C
Humidity	5% ~ 95%RH No condensation
Drop Height	1.8m

Laser Performance

General Specifications

Software	IDMVS
Certification	CE,KC

Mounting Base

Interface	USB 2.0 (Type B),USB 2.0 (Type A)
Power Supply	5 VDC
Current Consumption	1.5 A(maximum current); 0.01 A(standby current)
Dimensions	82.6 mm × 121.8 mm × 76.1 mm
Weight	approximately 120 g
IP Rating	IP40
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C
Humidity	5% ~ 95%RH No condensation
