Name: HIKROBOT IDH2000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH2000/03SR/03WN/U
Availability: InStock

Product introduction

Functional characteristics

Using a self-developed high-performance barcode recognition algorithm, it can efficiently read inkjet difficult codes in light industry, enterprises, retail and other scenarios
The algorithm is highly robust and can effectively deal with difficult code situations such as barcode dirt, defect, coating, lack of ink, and low contrast §
Supports continuous code reading and batch code reading modes, greatly improving reading efficiency in multi-code scenarios
2.4G wireless communication, stable and reliable
2700mAh battery, Achieve long-term standby
Support IP42 protection level and 1.8-meter Drop Height

Ordering Model

MV-IDH2000RF/13NR/05WN

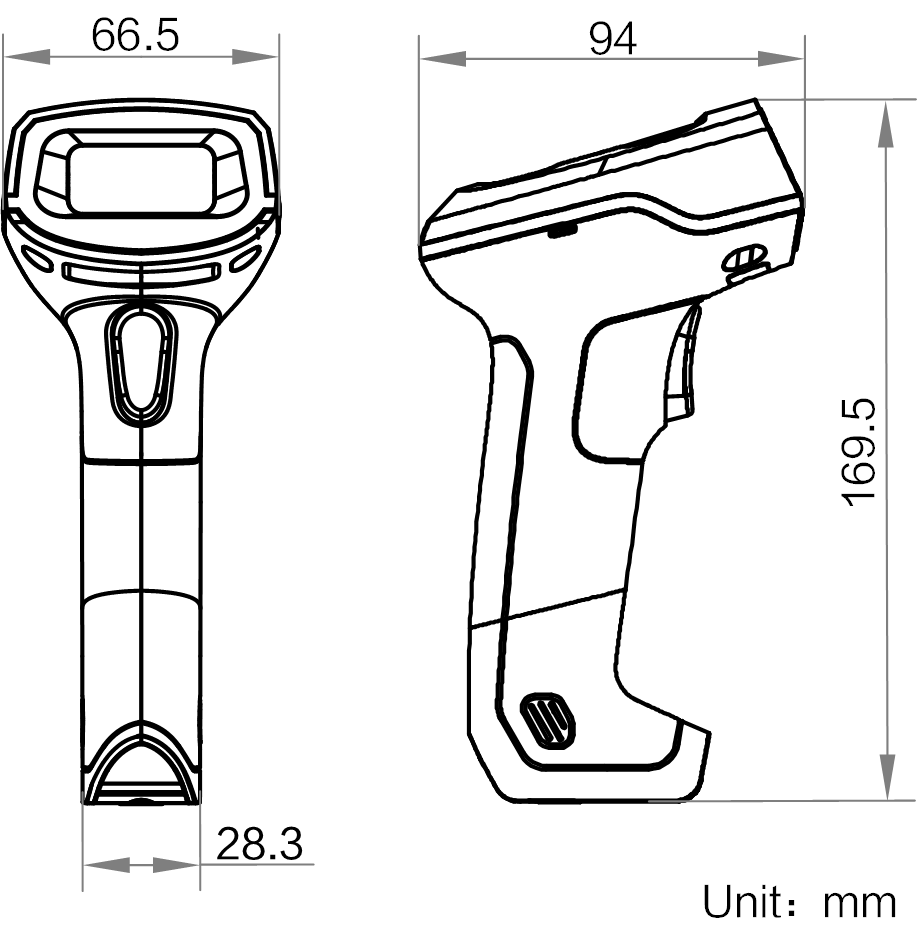

Dimensions

* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH2000RF/13NR/05WN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

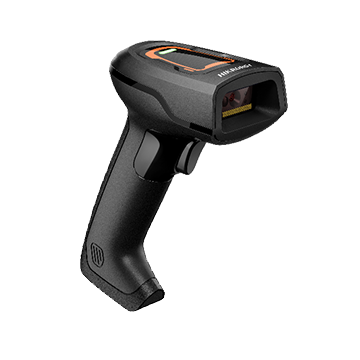

Ordering Model MV-IDH2000RF/13NR/05WN

Model

Model	MV-IDH2000RF/13NR/05WN
Name	Industrial-grade 2.4G Wireless Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,Coda Bar, EAN8, EAN13,ISBN,ISSN, ITF14, ITF25,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin,GS1-DM,GS1-QR Stacked QR Code:PDF417
Min. Barcode Resolution	One-dimensional Code:3 mil QR code:4 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth of Field	Code 128(3 mil):30 mm ~ 110 mm Code 128(10 mil):20 mm ~ 205 mm Data Matrix(5 mil):40 mm ~ 85 mm QR Code(10 mil):20 mm ~ 140 mm QR Code(20 mil):20 mm ~ 200 mm
Field of View Angle	39° (H) × 29° (V)
Inspection Angle	tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Communication Method	2.4G
Wireless Range	80 m(open range)
Communication Protocol	SmartSDK,USB,2.4G

Electrical

Interface	USB 2.0 (Type B)
Battery Capacity	2700mAh
Charging Time	6 h
Battery Life	12 h(interval scanning, every 2 seconds)
Power Supply	5 VDC
Current Consumption	1.5 A(maximum current);0.14 A(standby current)

Mechanical

Focal Length	4.9 mm
Ambient Light	0 ~ 100000 lux
Light Source	White LED
Aimer	Cross laser Aimer
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	66.5 mm × 94 mm × 169.5 mm
Weight	About 160 g
IP Rating	IP42
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity	5% ~ 95%RH No condensation
Drop Height	Drop:1.8 m drops 50 times Rolling: Rolling 1000 times in 0.5 m

Laser Performance

Laser Safety Class	Class 2 laser products
Wavelength	650 nm
Pulse Width	8 ms
Max. Power	1 mW

General Specifications

Software	IDMVS
Certification	CE,KC

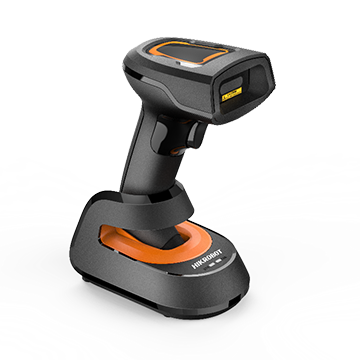

Mounting Base

Interface	USB 2.0 (Type B),USB 2.0 (Type A)
Power Supply	5 VDC
Current Consumption	1.5 A(maximum current); 0.14 A(standby current)

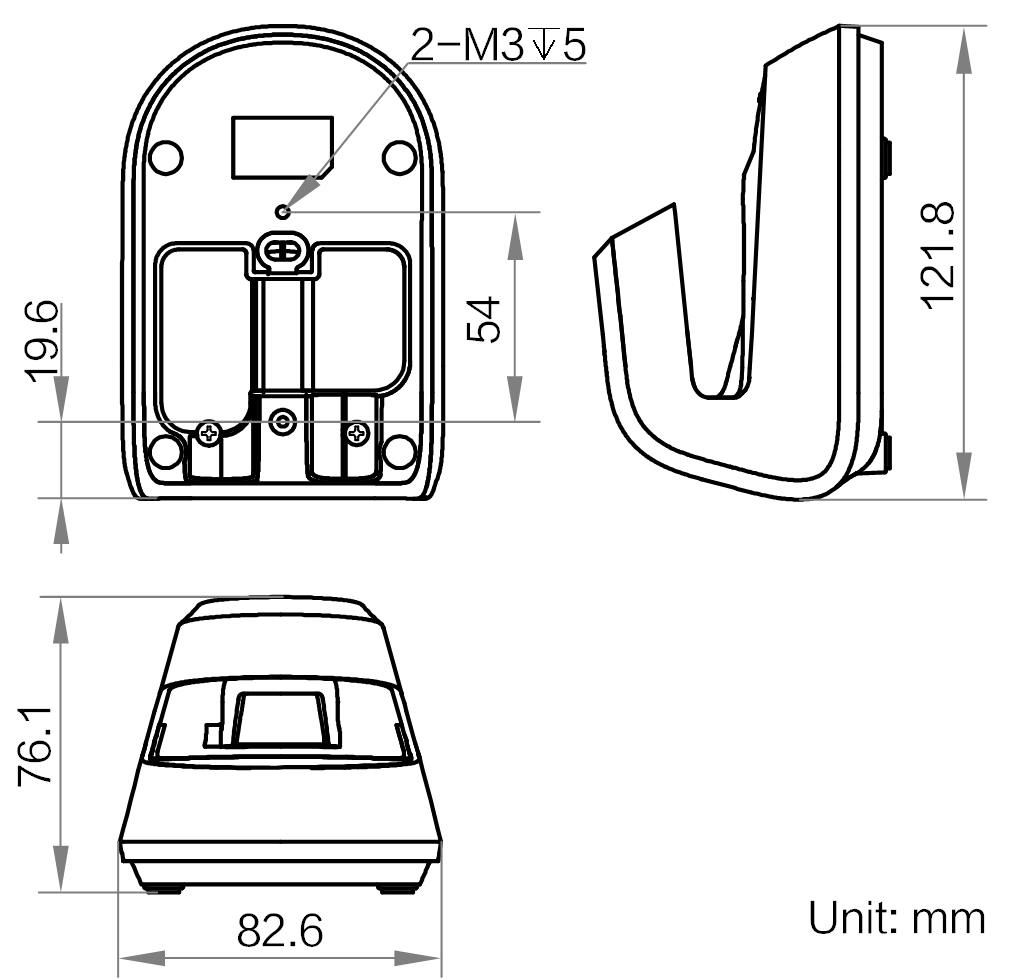

Dimensions	82.6 mm × 121.8 mm × 76.1 mm
Weight	approximately 120 g
IP Rating	IP40
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C
Humidity	5% ~ 95%RH No condensation
