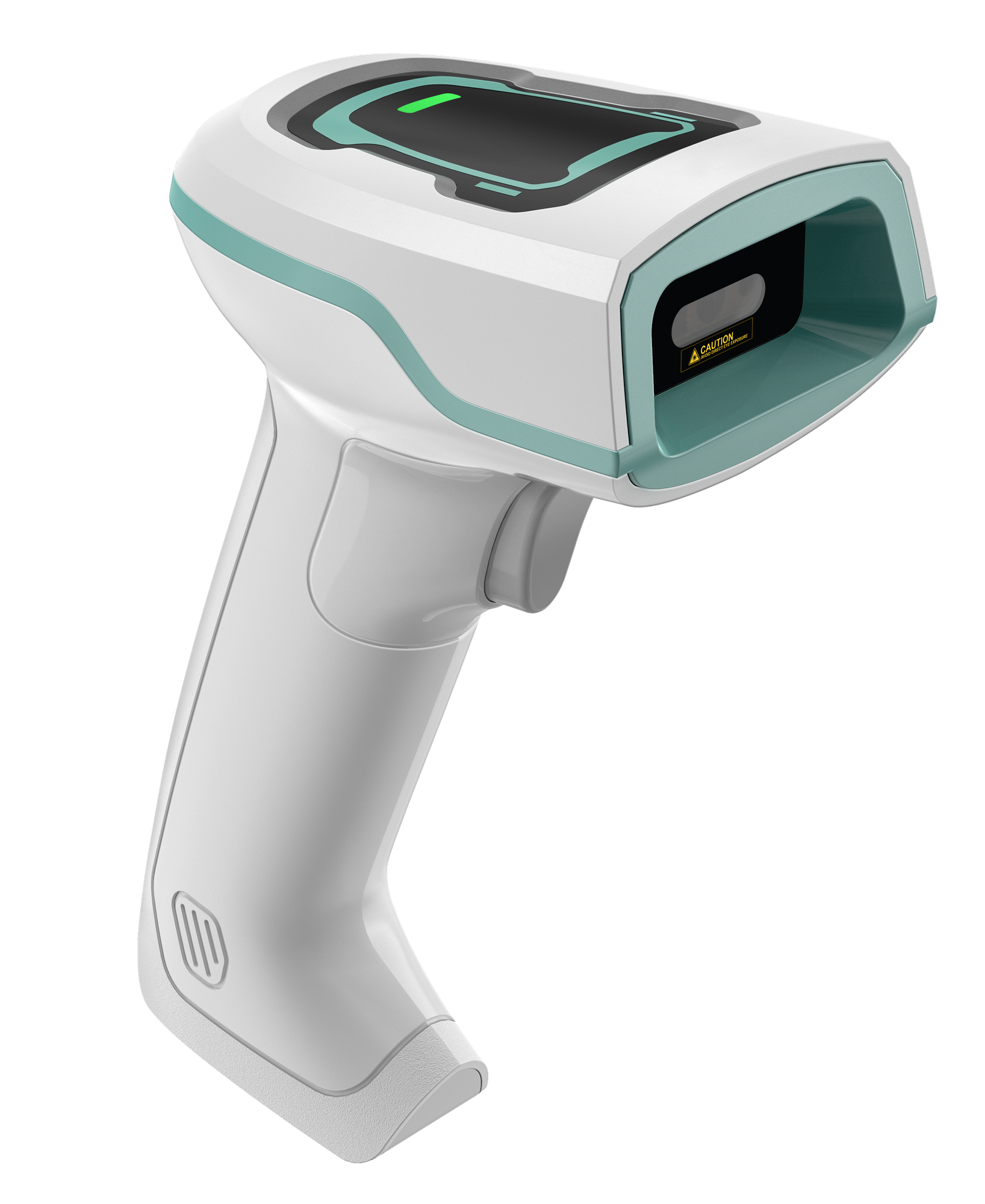

Name: HIKROBOT IDH2000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH2000/03SR/03WN/U
Availability: InStock

Product introduction

Functional characteristics

Medical special antibacterial and alcohol-resistant material
Using a self-developed high-performance barcode recognition algorithm, it can efficiently read inkjet difficult codes in light industry, enterprises, retail and other scenarios
Algorithm is strong. It can effectively cope with barcode dirty, defective, coated, under-ink, low contrast, etc.
Supports continuous code reading and batch code reading modes, greatly improving reading efficiency in multi-code scenarios
2.4G wireless communication, stable and reliable signal
2750mAh battery, Achieve long-term standby
Support IP42 protection level and 1.8-meter Drop Height

Ordering Model

MV-IDH2000RF/H/03SR/03WN

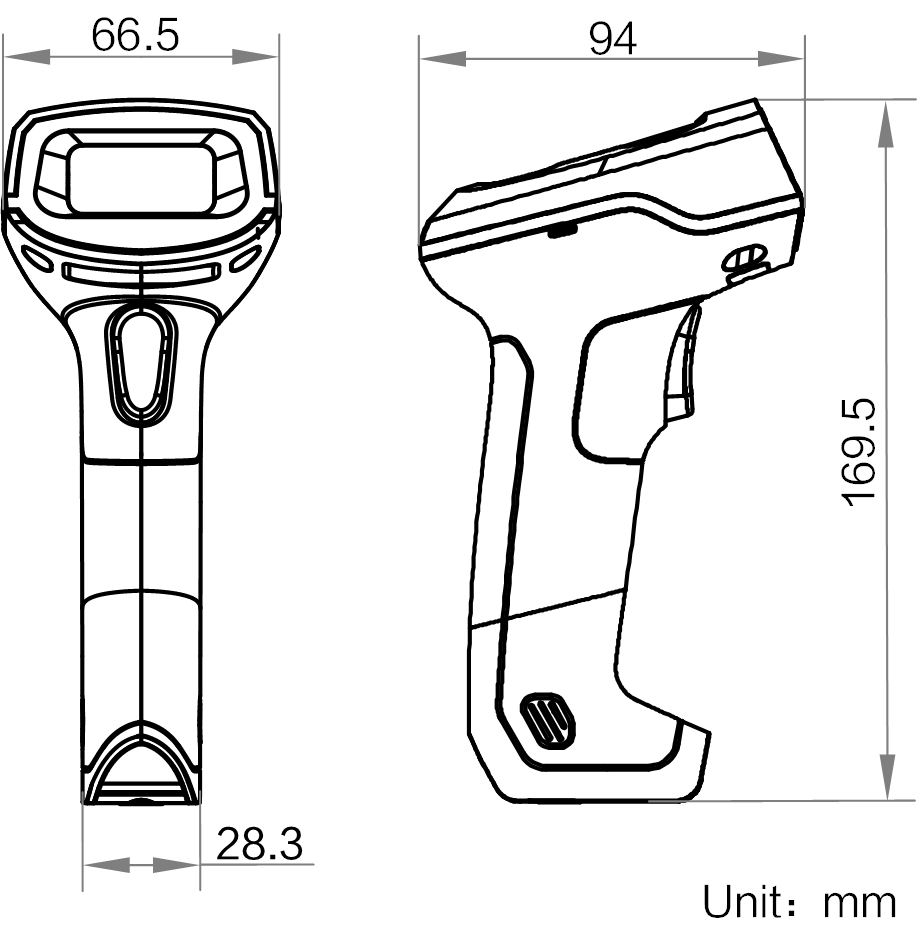

Dimensions

* Product data may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

MV-IDH2000RF/H/03SR/03WN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-IDH2000RF/H/03SR/03WN

Model

Model	MV-IDH2000RF/H/03SR/03WN
Name	Medical RF Wireless Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,Coda Bar, EAN8, EAN13,ISBN,ISSN, ITF14, ITF25,UPCA,UPCE QR Code:QR Code,Data Matrix,MicroQR,Aztec Stacking code:PDF417
Min. Barcode Resolution	4 mil
Sensor Type	CMOS
Resolution	640 × 480
Depth of Field	EAN13(13 mil):30 ~ 240 mm Code 39(5 mil):50 ~ 100 mm Code 128(10 mil):30 ~ 240 mm Data Matrix(10 mil):40 ~ 130 mm QR Code(15 mil):15 ~ 205 mm
Field of View Angle	42° (H) × 32° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Electrical

Interface	USB 2.0 (Type B)
Battery Capacity	2700mAh
Charging Time	6h
Battery Life	12 h(interval scanning, every 2s)
Power Supply	5 VDC
Current Consumption	1.5 A(maximum current);0.14 A(standby current)

Mechanical

Focal Length	3.1 mm
Ambient Light	0 ~ 100000 lux
Light Source	White LED
Aimer	Orange LED
Notification Method	LEDIndicator, buzzer, vibrator
IP Rating	IP42
Dimensions	66.5 mm × 94 mm × 169.5 mm
Weight	About 160 g
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C, Battery Charging Temperature0 ~ 40°C
Humidity	5% ~ 95%RH Non-condensing
Drop Height	1.8 m

Laser Performance

General Specifications

Software	IDMVS
Certification	CE,KC

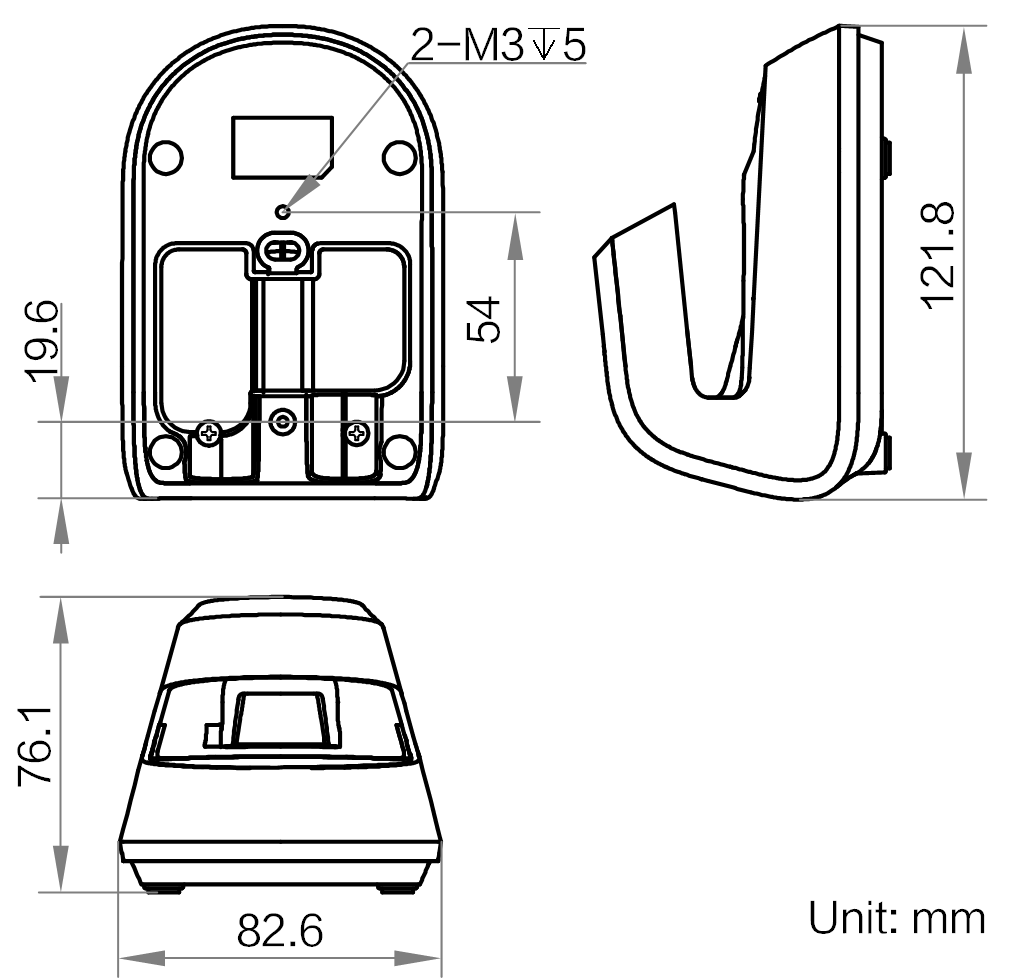

Mounting Base

Interface	USB 2.0 (Type B),USB 2.0 (Type A)
Power Supply	5 VDC
Current Consumption	1.5 A(maximum current); 0.01 A(standby current)
Dimensions	82.6 mm × 121.8 mm × 76.1 mm
Weight	approximately 120 g
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C
Humidity	5% ~ 95%RH No condensation
