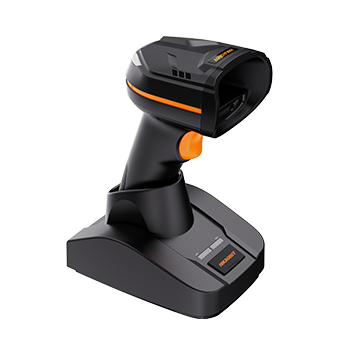

HIKROBOT IDH3000 Series Handheld Code Readers

FX-S6001WH-HD-U

1280 × 1024

Consulting quotation
FX-S6001WH-HD-U

Product introduction

Functional characteristics

  • Using a independently developed high Performance barcode recognition algorithm, it can efficiently read one-dimensional and two-dimensional codes in industrial scenes

  • The algorithm is highly robust and can effectively deal with dirty, defective, low contrast and other situations

  • Supports continuous code reading and batch code reading modes, which greatly improves the reading efficiency of multi-code scenes

  • Using Bluetooth 5.0 wireless technology to get rid of the shackles of Cables, making the operation more efficient and lighter.

  • By using smart Mounting Base, Can be connected to IDMVS for parameter configuration and equipment management



Ordering Model

Close range, U-port Handheld Code Readers pack: FX-S6001WH-HD-U


Dimensions


* The data involved in the product may cause Differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

FX-S6001WH-HD-U

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

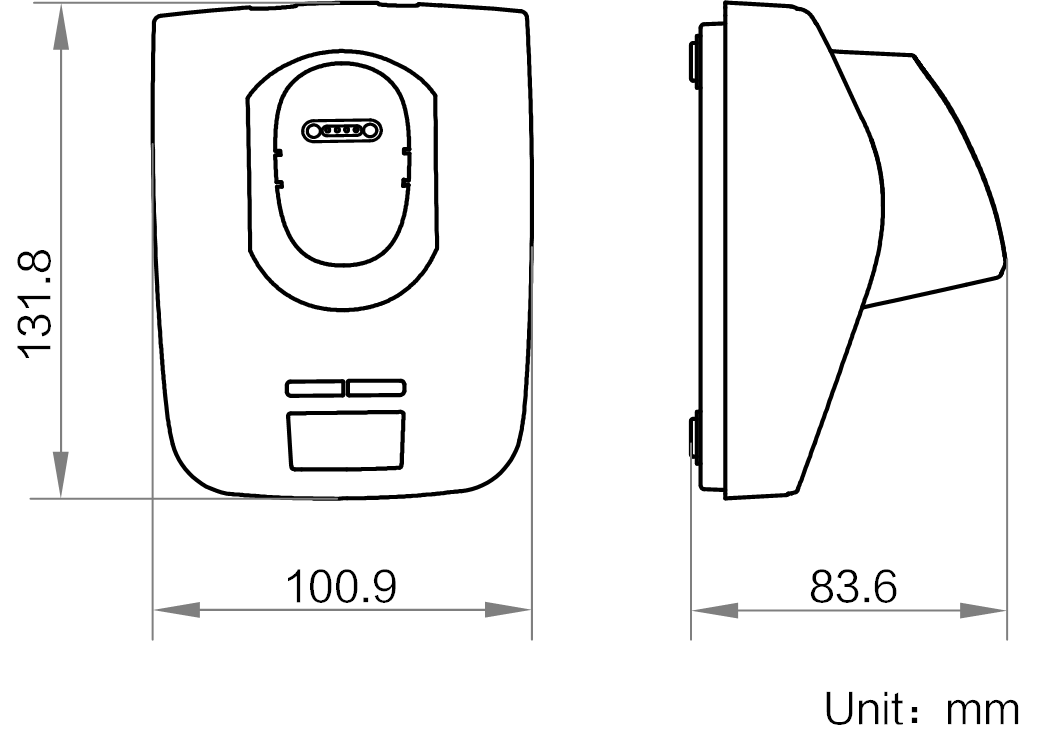

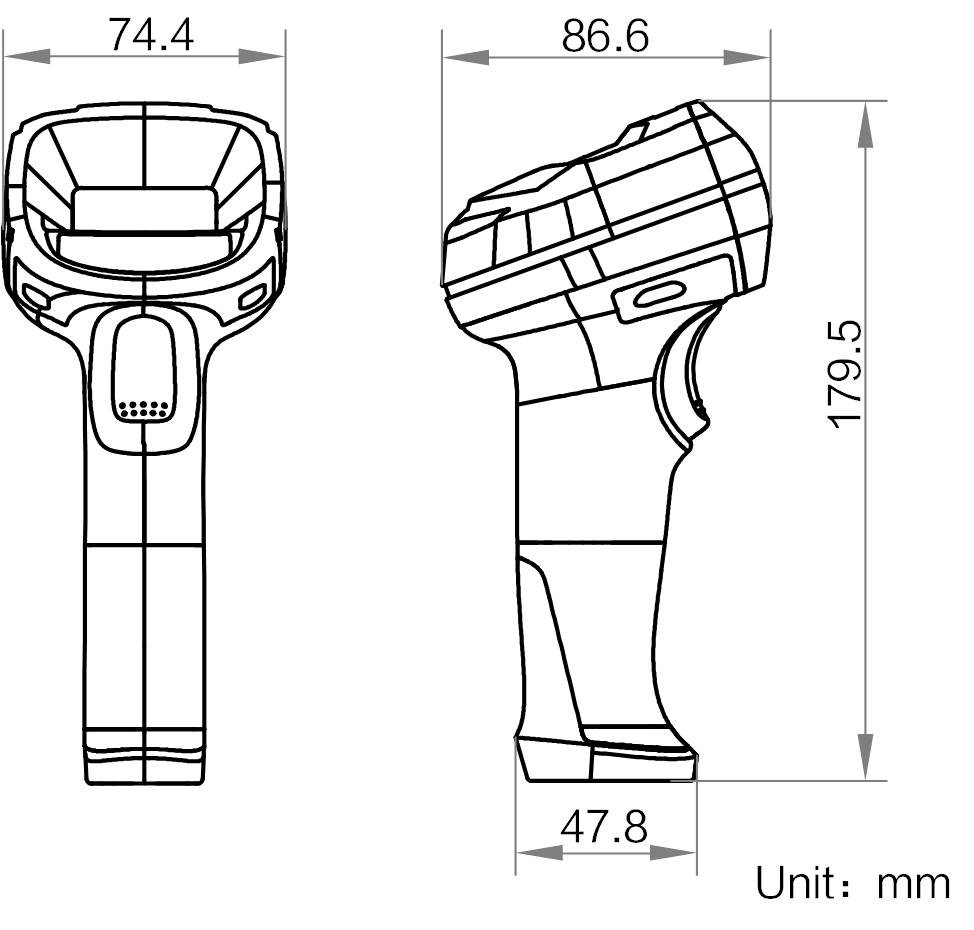

Dimensions

Overall size

Detailed parameters

Ordering Model FX-S6001WH-HD-U
Product Model FX-S6001WH-HD-U
Resolution 1280 × 1024
Min. Barcode Resolution 3 mil
Interface USB 2.0, DC terminal
IP Rating IP42

Data download

Product manual· SDK ·Development documentation
