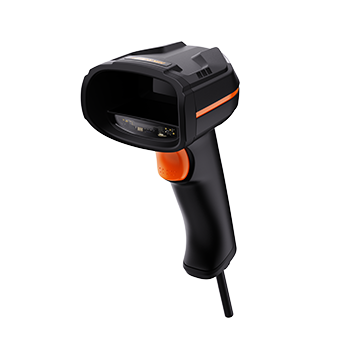

Name: HIKROBOT IDH3000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH3000/13NR/04RN/U
Availability: InStock

Product introduction

Functional characteristics

Using a self-developed high-performance barcode recognition algorithm, it can efficiently read one-dimensional and two-dimensional codes in industrial scenarios
The algorithm is highly robust and can effectively deal with difficult code situations such as dirty, defective, and low contrast.
Supports continuous code reading and batch code reading modes, greatly improving reading efficiency in multi-code scenarios
Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK, MC/SLMP, FINS and other transmission protocols
The appearance adopts a wire-separated design. Easy to replace and use

Ordering Model

MV-IDH3000/13NR/05RN/L

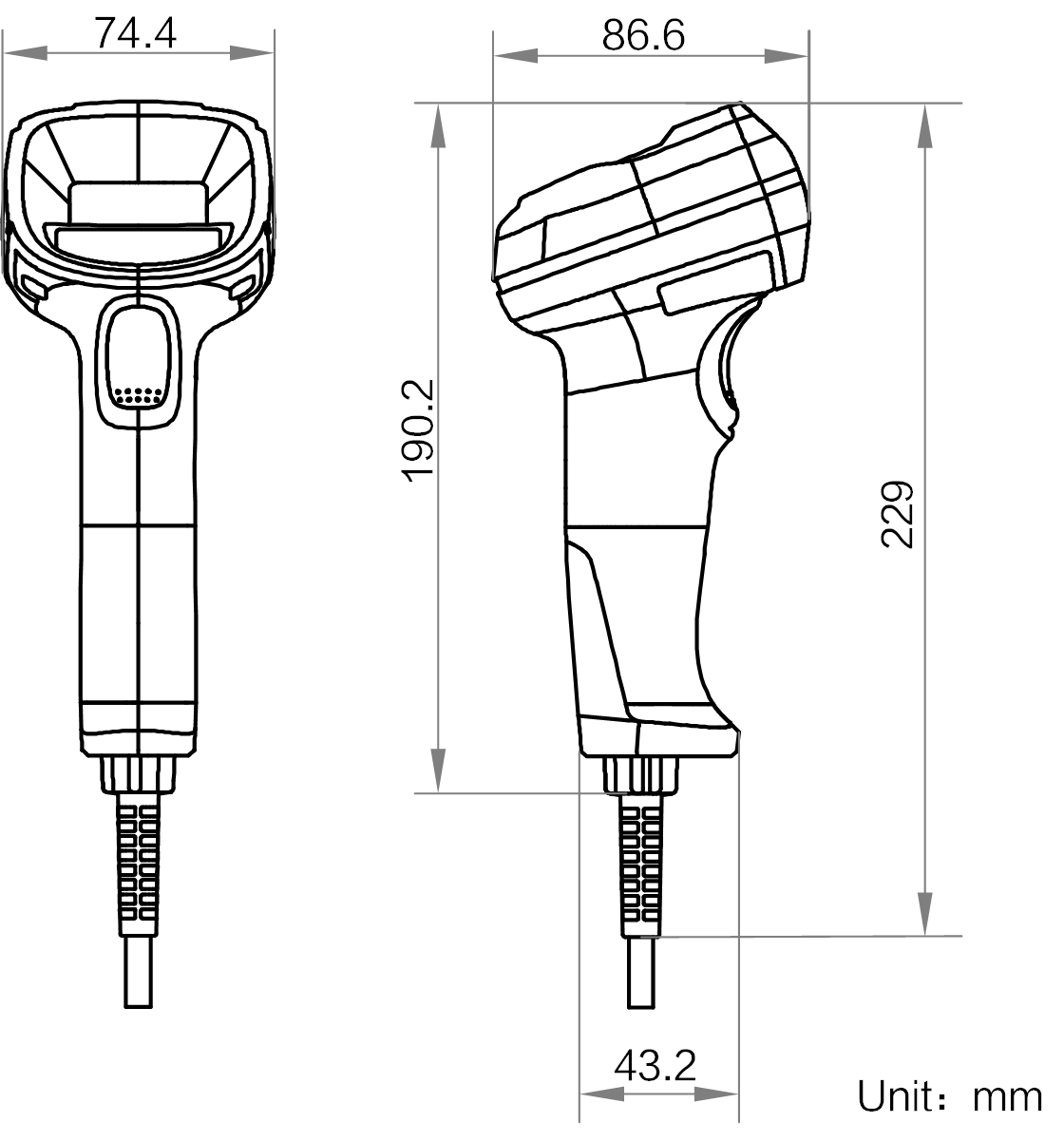

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH3000/13NR/05RN/L

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDH3000/13NR/05RN/L

Model

Model	MV-IDH3000/13NR/05RN/L
Name	Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,CodaBar, EAN8, EAN13,ISBN,ISSN, ITF25, ITF14,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin,GS1-DM,GS1-QR Stacked QR code:PDF417
Min. Barcode Resolution	3 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth of Field	Code 128(3 mil):25 mm~ 70 mm Code 128(10 mil):10 mm~ 170 mm Code 39(5 mil):15 mm~ 100 mm Data Matrix(5 mil):30 mm ~ 60 mm Data Matrix(10 mil):5 mm ~ 115 mm
Field of View Angle	40° (H) × 34° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %
Communication Protocol	SmartSDK,TCP Client,TCP Server,FTP,UDP,Serial (RS-232)

Electrical

Interface	Fast Ethernet(100 Mbit/s), RS-232,DC terminal
Power Supply	12 VDC ~ 24 VDC
Current Consumption	0.5 A(maximum current);0.28 A(typical current)

Mechanical

Focal Length	4.7 mm
Ambient Light	0 ~ 100000 lux
Light Source	Red LED
Aimer	Cross laser aiming
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	74.4 mm × 86.6 mm × 190.2 mm
Weight	Approximately 160 g
IP Rating	IP52
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 80%RH No condensation
Drop Height	Drop:1.8 m drops 50 times Rolling:0.5 m rolling 1200 times
Air Discharge Immunity	±16 kV(air discharge),±8kV(contact discharge)
