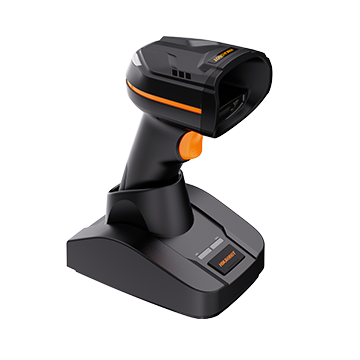

Name: HIKROBOT IDH3000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH3000/13NR/04RN/U
Availability: InStock

Product introduction

Functional characteristics

Using a independently developed high Performance barcode recognition algorithm, it can efficiently read one-dimensional and two-dimensional codes in industrial scenes
The algorithm is highly robust and can effectively deal with dirty, defective, low contrast and other situations
Supports continuous code reading and batch code reading modes, which greatly improves the reading efficiency of multi-code scenes
Using Bluetooth 5.0 wireless technology to get rid of the shackles of Cables, making the operation more efficient and lighter.
By using smart Mounting Base, You can access IDMVS for parameter configuration and equipment management

Ordering Model

MV-IDH3000B/13SR/05RN/US

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-IDH3000B/13SR/05RN/US

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDH3000B/13SR/05RN/US

Model

Model	MV-IDH3000B/13SR/05RN/US
Name	Handheld Code Readers Pack for Wireless USB Port

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,CodaBar, EAN8, EAN13,ISBN,ISSN, ITF25, ITF14,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin,GS1-DM,GS1-QR Stacked QR code:PDF417
Min. Barcode Resolution	4 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth of Field	Code 39(5 mil):40 mm ~ 160 mm Code 128(10 mil):10 mm ~ 400 mm Data Matrix(10 mil):30 mm ~ 200 mm QR Code(15 mil):15 mm ~ 280 mm QR Code(20 mil):20 mm ~ 370 mm 1
Field of View Angle	40° (H) × 34° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60 °, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Communication Method	Bluetooth BT 5.0, BLE
Wireless Range	100 m(open range)

Electrical

Battery Capacity	3150mAh
Charging Time	In shutdown mode: USB2.0(5V,500mA):8.5 h;USB3.0(5V,1A):8.5 h; DC12 V(12V,2A):3.5 h
Battery Life	13 h(scanning at intervals, once for 2s)

Mechanical

Focal Length	4.7 mm
Ambient Light	0 ~ 100000 lux
Light Source	Red LED
Aimer	Cross laser aiming
Notification Method	LEDIndicator, buzzer, vibrator

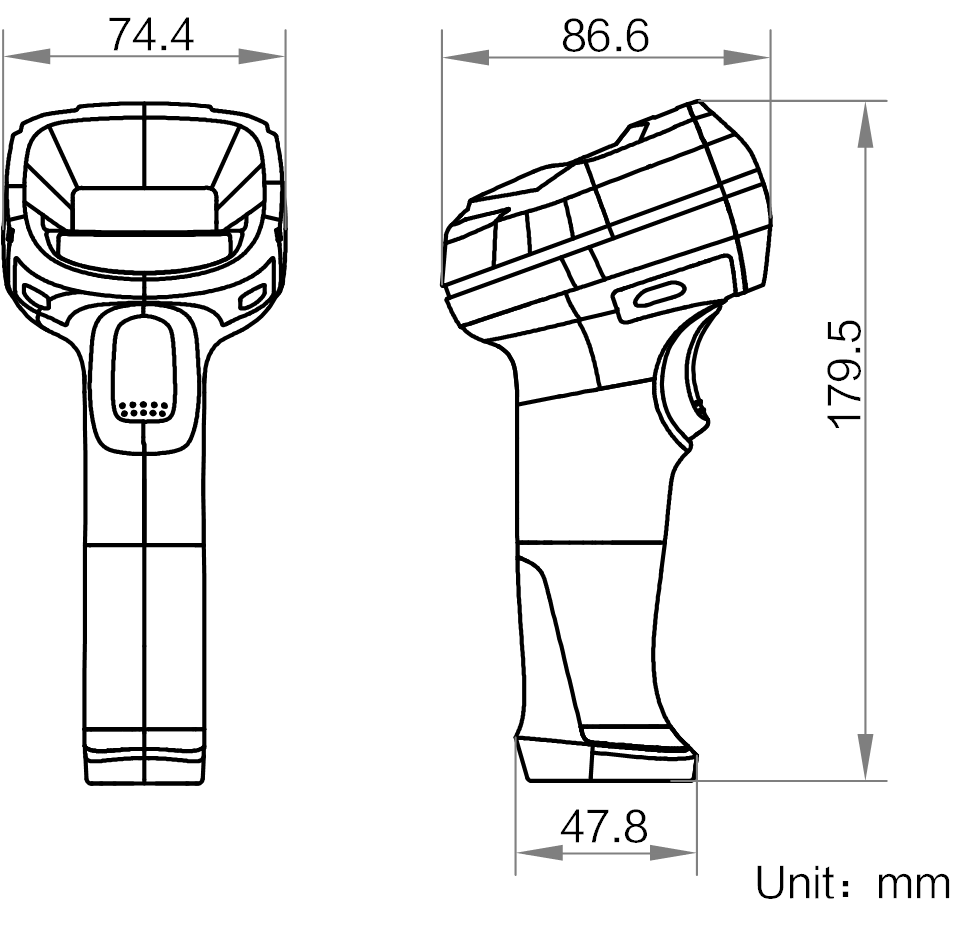

Dimensions	74.4 mm × 86.6 mm × 179.5 mm
Weight	About 230 g
IP Rating	IP52
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C, Battery charging Temperature0 ~ 40°C
Humidity	20% ~ 80%RH No condensation
Drop Height	Drop:1.8 m Drop 50 times Rolling:0.5 m rolling 1200 times
Air Discharge Immunity	±16 kV(air discharge),±8kV(contact discharge)

Laser Performance

Laser Safety Class	Category 2 laser products
Wavelength	650 nm
Pulse Width	8 ms
Max. Power	1 mW

General Specifications

Software	IDMVS
Certification	CE,KC

Mounting Base

Communication Protocol	SmartSDK,USB(HID/CDC),Bluetooth,Serial (RS-232)
Interface	USB2.0, USB3.0, DC terminal 3, RS-232
Power Supply	5 VDC(USB);12 VDC ~ 24 VDC(DC terminal)
Charging Time	8.5 h(USB)
Current Consumption	USB 2.0:1.5 A(maximum current);0.14 A(standby current) DC terminal:0.7 A(maximum current); 0.06 A(standby current)

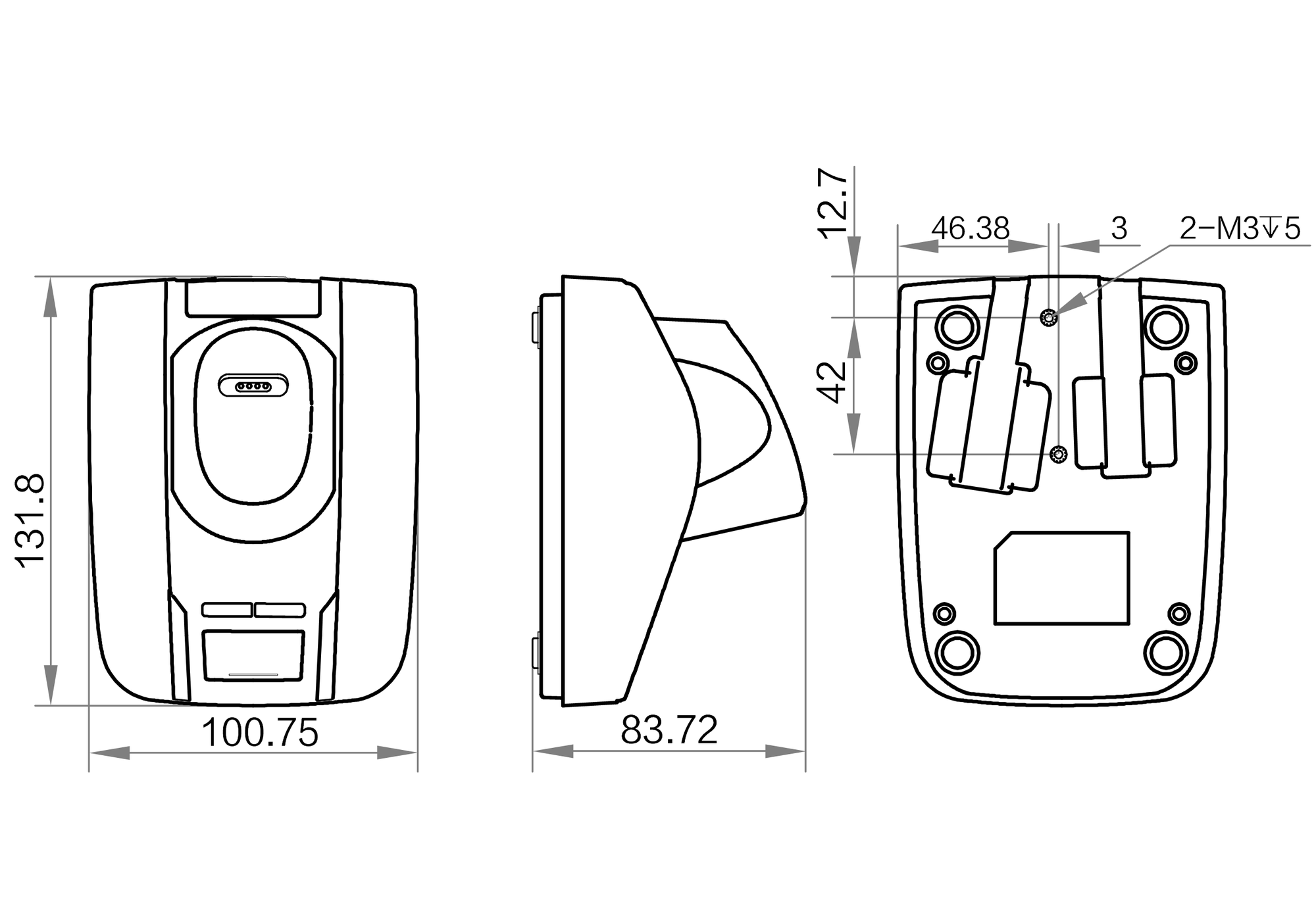

Dimensions	100.9 mm × 131.8 mm × 83.6 mm
Weight	Approximately 180 g
IP Rating	IP40
Humidity	20% ~80%RH No condensation
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C, Battery charging Temperature0 ~ 40°C
