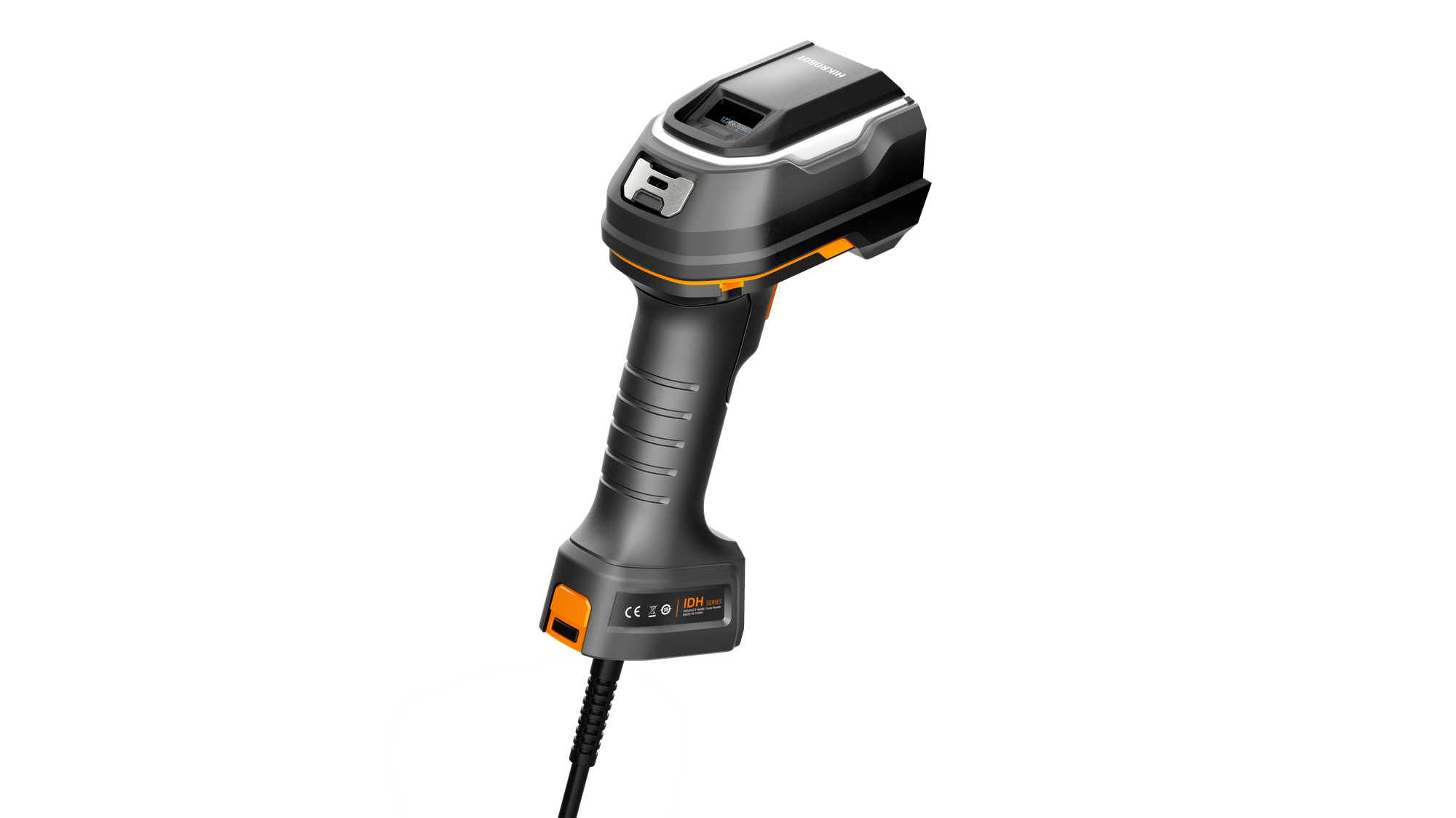

Name: HIKROBOT IDH9000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH9000/13HHD/16RP/U
Availability: InStock

Product introduction

Functional characteristics

The algorithm is highly robust and can effectively deal with difficult code readings such as dirt, deflection, low contrast, and metal radium engraving
Very small code Lenses realize barcode reading with a minimum module bit of 0.04 mm, zoom Lenses realize large Depth of Field high-speed reading
Integrate four lighting methods: direct, polarized, diffuse, and double-sided diffuse, and adapt to typical scenes such as resin, reflection, casting surfaces, and columns
Strong and durable, effective drop resistance (2.5 m 50 times), rolling (0.5 m20000 times), resistant to chemical corrosion such as gasoline and diesel and strong electrostatic interference, etc.
Equipped with OLEDDisplay, you can view device and barcode information and realize parameter configuration without connecting to a PC
Support one-click parameter adjustment, quick configuration of code reading parameters and code reading modes
Support TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, Communication protocols such as SmartSDK

Ordering Model

MV-IDH9000/13DP/04RP/L

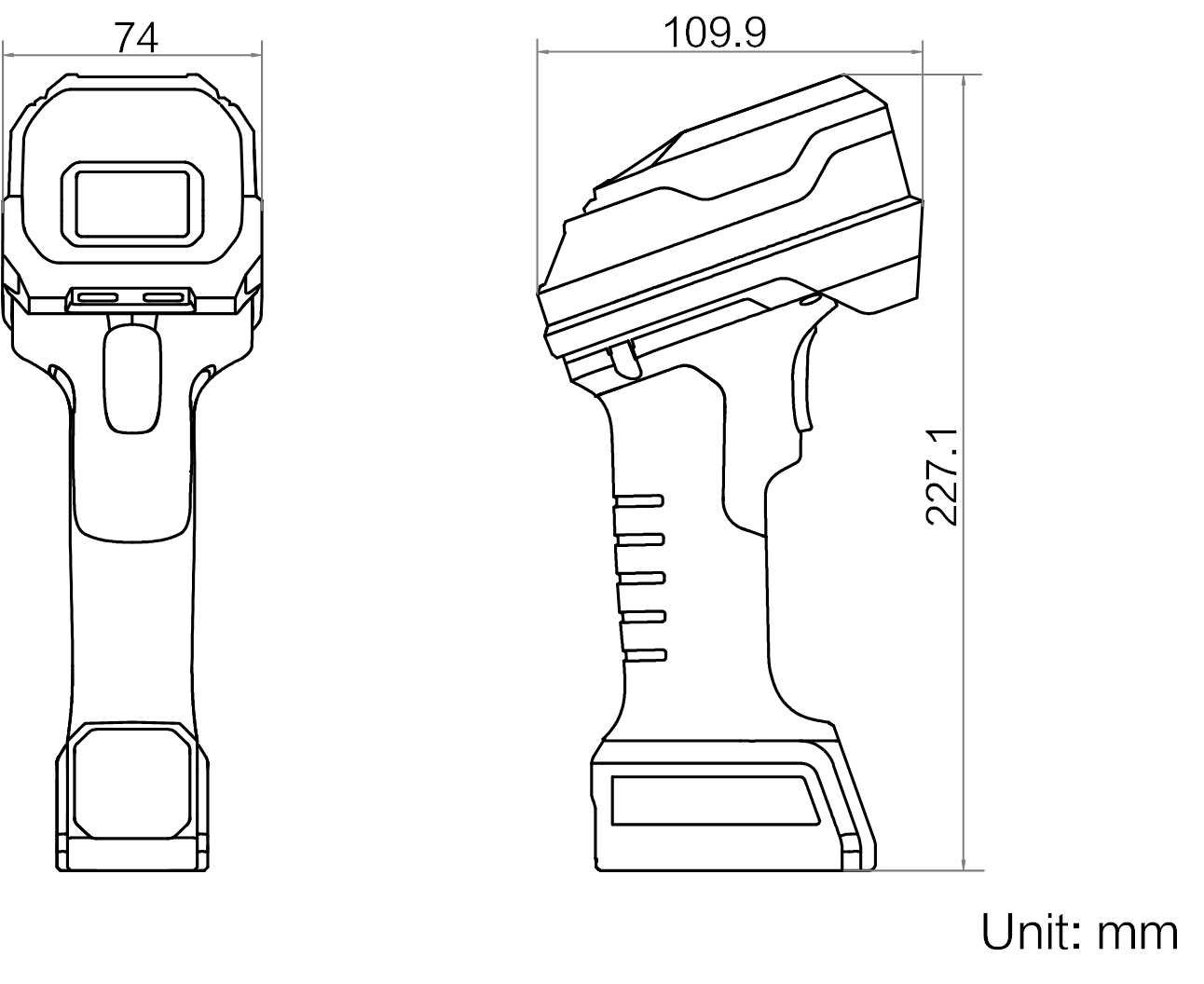

Dimensions

* Data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH9000/13DP/04RP/L

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDH9000/13DP/04RP/L

Model

Model	MV-IDH9000/13DP/04RP/L
Name	Ultra-durable cable Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,CodaBar,EAN8,EAN13,ISBN,ISSN, ITF25, ITF14,UPCA,UPCE QR Code:QR Code,Data Matrix,MicroQR,Aztec Stacking code:PDF417
Min. Barcode Resolution	3 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth of Field	Code128(3 mil):0 mm ~ 100 mm1 Code 128(10 mil):0 mm ~ 250 mm1 Code 128(20 mil):0 mm ~ 350 mm1 Code 39(5 mil):0 mm ~ 150 mm1 Data Matrix(5 mil):5 mm ~ 75 mm QR Code(20 mil):0 mm ~ 250 mm1
Field of View Angle	43.6° (H) × 35.5° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %
Communication Protocol	SmartSDK,UDP,TCP Client,Serial,FTP,TCP Server,Profinet,EthernetIP,Modbus

Electrical

Interface	Fast Ethernet(100 Mbit/s), RS-232,DC terminals
Power Supply	DC terminals:12 VDC;PoE3:48 V
Current Consumption	DC terminals:0.7 A(maximum current);0.47 A(typical current) PoE3:0.2 A(maximum current);0.14 A(typical current)

Mechanical

Focal Length	4.3 mm
Ambient Light	0 ~ 100000 lux
Light Source	Supports 4 Light Sources: Diffuse Light Source(red light), Double-sided Light Source(red light), Direct Light Source(white light), Polarized Light Source(white light) The device defaults to Smart code reading mode, which can automatically poll according to the code reading scene with full Light Source
Aimer	650 nm laser (red light)
Notification Method	LEDIndicator, buzzer, vibrator
Display	0.96-inch OLED screen
Dimensions	74 mm × 109.9 mm × 227.1 mm
Weight	About 488 g(excluding Cables)
IP Rating	IP67
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity	5% ~ 95%RH No condensation
Drop Height	Drop:2.5 m drop 50 times Rolling:0.5 m rolling 20000 times
Chemical corrosion resistance	ISO 16750
Air Discharge Immunity	±25 kV(air discharge),±10 kV(contact or indirect discharge)
