HIKROBOT HDMI Microscope Cameras

MV-CM3040C-1H

2560 × 1440, Color

Consulting quotation
MV-CM3040C-1H

Product introduction

Functional characteristics

  • 4MP high-definition image quality, 30 fps high frame rate output

  • HDMI data output Interface, which can be directly connected to the display

  • USB Interface supports mouse and USB flash drive peripherals, and the operation is simple and convenient

  • USB3.0 Interface can be connected to a computer, and can be used with client Software

  • supports the photo Storage function, can adjust multiple image parameters

  • supports multiple manual and automatic measurement functions. Measurement reports are generated with one click



Ordering Model

MV-CM3040C-1H


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CM3040C-1H

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

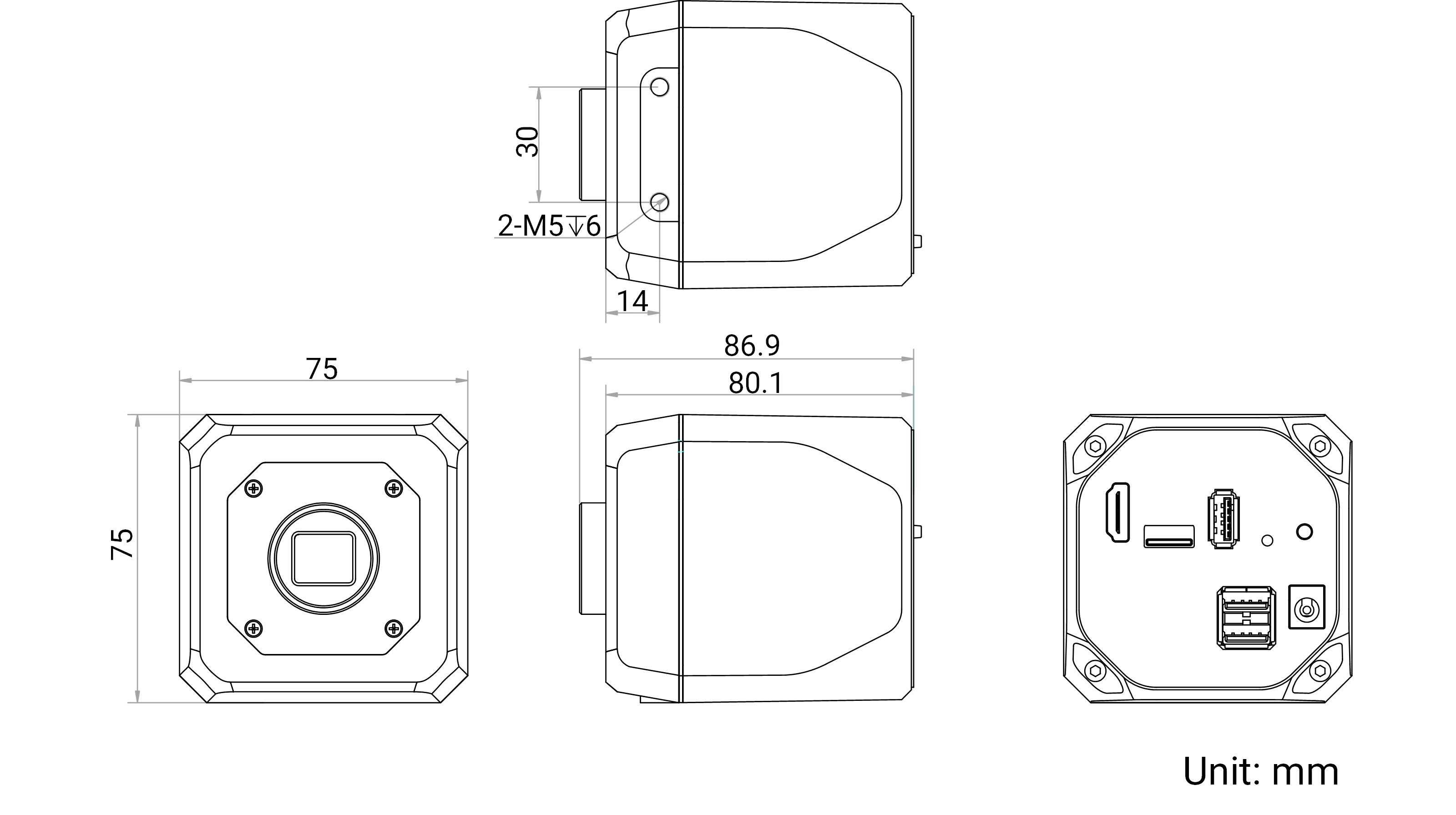

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CM3040C-1H
Product Model MV-CM3040C-1H
Resolution 2560 × 1440
Max. Frame Rate 30.0 fps
Control Interface 2§2 USB2.0 Interface, 1 USB3.0 Interface, 1 micro SDInterface
Mono/Color Color

Data download

Product manual· SDK ·Development documentation
