HIKROBOT VC2000 Series

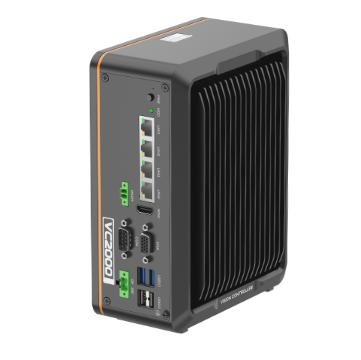

MV-VC2101-128G40-NN

The VC2000 Series Vision Controllers are equipped with Intel high-performance processing chips and equipped with rich data acquisition and Control interfaces, including Gigabit Ethernet ports, IO, Light Source, Serial Port, etc. The machine is mechanically compact and has excellent Performance, providing an excellent hardware Platform for multi-Camera simple vision applications.

Consulting quotation
MV-VC2101-128G40-NN

Product introduction

Functional characteristics

  • Equipped with the new Intel Alder Lake-N PlatformProcessor, providing powerful computing Performance

  • Supports 4 Gigabit network ports and supports high-speed and stable image transmission

  • Optional built-in USB Interface or built-in Encryption dongle device, easy for on-site deployment and maintenance



Ordering Model

MV-VC2101-128G40-NN


Dimensions


* The data involved in the product may cause Differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-VC2101-128G40-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

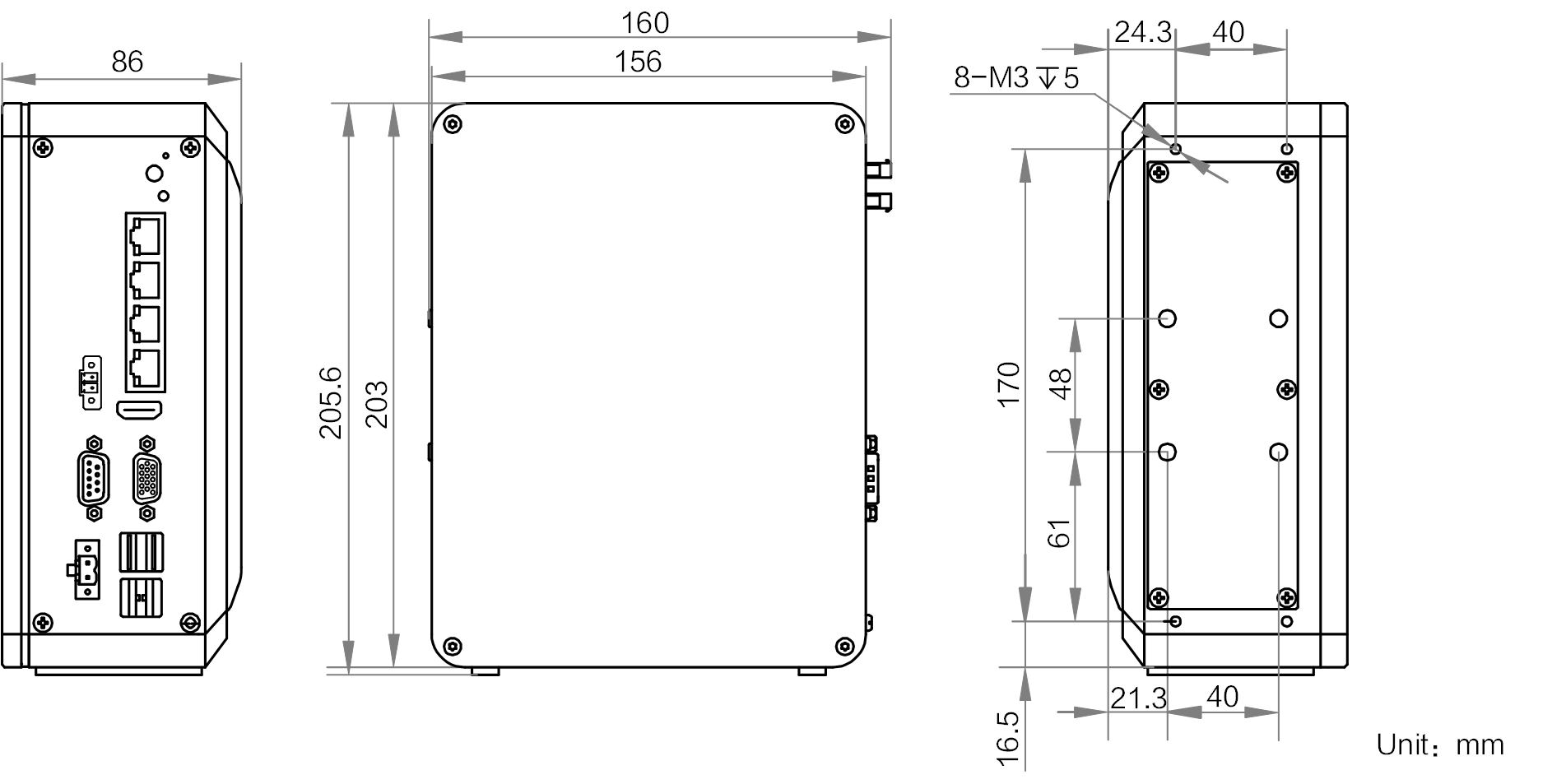

Dimensions

Overall size

Detailed parameters

Ordering Model MV-VC2101-128G40-NN
Model
Model MV-VC2101-128G40-NN
Name VC2100 vision controller, N97, 16GB +128G SSD, basic style, does not include IO, Light Source and other functions;
Performance
Processor Intel® Processor N97
Memory 16GB
Storage 128G SSD
GPU Intel® UHD Graphics
Operating System Windows 10 LTSC 21H2 64 bit, inactivated
External Interfaces
Video Output 1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support is 1920 × 1080@60Hz
Digital I/O Not supported
Network Interface 4 Gigabit Internet ports
USB Interface 2 USB 2.0 Interfaces 2 USB 3.0 Interfaces
Serial Port 1 configurable RS-232 (Can be configured as RS-485/RS-422)
Electrical
Power Supply 24 VDC
Typical Power Consumption 51 W
Mechanical
Dimensions 160.59 mm × 205.6 mm × 86 mm
Weight Approximately 2 kg
Temperature Operating Temperature 0 °C~50 °C, Storage Temperature-30°C ~ 70°C
Humidity 20%~80% RH No condensation
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
