HIKROBOT VC2000 Series

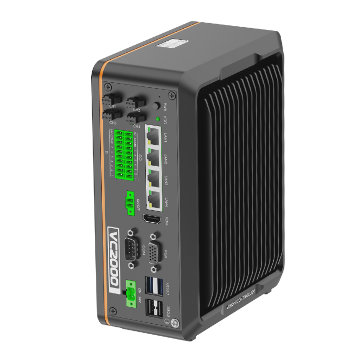

MV-VC2143-128G40-1T

The VC2000 Series Vision Controllers are equipped with Intel high-performance processing chips and equipped with rich data acquisition and Control interfaces, including Gigabit Ethernet ports, IO, Light Source, Serial Port, etc. The machine is mechanically compact and has excellent Performance, providing an excellent hardware Platform for multi-Camera simple vision applications.

Consulting quotation
MV-VC2143-128G40-1T

Product introduction

Functional characteristics

  • Equipped with the new Intel Alder Lake-N PlatformProcessor, providing powerful computing Performance

  • Supports GPIO functions

  • Supports 4-channel Light Source control, higher definition imaging

  • Supports 4-channel Gigabit network ports, supports high-speed and stable image transmission

  • Optional built-in USB Interface or built-in Encryption dongle device for easy on-site deployment and maintenance



Ordering § Model 10§* Data involved in the product may cause

MV-VC2143-128G40-1T


Dimensions


* Data related to the product may be generated due to environmental factors and other factors Differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-VC2143-128G40-1T

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

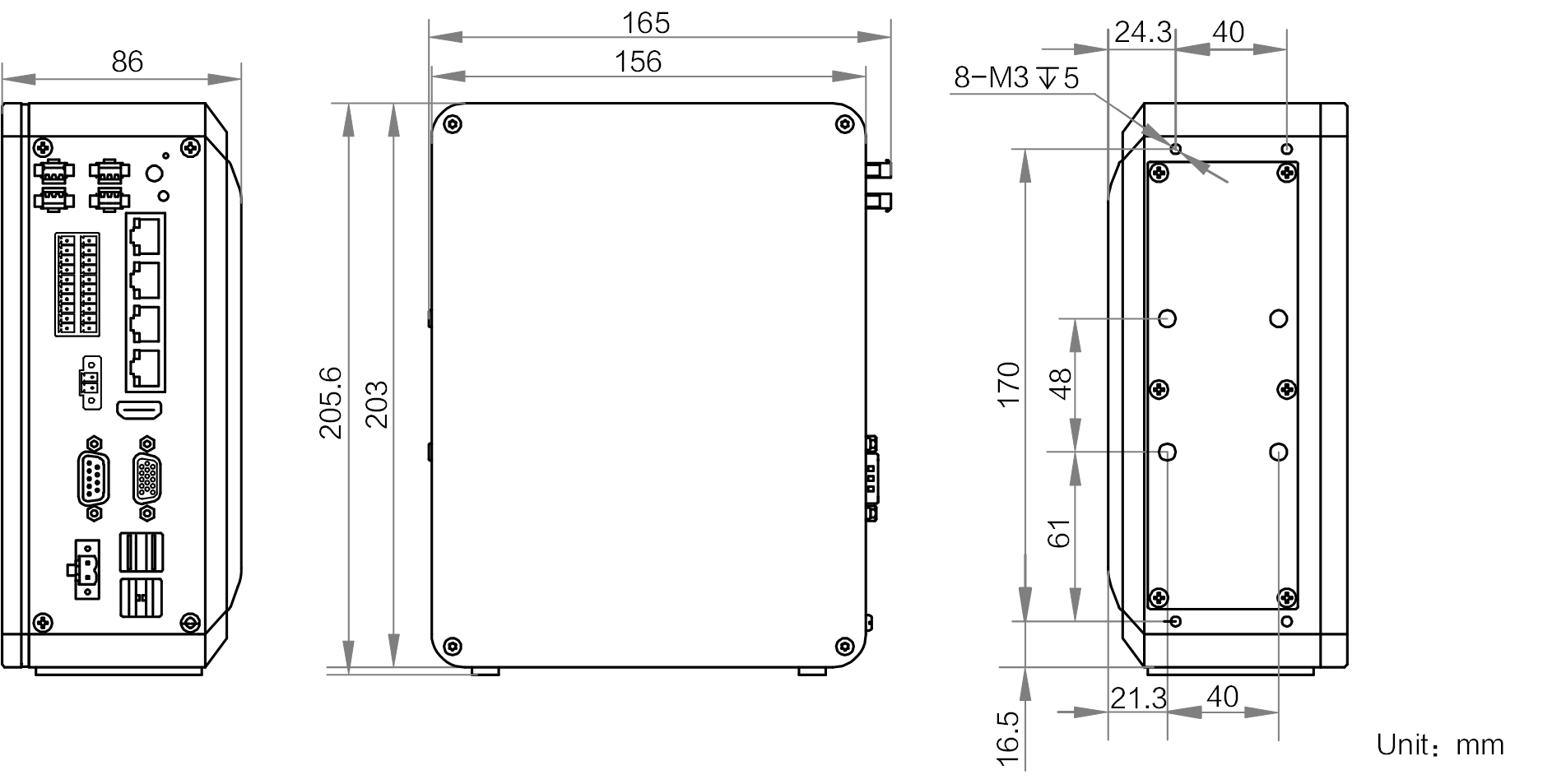

Dimensions

Overall size

Detailed parameters

Ordering Model MV-VC2143-128G40-1T
Model
Model MV-VC2143-128G40-1T
Name VC2100 Vision Controller, N97, 8GB +128G SSD+1T HDD, with Light SourceIO, support POE, no Encryption;
Performance
Processor Intel® Processor N97
Memory 8GB
Storage 128G SSD and 1T HDD
GPU Intel® UHD Graphics
Operating System Windows 10 LTSC 21H2 64 bit, inactivated
Encryption
Encryption Method None
External Interfaces
Video Output 1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support for 1920 × 1080@60Hz
Digital I/O Support for 8 optocoupler isolated inputs Supports 8 optocoupler isolated outputs
Lighting Interface 4 24V constant voltage Lighting Interfaces, controllable brightness, maximum current per channel is 3 A, and maximum total Power Consumption is 80 W. Supports externally triggered strobe and always-on mode switching
Network Interface 4 Gigabit network ports, supports PoEPower Supply1
USB Interface 2 USB2.0 Interfaces 2 USB 3.0 Interfaces
Serial Port 1 RS-232, can be switched to RS-485/RS-422
Electrical
Power Supply 24 VDC
Typical Power Consumption 71 W (Without Light Source)
Mechanical
Dimensions 165 mm × 205.6 mm × 86 mm
Weight Approximately 2 kg
Temperature Operating Temperature 0 °C ~50 °C, Storage Temperature-30°C ~ 70°C
Humidity 20%~80% RH No condensation
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
